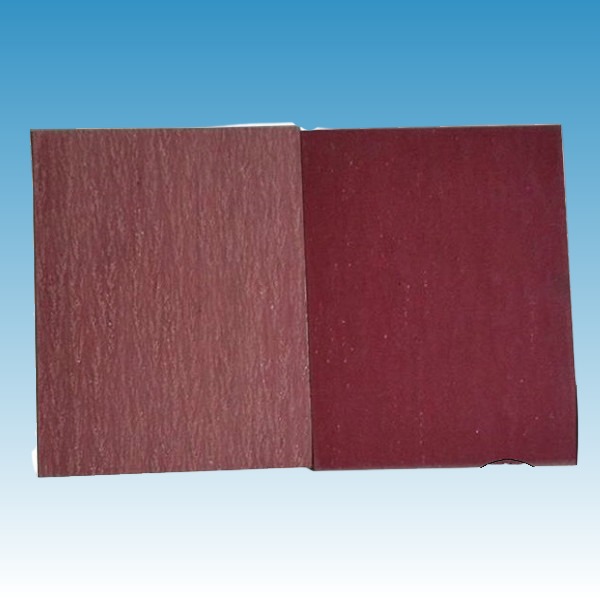

Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs

Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs
Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs
Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs
Basic Information
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: NXB150
Minimum Order Quantity: 500KGS
Price: 1.5-4 USD PER KG
Packaging Details: pallets or wooden case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200Tons per month
Get Best Price Contact Now
Detail Information
Color: Red,Green,Black Material: Non Asbestos
Application: Sealing For Industrial Equipment And Pipelines Density: 1.5 G/cm3
Compressibility: 7-17% Recovery: 40-50%
Working Temperature: 150Deg Thickness: 1.5mm - 5mm
Temperature: 200-500 Celsius Degrees Hardness: 70-80 Shore A
Feature: Wide Range Of Temperatures Oil Resistance: Good
Steam Resistance: Good Elongation At Break: 10%
Pressure: 2.0-5.0Mpa Pressure Range: Up To 150 Bar
Water Resistance: Good Usual Color: Green, Blue, Black, Red
Tensile Strength: 10 MPa Sealing Performance: High
Fluid Compatibility: Water, Oil, Gas, Steam, Etc. Width: 1m
Size: 1.5mm X 1500mm X 1500mm Water Absorption: Less Than 5%
Leakage Rate: 0.01 Cm3/min Length: 1000mm

Product Description

Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs 0

Here, you’ll find non-asbestos joint sheet gaskets available in thicknesses from 0.5mm to 5mm. A practical tip: opt for the thinnest material that fits your specific application. This choice not only reduces costs but can also boost your equipment’s overall efficiency.​
General Properties of Industrial Flat Non-Asbestos Joint Sheet Gasket​
The non-asbestos joint sheet gasket is formed by compressing aramid fiber and nitrile butadiene rubber (NBR), giving it top-tier oil resistance. It’s also perfect for scenarios involving contact with water, petrol, or natural gas.​
Thanks to these traits, these gaskets are widely used across various fields. You’ll often find them in air compressors, diesel engines, and pipelines, making them a go-to for general industrial, marine, and many other environments.​
Product Information​
This gasket is crafted from a blend of aramid fiber, non-asbestos mineral fiber, synthetic fiber, and synthetic oil-resistant rubber. Its production process includes hot-roller compression followed by vulcanization, ensuring consistent quality and long-term reliability.



Here is a table summarizing the general properties:



Property Description
Oil Resistance Very good
Suitability for Contact with Substances Water, petrol, natural gas
Product Features​
  • Exceptional Adaptability & Durability: The gasket adapts seamlessly to diverse working conditions and boasts strong durability. It delivers superior sealing to prevent leaks, resists delamination during use, and has a high yield rate—minimizing waste in both production and installation.​
  • Budget-Friendly Option: It’s a cost-effective pick for sealing gaskets and exhaust manifold materials, letting you achieve high-quality sealing without overspending.​
  • Rigorous Quality Checks: Certified by ISO9001 UKAS, the product is 100% asbestos-free, making it eco-friendly and safe for all users.​
  • Top-Tier Oil Resistance: Its excellent oil resistance extends its lifespan in oil-related applications, ensuring long-term performance.​
Product Applications​
The gasket suits multiple uses, such as:​
  • Engine: Guarantees tight engine sealing, stopping oil and gas leaks to keep engines running efficiently.​
  • Air Compressor: Maintains airtightness in air compressors, enhancing their operational performance.​
  • Gearbox: Offers reliable gearbox sealing, shielding internal parts from contaminants.​
  • Pipeline & Flange Sealing: Seals pipelines and flanges effectively, preventing fluid leaks in industrial and other systems.​
Product Sizing​
  • Thickness: Available from 0.5mm to 5.0mm, so you can pick the ideal thickness for your needs.​
  • Standard Sizes: We provide common sizes like 1500×1500mm, 1500×2000mm, 1500×4500mm, 1270×1270mm, and 1270×3810mm.​
  • Custom Sizing Options: Beyond standard sizes, we accept custom orders. Just share your exact size specs, and we’ll manufacture a gasket that fits perfectly.​
  •

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0

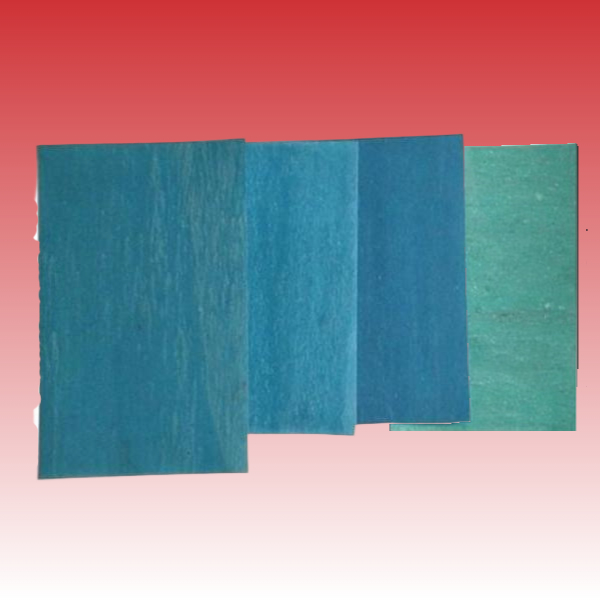

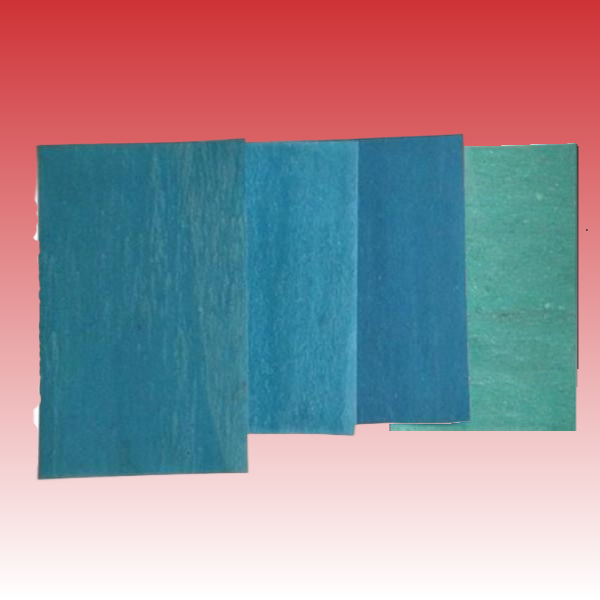

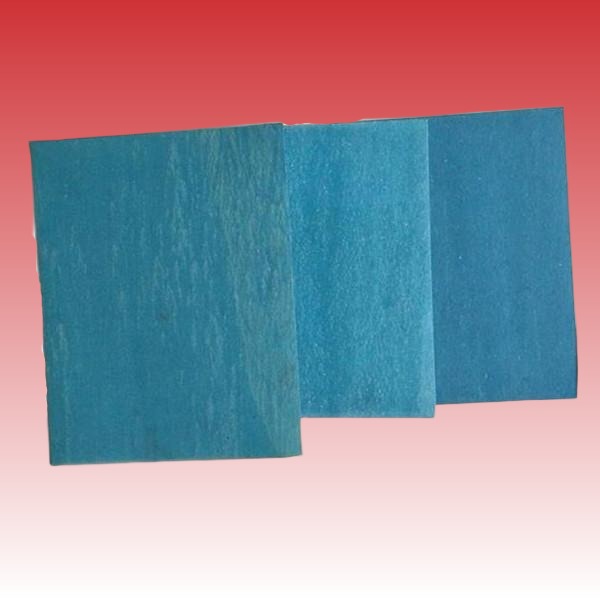

Product Shows
Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil



Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs 5

Industrial Flat Gasket Sheet – Non-Asbestos Joint Material with Injection Molded Rubber and Plastic, Suitable for Custom Non-Standard Sealing Needs 6
