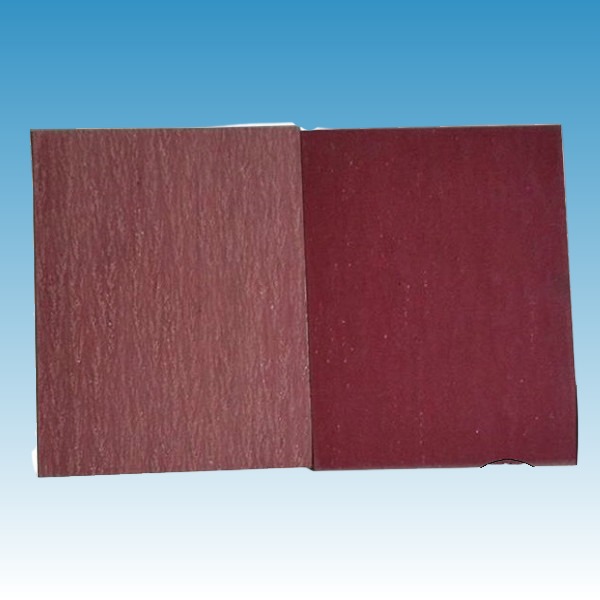

Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications

Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications
Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications
Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications
Basic Information
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: NXB150
Minimum Order Quantity: 500KGS
Price: 1.5-4 USD PER KG
Packaging Details: pallets or wooden case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200Tons per month
Get Best Price Contact Now
Detail Information
Features: Non Asbestos, High Temperature And Pressure Resistance, Good Sealing Performance, Durable Color: Gray
Material: Jointing Gasket Sheet Compressed With Aramid Firbre And NBR Application: Sealing Of Flanges, Pumps, Valves, And Other Equipment
Density: 1.6-2.0 G/cm3 Compressibility: 7-17%
Recovery: 40% Working Temperature: 150Deg
Pressure: 2.0-5.0Mpa Tensile Strength: 2000 PSI
Ph Range: 4-11 Usual Color: Green, Blue, Black, Red
Elongation At Break: ≥200% Temperature: 200-500 Celsius Degrees
Temperature Range: Up To 500°F (260°C) Sheet Size: 1000mm X 1000mm, 1500mm X 1500mm, Or Customized
Pressure Range: Up To 1500 Psi (103 Bar) Thickness: 0.5mm-6mm
Feature: Heat Resistant Chemical Resistance: Good
Flexural Strength: 15 MPa Water Absorption: Less Than 5%
Pressure Rating: 1500 PSI Sealing Performance: High
Certifications: FDA, RoHS, REACH Elongation: 15%
Fluid Resistance: Excellent

Product Description

Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications 0

Non-Asbestos Joint Sheet Gaskets (Standard/Custom Sizes), Injection-Molded Non-Standard Rubber Gaskets, Plastic Gaskets, Flat Gaskets​
This platform offers non-asbestos joint sheet gaskets with thicknesses spanning 0.5mm to 5mm. A key recommendation is to opt for the thinnest material that fulfills your specific application requirements. This approach not only boosts cost-effectiveness but also has the potential to elevate your equipment’s overall performance.​
Core Characteristics of Non-Asbestos Joint Sheet Gaskets​
Manufactured through the compression of aramid fiber and NBR, non-asbestos joint sheet gaskets boast exceptional oil resistance. They are also highly compatible with environments involving water, petrol, or natural gas exposure.​
These attributes make them a staple in diverse settings: air compressors, diesel engines, pipelines, and a wide array of general industrial and marine applications all rely on their reliable performance.



The table below outlines some of the key general properties:



Property Details
Oil Resistance Exceptionally good
Compatibility with Fluids Suitable for water, petrol, and natural gas



Product Details​
Crafted from a blend of aramid fiber, non-asbestos mineral fiber, synthetic fiber, and synthetic oil-resistant rubber, these gaskets undergo a rigorous manufacturing process. Hot-roller compression followed by vulcanization ensures superior quality and long-term durability.​
Key Advantages​
  • Robust Adaptability & Longevity: Designed to thrive in varied working conditions, these gaskets deliver exceptional sealing performance to prevent leaks. They resist delamination during use and feature a high yield rate, minimizing waste in both production and installation.​
  • Cost-Effective Sealing: Offering high-quality sealing at a competitive price, they serve as an economical choice for sealing gaskets, exhaust systems, and manifold applications.​
  • Certified Quality: With ISO9001 UKAS certification and a 100% asbestos-free composition, they guarantee environmental safety and user protection.​
  • Enhanced Oil Resistance: Their strong resistance to oil ensures an extended service life in oil-related applications.

Product Types

Based on different temperature ratings (the numbers represent peak temperatures), the products are classified into the following types:



Product Type Peak Temperature
CSNXB150 150°C
CSNXB250 250°C
CSNXB350 350°C
Application Scenarios​
These gaskets excel in multiple settings:​
  • Engines: Maintain proper sealing to prevent oil and gas leaks, preserving engine efficiency.​
  • Air Compressors: Enhance airtightness to optimize operational performance.​
  • Gearboxes: Provide reliable sealing to shield internal components from contaminants.​
  • Pipelines & Flanges: Ensure secure sealing for pipelines and flanges, preventing fluid leakage in industrial and other systems.​
Dimensions​
  • Thickness Range: 0.5mm to 5.0mm, allowing precise selection based on specific needs.​
  • Standard Sizes: Available in 1500×1500mm, 1500×2000mm, 1500×4500mm, 1270×1270mm, and 1270×3810mm.​
  • Customization Options: Beyond standard sizes, we accommodate custom dimensions. Simply provide your exact specifications, and we will manufacture gaskets tailored to your requirements.

Product Sizes

The standard thickness of the gasket sheets ranges from 0.5 to 5.0 millimeters. The available standard sizes are as follows:



Size (mm) Dimensions
1500*1500 1500mm in length and 1500mm in width
1500*2000 1500mm in length and 2000mm in width
1500*4500 1500mm in length and 4500mm in width
1270*1270 1270mm in length and 1270mm in width
1270*3810 1270mm in length and 3810mm in width



Additionally, we offer custom - sizing services to meet the unique requirements of our clients.

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0

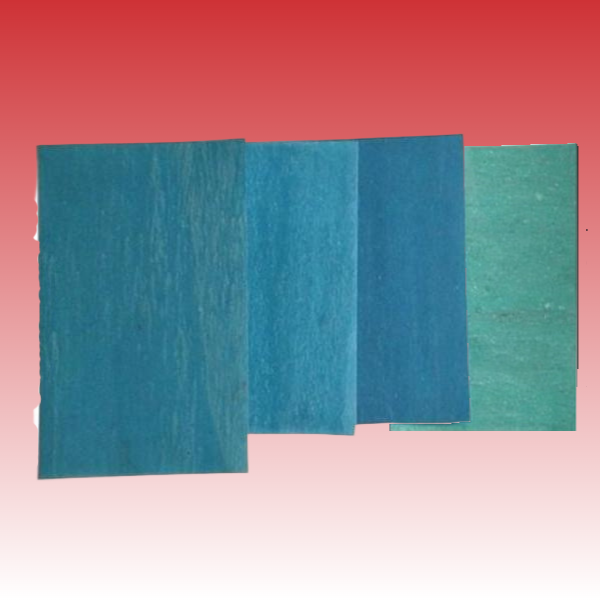

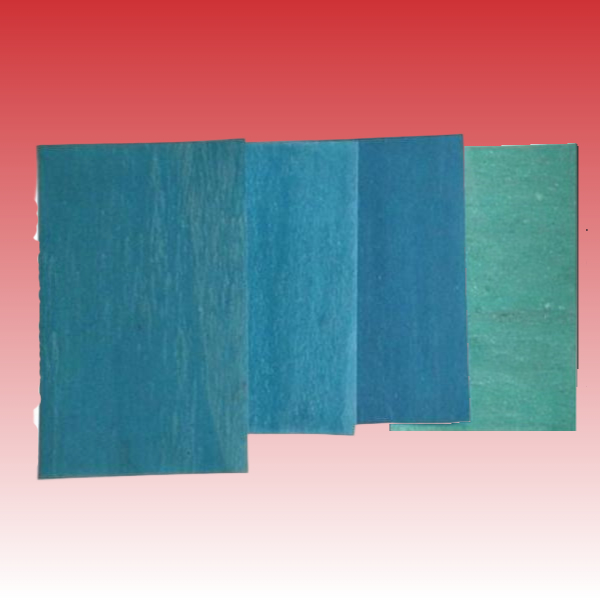

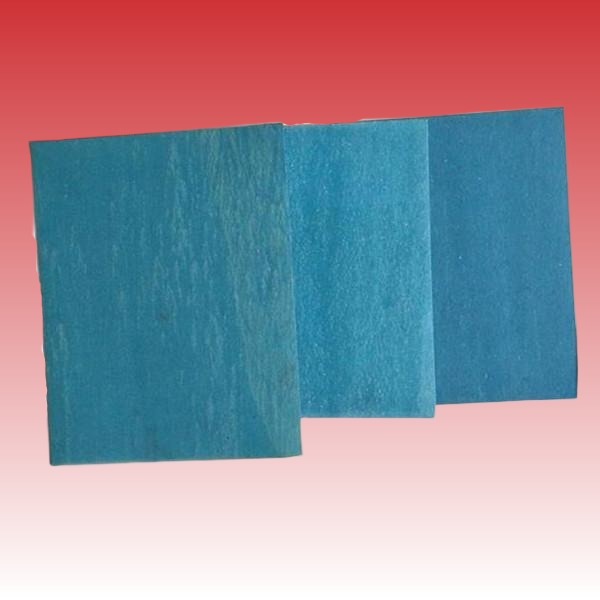

Product Shows

Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil



Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications 5

Durable Flat Gasket Sheets – Non-Asbestos Joint Material Combined with Rubber and Plastic Injection, Ideal for Custom Non-Standard Seal Applications 6
