Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert

Basic Information
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: CS2080T
Minimum Order Quantity: 500KGS
Price: USD 2.15-3.0 PER KG
Packaging Details: pallets or wooden case
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100Tons per month
Detail Information
Grade: Industrial Grade Type: Flexible Sheet,Composite Sheet,Reinforced Sheet
Application: Gaskets C Content (%): 99.9%,99%
Thickness: Customers' Demand,1.5MM-5.0MM Material: High Purity Graphtite,Graphite
Density: 1.0~1.5g/cm3 Color: Black
Hardness: 80 Shore A Product Name: Graphite Sheet
Shape: Can Be Customized Sample: Availble
Width: ≤1500 Mm
Highlight:

Reinfoced Exhaust Gasket Sheet

,

Double Metal Graphite Gasket Sheet

,

Graphite Insert Exhaust Gasket Sheet


Product Description

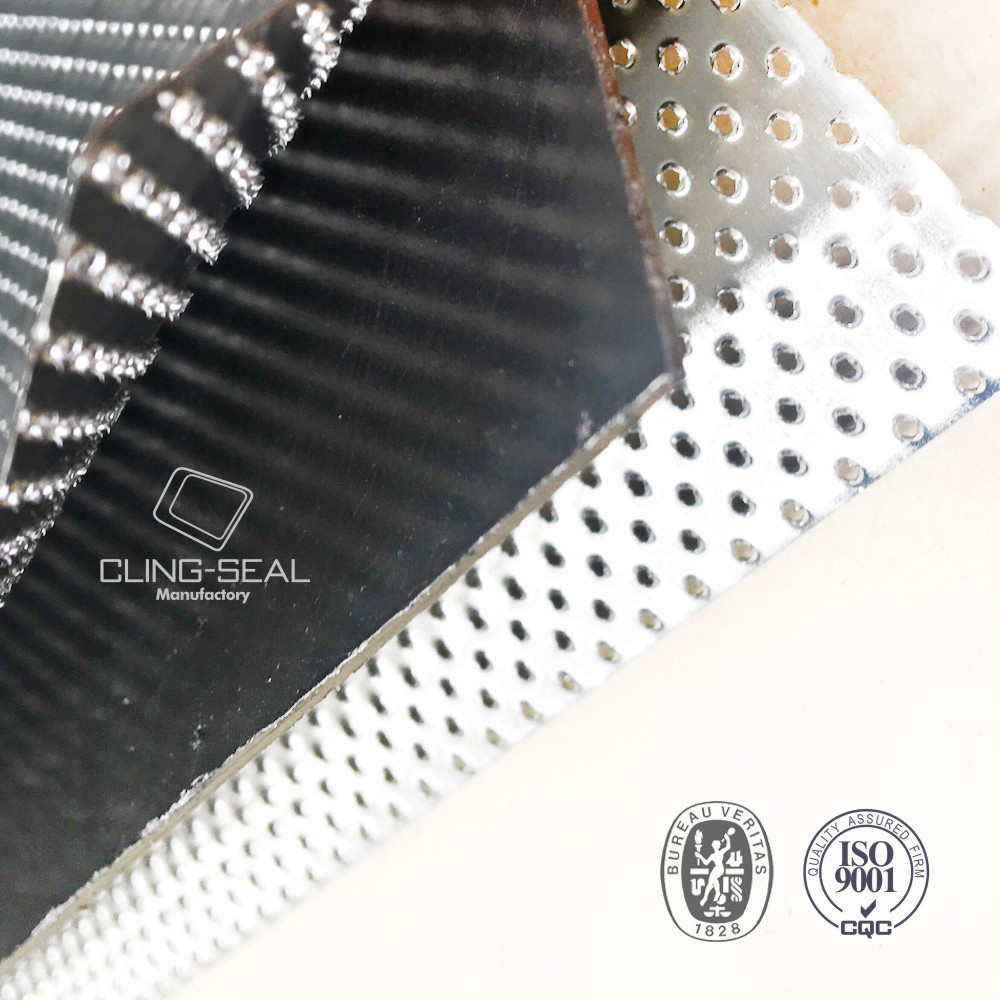

Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert 0

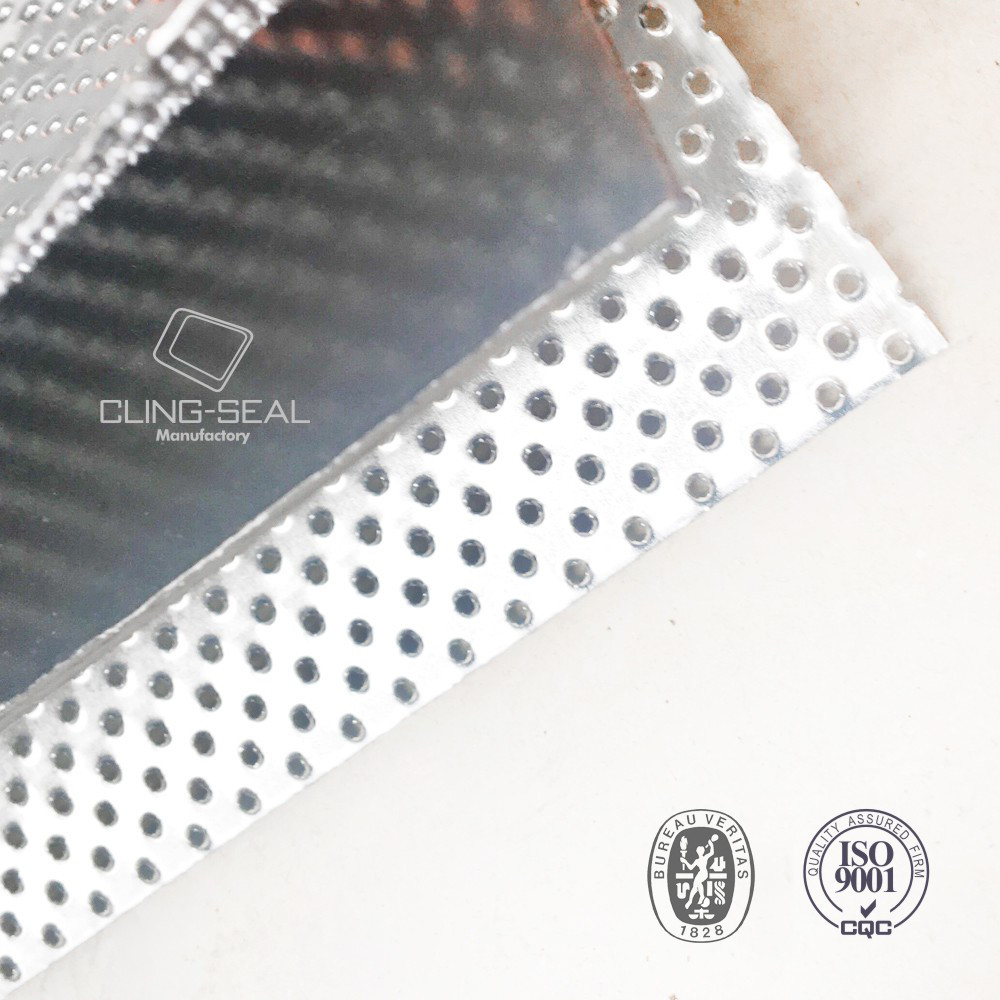

 Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert 1



















Product Description

From this page you can purchase exhaust gasket sheet from 1.0 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of exhaust gasket sheet is made from two sides 0.2-0.25mm tanged tinplate with flexible graphite sheet insert. It generally used in high temperature and high pressure environments, and commonly finds applications in steam exhaust applications.
If you can't find what you're looking for, of require a bespoke material, please do not hesitate to contact us.
Is exhaust gasket sheet the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector, or our guide to rubbers. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.


Product Formation:
It made from two sides perforated metal with flexible graphite sheet insert. Metal usual be 0.2-0.25mm carbon steel, called tinplate. It also can be ss201, 304,316. Carbon content are 95,97,98,99% for selected.

Product Features:
·Good adaptability and durability, good sealing, no delamination, high yield
·An economical sealing gasket and exhaust, manifold gasket material
·Good oil-resistance, High temperature and high pressure

Product Application:
It many suitable for high temperature and high pressure operate environment. Mostly they are raw material of exhaust gasket and manifold gasket

Product Size:
Thickness-------1.0-6.0mm Notice: While thicker, it can be 3+2 type(Product section from top to bottom in order are Metal-Paper-Metal-Paper-Metal)
Size---500*500mm;500*1000mm;500*1500mm;1000*1000mm;1000*1500mm
Size can be customized by clients.

Physical Property:

Item
Compressibility % 8-17
Recovery % ≥35
150ºC,At ASTM 3#Oil for 5hours Weight Increas % ≤30
Thickness Increas % ≤20
At 21ºC~30ºC,ASTM B Fuel for 5hours Weight Increas % ≤30
Thickness Increas % ≤20

Product Technical Details
As a general rule, exhaust gasket sheet is:
• Good for use with steam
• Good for high temperature
• Good with high pressure

Product Shows

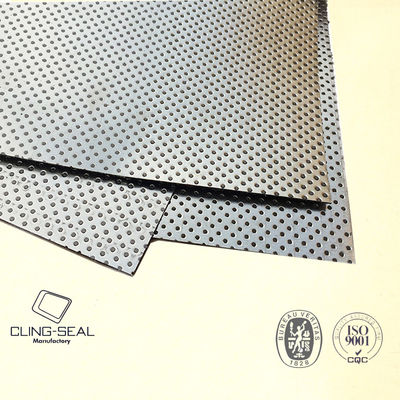

Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert 2

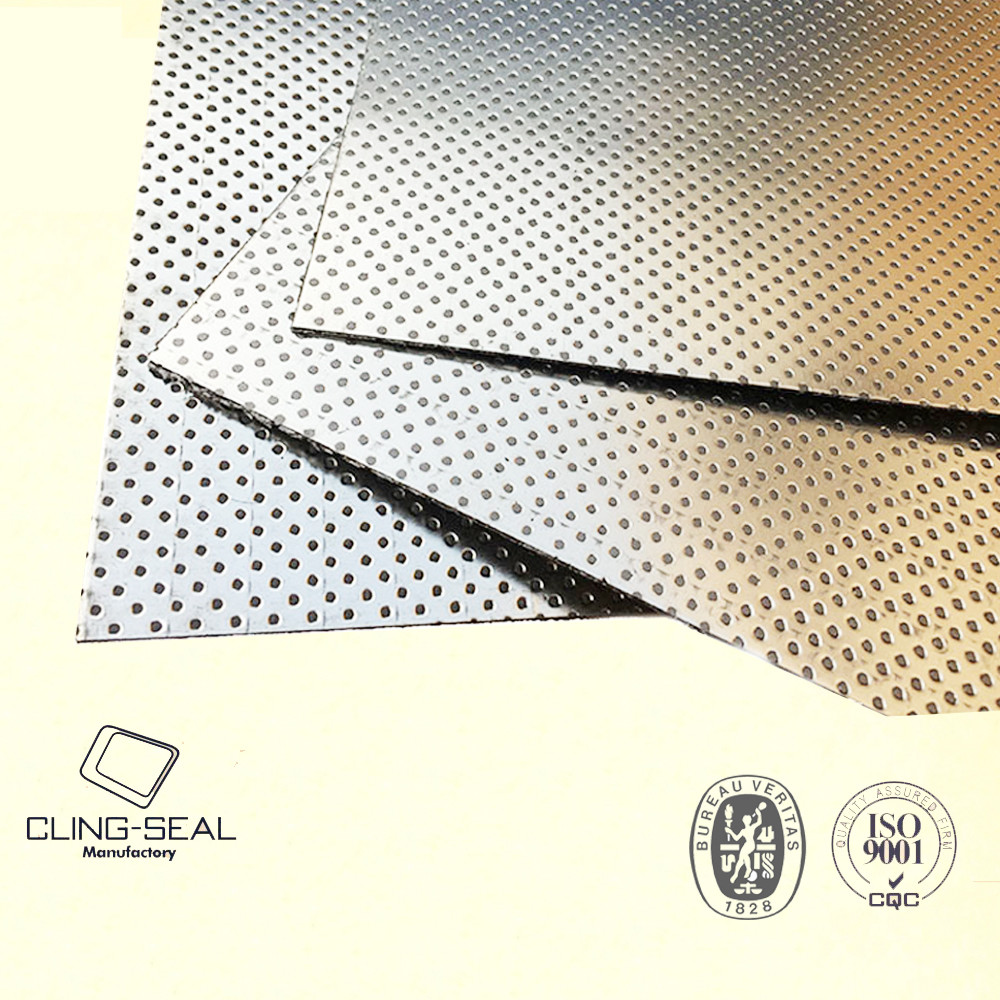

Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert 3

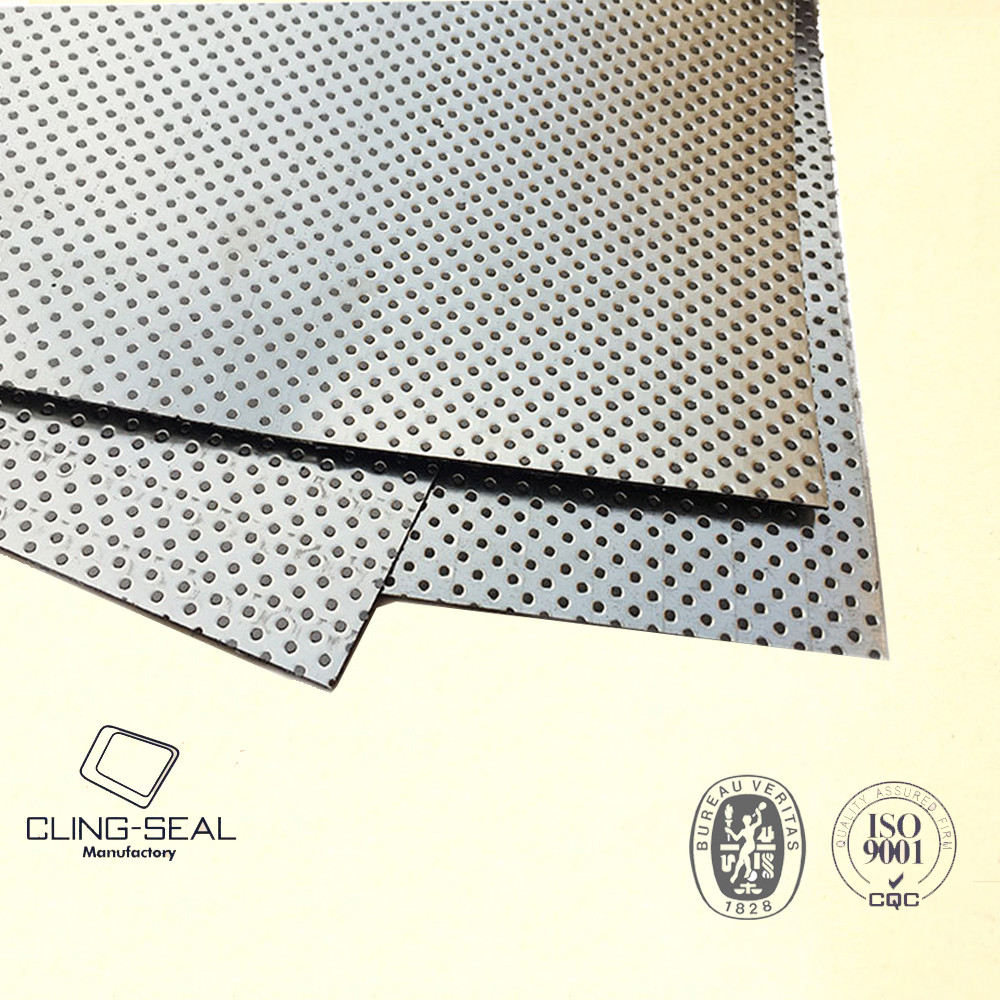

Double Metal Reinfoced Exhaust Gasket Sheet with Graphite Insert 4
