Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet

Basic Information
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: CSR70
Minimum Order Quantity: 500KG
Price: 1.60-4.80 USD PER KG
Packaging Details: Pallets or wooden case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200Tons per month
Detail Information
Material: Non Asbestos Shape: Sheet
Standard Or Nonstandard: Customized Color: Black,Gray Brown OR Any
Thickness: 0.5-3.0mm For Single Sheet Temperature: -25-200℃
Application: Used To Make Gasket As Sealing Material Working Temperature: 150 /-50 ~ 100℃
Type: Non Asbestos Gasket Sheet
Highlight:

Non Asbestos Paper Gasket Sheet

,

Gasket Non Asbestos Sheet

,

Beater Latex Sheet


Product Description

Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet 0Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet 1



Product Description

Black Color Non Asbestos Paper Gasket Sheet Beater Latex Sheet

From this page you can purchase non asbestos paper gasket sheet from 0.5 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of asbestos paper gasket sheet beater with high quality asbestos fiber and latex rubber. It generally have very good oil resistant properties. They are also good for use in applications that put them into contact with water, petrol, or natural gas.
As such, non-asbestos paper gasket are used in air compressors, diesel engines, pipelines, and many other general industrial and marine environments.
If you can't find what you are looking for, or require a bespoke material, please do not hesitate to contact us.
Is Non-Asbestos paper gasket sheet the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.
Product Formation:

It made from latex rubber,asbestos fibre and inorganic filler, adding chemical additives accordingly, it take beater methods.
Product Features:

· Good adaptability and durability, good sealing, no delamination, high yield
· Proved by ISO 9001 UKAS
· Can coated Anti-sticking
· An economical sealing gasket and exhaust, manifold gasket material
· It suitable for make Reinforced or Unreinforced gasket sheet
· Good for use with petrol

Product Application:

It is widely used to make the cylinder head gasket's materia,engine oil pan gasket,and is used as a sealing gasket material, and is suitable for the special seal of various water,oil mediums

Product Size:

Thickness-------0.5-3.0mm

Size---1100*1200mm

Physical Property:

ItemData
Temperature150-250Deg.
Density1.45-1.6 g/cm³
Tensile Strength2.5 Mpa
Compressibility40±7 ≥%
Compressibility20 %
Stress Relaxation30 %
In 150±2ºC,20# Aviation Fuel for 30miOil Absorption Rate 30%
Thickness Increase 12%
In 15-30ºCWater for 5hoursThickness Increase 12%

Product Shows
Product Technical Details
As a general rule, non asbestos gasket sheet is:
• Good for use with oil
• Good ozone resistance
• Good with natural gas

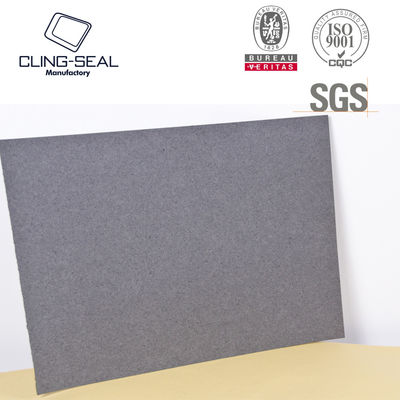

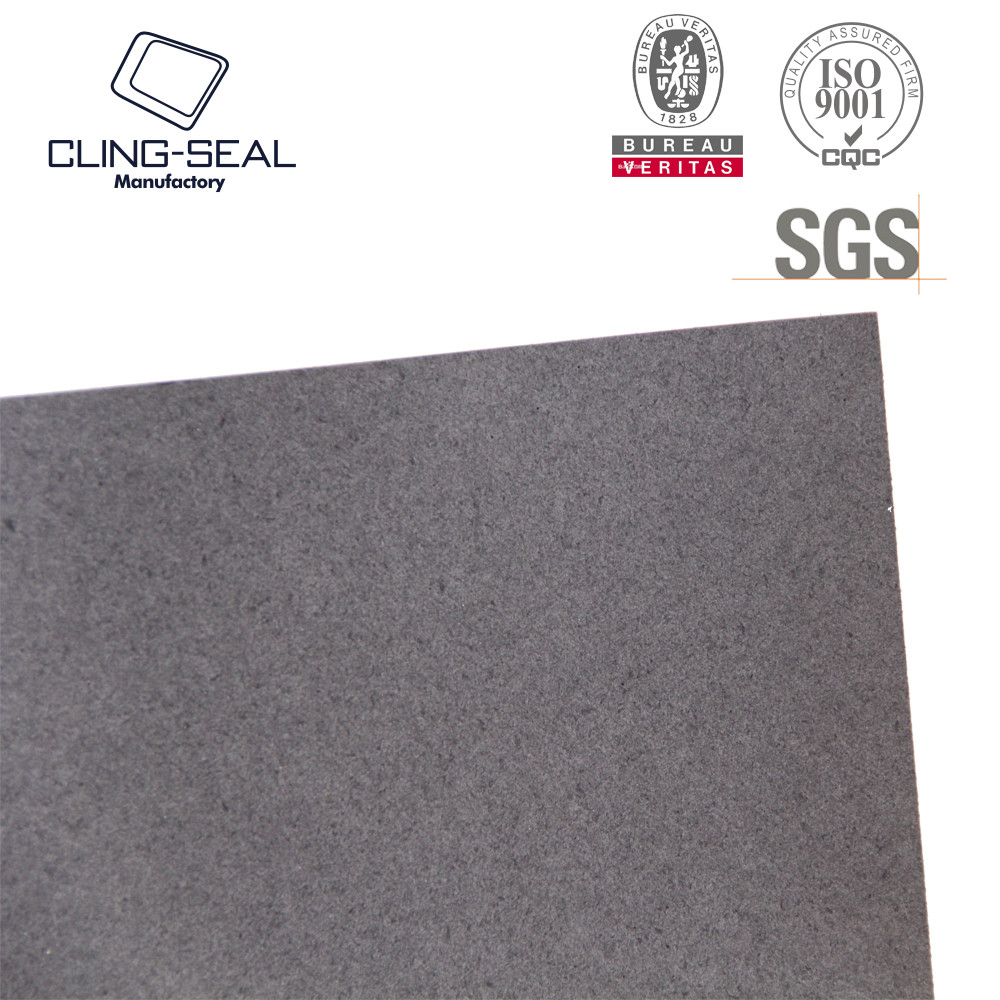

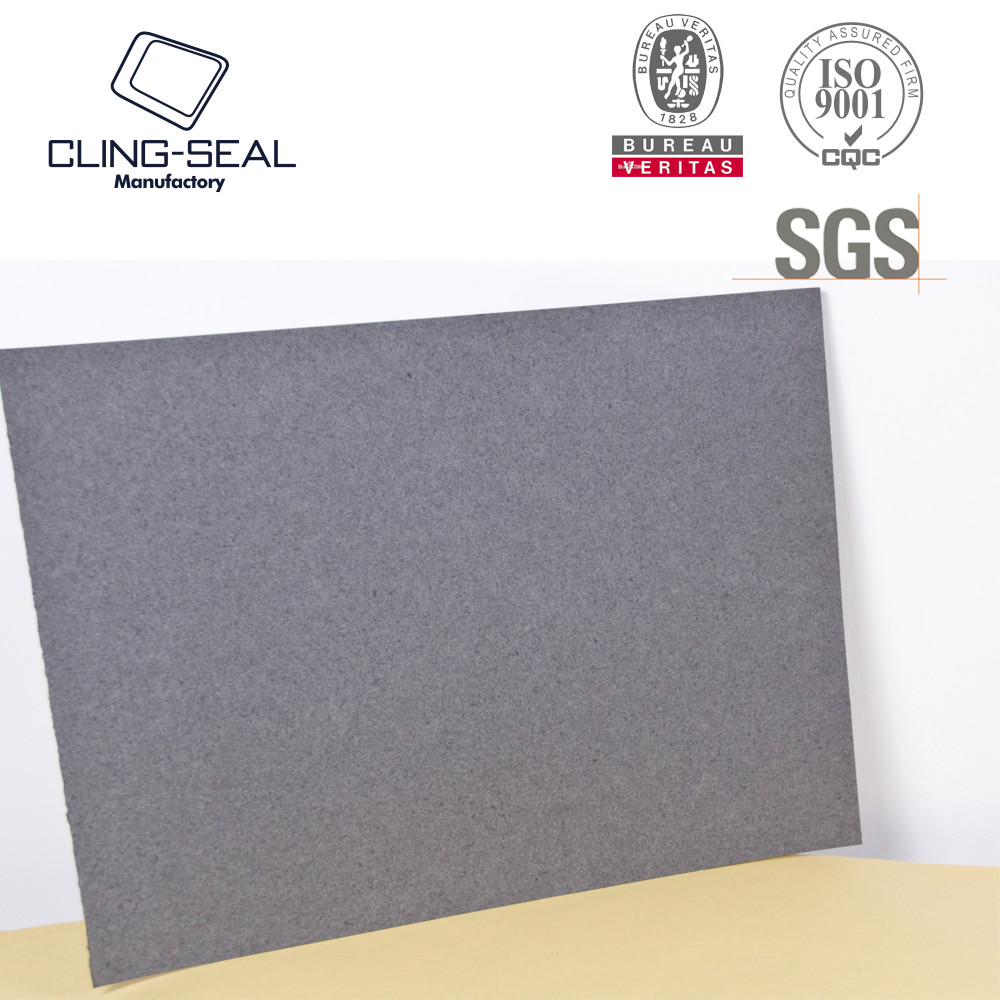

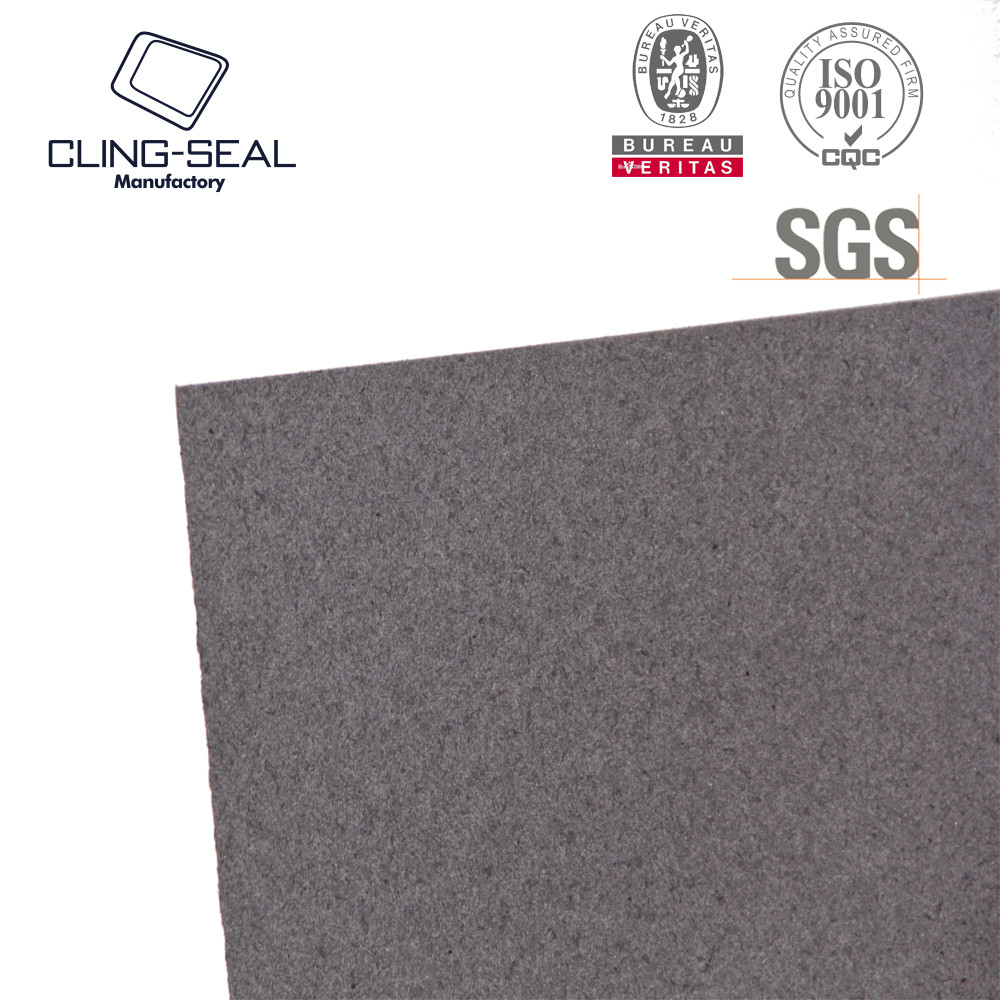

Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet 2

Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet 3

Black Color Gasket Non Asbestos Paper Gasket Sheet Beater Latex Sheet 4
