Oxidation Resistant Flexible Graphite Sheet For Automotive Exhaust Systems

Basic Information
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: CSG80
Minimum Order Quantity: 500kg
Price: 2.2USD PER KG
Packaging Details: pallet/wooden case
Delivery Time: 20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500Tons per month
Detail Information
Grade: Industrial Grade C Content (%): 99.9%
Application: Gaskets Type: Flexible Sheet
Thickness: Tailored Dimensions/Shapes Material: High-pure Graphite,Graphite,
Machinability: Ease Of Cutting/Shaping Oxidation Resistance: High - Temperature Oxidation Resistance
Highlight:

Oxidation Resistant Flexible Graphite Sheet

,

Automotive Exhaust Systems Flexible Graphite Sheet

,

Flexible Graphite Sheet Material


Product Description

Products Description


his advanced material category encompasses oxidation-resistant graphite sheets, foils, tapes, and strips, engineered to withstand oxidative degradation while maintaining flexibility.

Manufacturing Innovation
Natural graphite undergoes acid intercalation followed by rapid thermal expansion (900-1200°C), creating vermiform expanded graphite with a porous density of 0.0032g/cm³. The oxidation-resistant variant incorporates proprietary antioxidant treatments during calendaring, eliminating binder dependency while enhancing air stability.

Performance Advantages

  • Oxidative Stability: Withstands continuous operation at 450°C in oxygen-rich environments (vs. 300°C standard grades)

  • Multi-Environmental Resistance:

    • Chemical: Resists acidic/alkaline corrosion (pH 0-14)

    • Thermal: Maintains integrity from -240°C to +2800°C (intermittent)

    • Mechanical: 90% compression recovery after 10,000 cycles

  • Hybrid Compatibility: Bonds with SUS304/Inconel sheets via diffusion welding for reinforced composites

Industrial Implementation

  1. High-Temperature Sealing: Oxidation-resistant packing rings for steelmaking furnace doors & gas turbine flanges

  2. Aerospace Thermal Management: Lightweight gaskets in rocket engine fuel lines and re-entry vehicle insulation

  3. Automotive Exhaust Systems: Custom-shaped composite gaskets for turbocharger housings and EGR valves

  4. Semiconductor Manufacturing: Ultra-clean seals in CVD chamber assemblies requiring oxidation control

Technical Specifications

Parameter Coil Plate
Width Range 1000/1500mm 1000/1500mm
Thickness 0.15-1.0mm 1.0-5.0mm
Density 0.8-1.3g/cm³ 0.8-1.3g/cm³
Oxidation Limit 450°C (continuous) 500°C (intermittent)

Customization Options

  • Anti-oxidation coatings (SiC/Al₂O₃ nano-layer)

  • Pre-cut gasket patterns with laser precision

  • Multi-layer laminated structures with alloy meshes

Designed for extreme environments requiring simultaneous oxidation resistance and thermal management, this material series meets ASTM F104 Class 3 and DIN 28091-2 standards, offering 3X lifespan improvement over conventional graphite seals in oxidative conditions.

Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3
<0.4 ±0.10
±0.05
0.4 ±0.07
Tensile Strength MPa 3.2 4.5 5.0
Compression Ratio % 35~55
Rebound Rate % 9 11 12
Stress relaxation rate % 10
Ash % 6.0 3.0 1.0
Heat loss on ignation % 450ºC 1.0 0.5
600ºC 20 15

Sulphur content
1500ppm 1000ppm 600ppm

Chloride content
100ppm 50ppm 20ppm

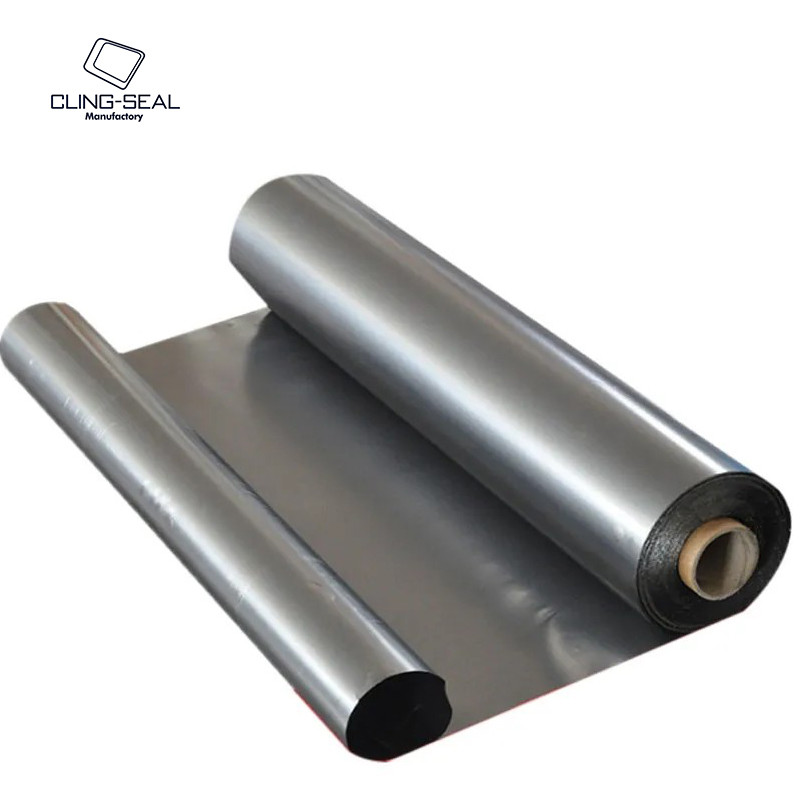

Oxidation Resistant Flexible Graphite Sheet For Automotive Exhaust Systems 0

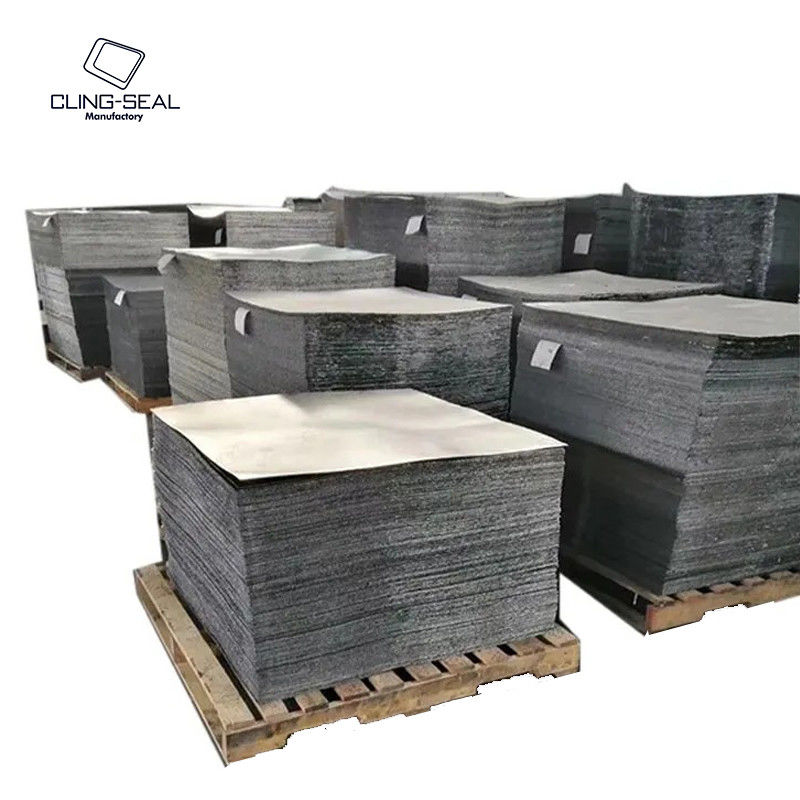

Oxidation Resistant Flexible Graphite Sheet For Automotive Exhaust Systems 1

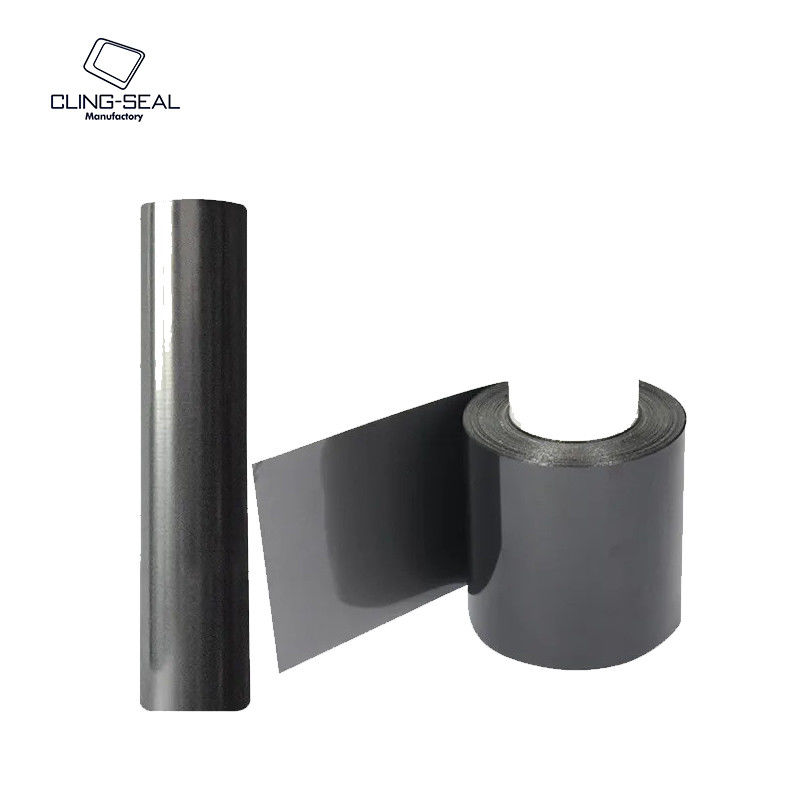

Oxidation Resistant Flexible Graphite Sheet For Automotive Exhaust Systems 2
