Detail Information

Grade:	Industrial Grade	Type:	Flexible Sheet
Application:	Gaskets	C Content (%):	99.9%
Thickness:	Customers' Demand	Material:	Graphite,High Pure Graphite
Industry Application:	Oil & Gas, Chemical, Power	Machinability:	Ease Of Cutting/Shaping
Customization:	Tailored Dimensions/Shapes
Highlight:	Custom Graphite Gasket Service , Radiation Resistant Graphite Gasket , Industrial Graphite Gasket Service

Product Description

Online Custom Graphite Gasket Service

Products Description

Instant Custom Graphite Gasket Solutions

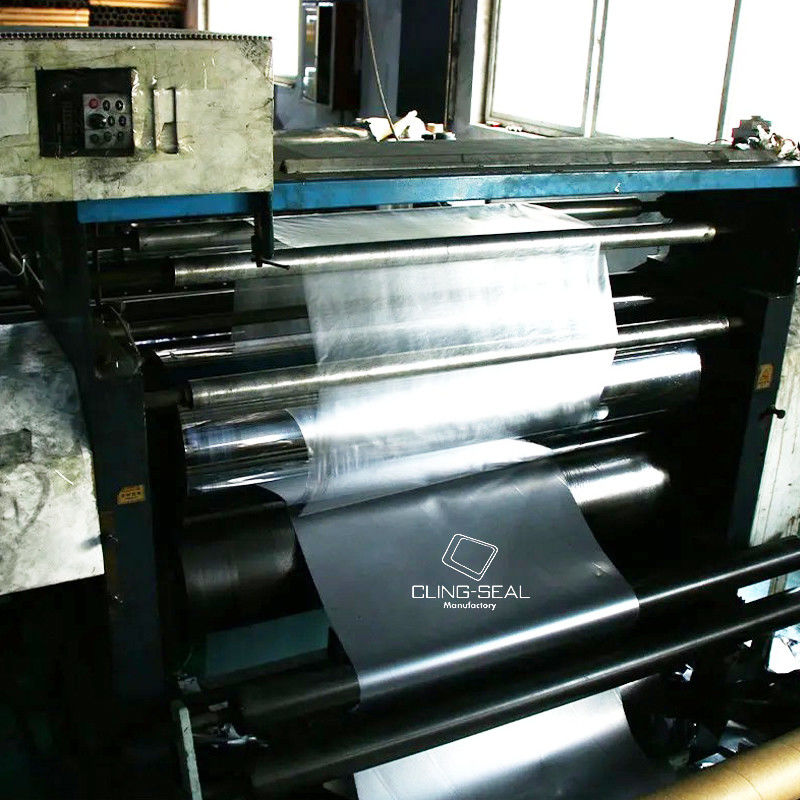

Our online platform offers tailor-made graphite-based sealing solutions including: flexible sheets, foils, papers, tapes, and strips. These materials are produced by intercalating natural graphite flakes with chemical agents, followed by thermal expansion to create worm-like structures (density ≈0.003g/cm³). The binder-free expanded graphite is then rolled into coils, delivering:

99%+ purity
Corrosion/radiation resistance
Extreme temperature stability (-200°C to +650°C)
Compression recovery up to 40%
Self-lubricating performance
Gas-tight sealing

Online Customization Features:

Real-time design quoting system
CAD file upload for precision cutting
Material selection wizard (pure/graphite-metal composite)
Thickness calculator (0.15-5.0mm)

Industrial Applications:

Pump/valve sealing systems
High-temperature insulation components
Custom-shaped gaskets for energy sector
Automotive engine seals

Service Advantages:

24/7 online ordering portal
Rapid prototyping (48-hour turnaround)
Free design optimization
Bulk pricing discounts

Standard Product Parameters:

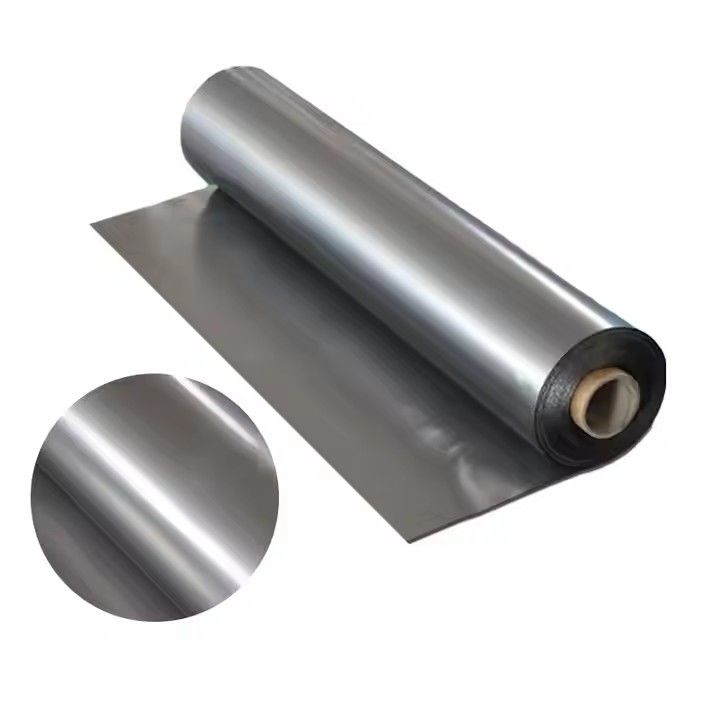

Roll Width: 1000mm / 1500mm (custom widths available)
Coil Length: 30m / 50m / 80m (cut-to-size service)

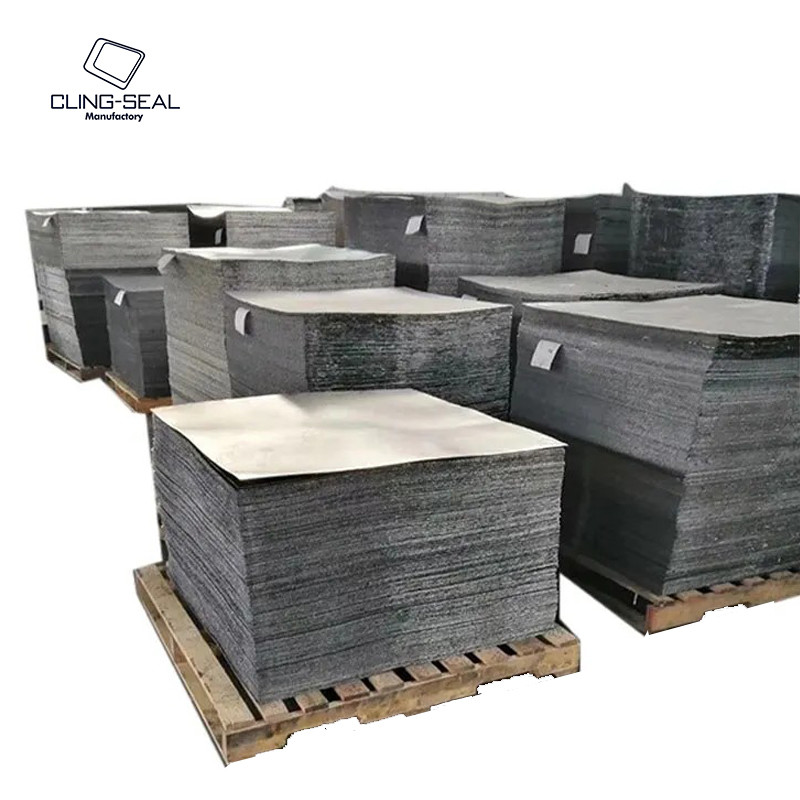

Sheet Size: 1000x1000mm / 1500x1500mm
Density Range: 0.8-1.25g/cm³
Finish Options: Smooth / Textured / Metal-clad

Item	Standard Value
C concentration	99%
S concentration	<1000ppm
chlorine concentration	<45ppm
tensile strength	4.5MPa
compressibility	>40%
recovery	>10%
Temperature	-200ºC-600ºC
Pressure	20MPa
Terence of Thickness	-0.04mm~+0.04mm
Terence of Dimension	In accordance with your Gasket size
Terence of Density	-0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999

Mechanical Data		Qualified product	Top Grade	Superior Grade
Density Tolerance g/cm3	<0.4	±0.10	±0.05
	≥0.4	±0.07
Tensile Strength MPa		≥3.2	≥4.5	≥5.0
Compression Ratio %		35~55
Rebound Rate %		≥9	≥11	≥12
Stress relaxation rate %		≤10
Ash %		≤6.0	≤3.0	≤1.0
Heat loss on ignation %	450ºC	≤1.0		≤0.5
	600ºC	≤20		≤15
Sulphur content		≤1500ppm	≤1000ppm	≤600ppm
Chloride content		≤100ppm	≤50ppm	≤20ppm

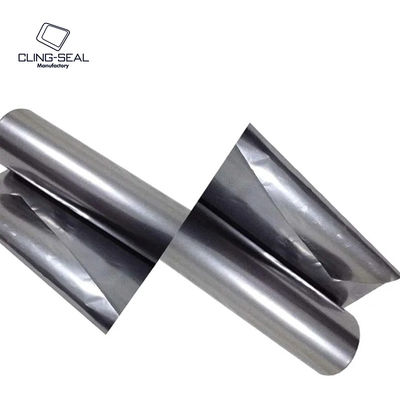

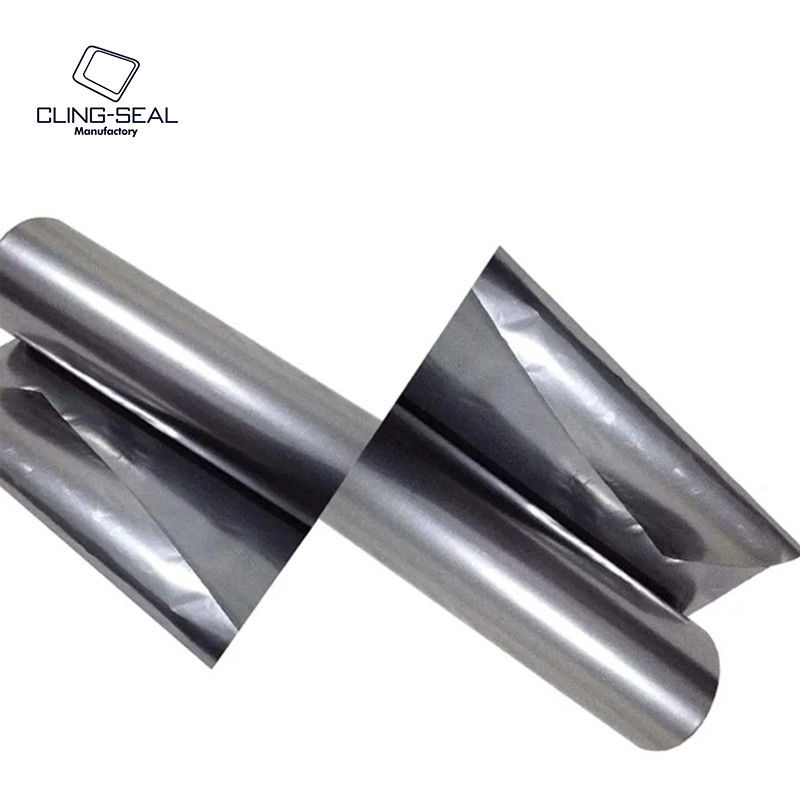

Industrial Custom Graphite Gasket Service Radiation Resistant 0

Industrial Custom Graphite Gasket Service Radiation Resistant 1

Industrial Custom Graphite Gasket Service Radiation Resistant 2

Tag:

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	CSG80

Minimum Order Quantity:	500kg
Price:	2.2USD PER KG
Packaging Details:	pallet/wooden case
Delivery Time:	20 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500Tons per month
