High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines

quality High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines factory
quality High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines factory
quality High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines factory
quality High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines factory
quality High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines factory
Product Specification
Place of Origin: CHINA
Brand Name: clingseal
Certification: ISO,SGS
Model Number: CS2070T
Minimum Order Quantity: 500KGS
Price: USD 2.15-3.0 PER KG
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100Tons per month
Product Details
Highlight:

Double-Sided Metal Reinforced Gasket Sheet

,

Non-Asbestos Reinforced Gasket Sheet
Standard: ISO, JIS, ASTM, AS, EN, GB
Technique: Hot- Rolled
Feature: Smooth And Flat
Use: Metal Roofing Building Steel Material
Steel Grade: 200S,300S,400S
Service: 24 Hours Online
Trade Term: FOB , CFR , CIF, CNF , EXW
Price Term: CIF CFR FOB EX-WORK
Technology: Cold Rolled.hot Rolled
Protection: PVC, PE Film White Or Blue, Laser Film
Packing: Standard Export Packing Or As Per Customer's Request
Thinckness: 0.3mm-12m
Tensile Strength: 10 MPa
Edge: Mill Edge Or Slit Edge
Corrosion Resistance: High
Flexural Strength: 15 MPa
Application: Sealing For Industrial Equipment And Pipelines
Quantity Tolerance: ±10%
Leakage Rate: 0.01 Cm3/min
Coil Id: 508mm/610mm
Custom Sizes: Available Upon Request
Certifications: FDA, RoHS, REACH
Density: 1.5 G/cm3
Temperature Resistance: Up To 500℃
Surface Treatment: 2B/BA/No.4/HL/8K/Embossed
Pressure: 2.0-5.0Mpa
Pressure Rating: 1500 PSI
Compressibility: 7-17%
Product Description

High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants, and Heavy-Duty Diesel Engines – Durable Sealing Solution Widely

In the oil & gas industry, petrochemical plants, and heavy-duty diesel engine systems, sealing components grapple with extreme temperatures, intense pressure, and prolonged exposure to oils and fuels. Leaks from substandard seals trigger costly downtime and compliance risks. Our High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet is engineered to tackle these challenges, delivering reliable performance in harsh industrial environments.

1. Core Structure: Strength Meets Sealing Precision

The gasket sheet integrates dual functional layers for balanced performance:

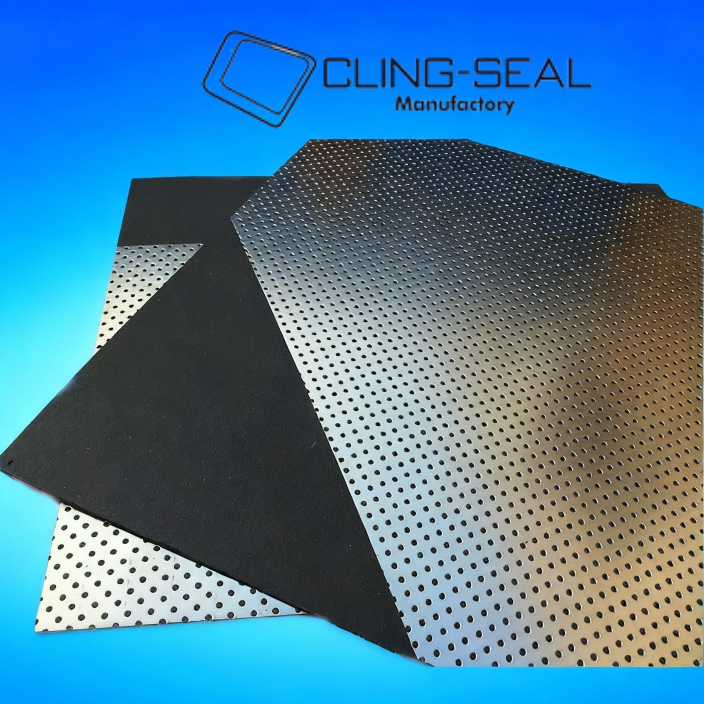

  • Double-Sided Metal Reinforcement: It features 0.2-0.25mm thick tanged (perforated) metal sheets on both sides. Standard carbon steel (tinplate) provides robust mechanical support, while SS201, 304, 316 stainless steel variants cater to corrosive settings like coastal oil facilities or petrochemical plants.
  • Non-Asbestos Sealing Core: The middle layer is 100% non-asbestos beater sheet, avoiding asbestos-related health risks. This core conforms tightly to flange surfaces, withstanding thermal and pressure fluctuations common in target industries.

2. Key Advantages: Built for Industrial Rigor

Tailored to high-intensity scenarios, the gasket sheet offers standout benefits:
  • Reliable Performance: It boasts strong adaptability to irregular flanges, long-term durability, and zero delamination, with a high yield rate ensuring consistent quality.
  • Cost-Effective: As an economical option, it balances performance and affordability—ideal for large-scale applications like oil pipelines and diesel engine manifolds.
  • Certified Safety: ISO 9001 UKAS-certified and 100% non-asbestos, it aligns with global environmental and occupational health standards, reducing user liability.
  • Extreme Resistance: Designed for high-temperature, high-pressure environments, it excels in steam systems and resists oils/fuels—critical for petrochemical and heavy-engine use.

3. Proven Physical Properties

Rigorous testing validates its performance, with key metrics meeting industry standards:
Test Item Unit Specification
Compressibility % 8-17
Recovery % ≥35
Weight Increase (150ºC, ASTM 3# Oil, 5h) % ≤30
Thickness Increase (150ºC, ASTM 3# Oil, 5h) % ≤20
Weight Increase (21ºC~30ºC, ASTM B Fuel, 5h) % ≤30
Thickness Increase (21ºC~30ºC, ASTM B Fuel, 5h) % ≤20

4. Versatile Specifications

Flexible options adapt to diverse industrial needs:
  • Thickness: 1.0-6.0mm. For thicker requirements, a 3+2 layered structure (Metal-Paper-Metal-Paper-Metal) enhances sealing capacity. Tip: Select the thinnest suitable thickness for optimal performance.
  • Sizes: Standard dimensions include 500×500mm, 500×1000mm, 500×1500mm, 1000×1000mm, 1000×1500mm. Custom sizing is available for non-standard equipment.

5. Target Applications

As a core raw material for precision gaskets, it serves key industries:
  • Oil & Gas: Ideal for steam exhaust systems, pipeline flanges, and wellhead equipment, withstanding high-pressure steam and crude oil.
  • Petrochemical: Fits reactor seals, distillation columns, and fuel processing gear, resisting chemical corrosion and extreme temps.

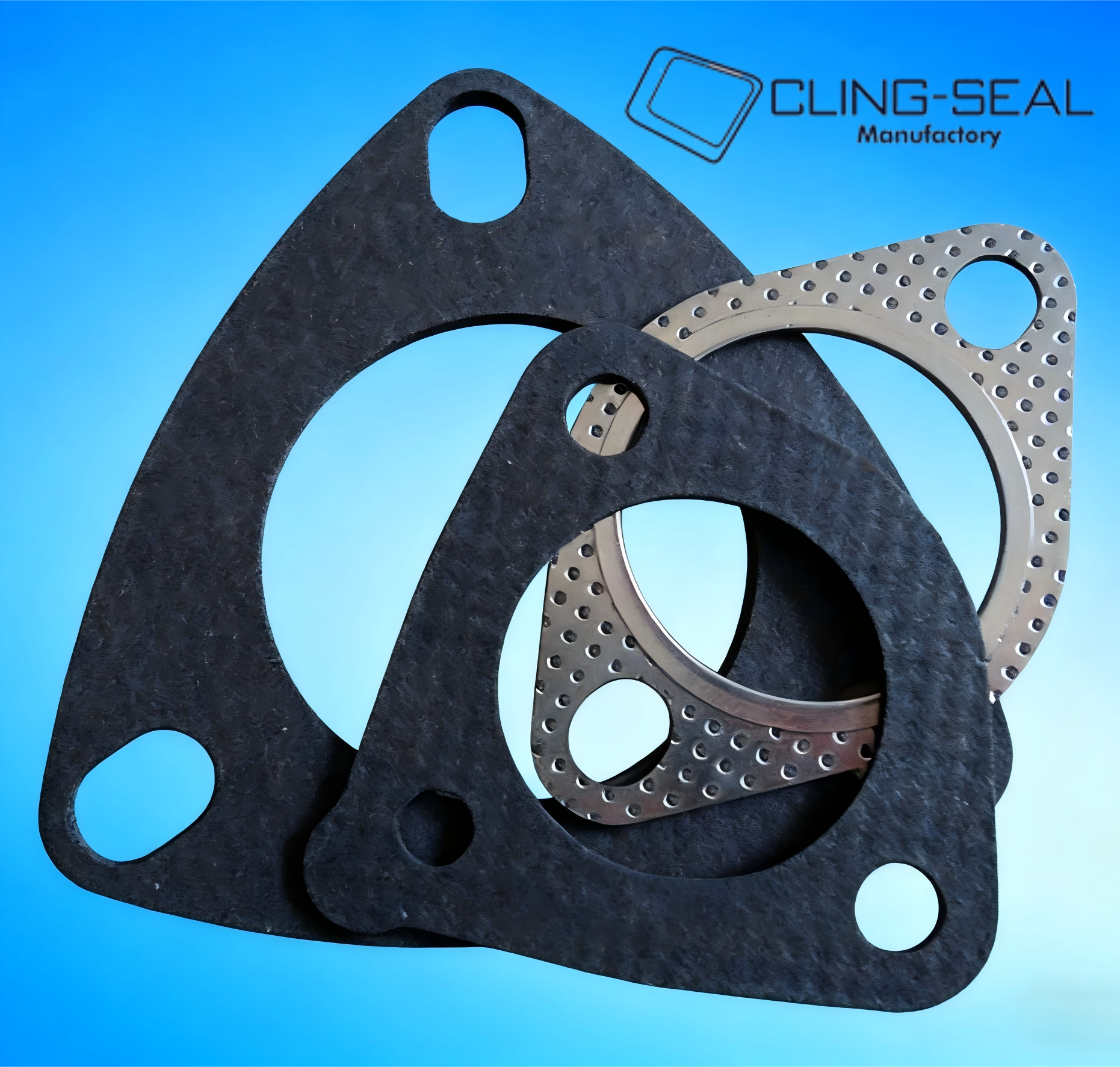

  • Heavy-Duty Diesel Engines: Used in exhaust and manifold gaskets for trucks, construction machinery, and generators, ensuring leak-proof operation under load.

6. Expert Support for Your Needs

Unsure about suitability? We offer tailored guidance:
  • Use our online gasket material selector or rubber guide for self-reference.
  • Download detailed specs via our platform link.
  • Contact our technical team for personalized advice—we handle bespoke material and size requests.
For industries where sealing reliability impacts operational efficiency, our gasket sheet delivers the durability, compliance, and performance you can trust.
High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines 0High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines 1
High-Temperature Non-Asbestos Double-Sided Metal Reinforced Gasket Sheet for Oil & Gas Industry, Petrochemical Plants and Heavy-Duty Diesel Engines 2
