Industrial-Grade Non-Asbestos Sealing Sheets for Hydrocarbon Service, Compatible With Crude Oil, Natural Gas & Steam Systems, Safe & Asbestos-Free for Oilfield Use
Product Specification
Place of Origin:
CHINA
Brand Name:
CLINGSEAL
Certification:
ISO,SGS
Model Number:
NXB150
Minimum Order Quantity:
500KGS
Price:
1.5-4 USD PER KG
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
200Tons per month
Product Details
Highlight:
Non-Asbestos gasket sheet for hydrocarbon service
,Oilfield sealing sheet for crude oil
,Asbestos-free gasket for natural gas systems
Color:
Black
Material:
Non-asbestos Fibers And Rubber Binder
Application:
Sealing
Density:
1.4 G/cm³
Compressibility:
10-15%
Recovery:
35%
Working Temperature:
150Deg
Oil Resistance:
Good
Pressure:
2.0-5.0Mpa
Tensile Strength:
≥ 8 MPa
Type:
Gasket Sheet
Feature:
High Tensile Strength
Thickness:
1.0mm - 3.0mm
Pressure Range:
Up To 100 Bar
Chemical Resistance:
Acids, Alkalis, Solvents
Temperature:
200-500 Celsius Degrees
Elongation At Break:
≥ 200%
Ph Range:
2-12
Width:
1m
Mill:
TISCO, ZPSS,etc
Availability:
Sheets And Custom Cut Sizes
Transport Package:
Standard Packing
Logo:
Customized
Temperaturerange:
-40°C To 250°C
Layer Structure:
Metal–Fiber–Metal / 3+2 Layer Options
Metal Core Option:
Carbon Steel, SS201, SS304, SS316
Flexibility:
Good
Thicknessoptions:
0.5mm To 6mm
Temperature Resistance:
Up To 350 - 400°C
Standardcompliance:
ISO 9001, ASTM F104
Trading Terms:
FOB CIF CFR CNF EXWORK
Custom Sizes:
Available Upon Request
Trademark:
Zhongneng
Chemicalresistance:
Resistant To Oils, Water, And Mild Chemicals
Business Type:
Manufaturer
Water Resistance:
Good
Technique:
Hot- Rolled
Water Absorption:
Less Than 5%
Protection:
PVC, PE Film White Or Blue, Laser Film
Leakage Rate:
0.01 Cm3/min
Environmentalsafety:
Eco-friendly, Free From Asbestos Fibers
Environmentalcompliance:
RoHS Compliant
Delivery:
7-15days
Thickness Range:
0.50 Mm - 6.00 Mm
Flexural Strength:
15 MPa
Metal Core Options:
Carbon Steel, SS201, SS304, SS316
Oil Compatibility:
Resists Lubricants, Diesel
Surface Treatment:
Polished
Fluid Resistance:
Excellent
Product Description
Industrial-Grade Non-Asbestos Sealing Sheets for Hydrocarbon Service
Compatible With Crude Oil, Natural Gas & Steam Systems, Safe & Asbestos-Free for Oilfield Use
H1 – Product Introduction
This industrial-grade non-asbestos sealing sheet is specially engineered for hydrocarbon service in oilfields, crude oil pipelines, natural gas transmission systems, and combined steam facilities. Formulated with high-tenacity aramid fibers and oil-resistant elastomeric binders, it provides stable, long-lasting sealing performance under severe pressure, thermal cycling, and continuous exposure to petroleum-based media.
Fully asbestos-free and designed for safe field operation, this material meets strict health, safety, and environmental standards for oil & gas production, transportation, and processing facilities. It delivers reliable sealing for crude oil, natural gas, fuel mixtures, steam, and associated process fluids — making it ideal for oilfield operations, compressor stations, pipeline flanges, and energy infrastructure in major oil and gas-dependent regions.
H2 – Core Performance Benefits
- 100% asbestos-free composition for safe oilfield and industrial use
- Excellent resistance to crude oil, natural gas, hydrocarbons, and petroleum derivatives
- Stable sealing under high temperature, high pressure, and repeated thermal cycling
- Low stress relaxation to maintain bolt load and reduce leakage risk in long-distance pipelines
- Strong compatibility with steam systems and mixed oil‑gas‑steam service conditions
- Easy to cut, machine, and install for on-site maintenance and project installation
H2 – Material Structure & Production Method
Produced via precision hot-compression molding to ensure uniform density, consistent mechanical properties, and reliable sealing across the entire sheet.
| Component | Description |
|---|---|
| Reinforcing Fiber | High-modulus aramid fiber for pressure and fatigue resistance |
| Elastomer System | Oil-resistant nitrile rubber (NBR) for hydrocarbon compatibility |
| Forming Method | Controlled high-temperature thermal compression |
| Asbestos Content | 0% — fully non-asbestos and certified safe for oilfield use |
H2 – Operating Range & Service Capability
Optimized for harsh oilfield and hydrocarbon environments, with wide thermal and pressure tolerance.
| Parameter | Service Range |
|---|---|
| Operating Temperature | −50°C to +350°C (grade dependent) |
| Maximum Static Pressure | Up to 20 MPa |
| Suitable Media | Crude oil, natural gas, LPG, steam, water, fuel oils, process gases |
| Chemical Resistance | Hydrocarbons, lubricants, crude oil fractions, mild solvents |
H2 – Available Grades & Thermal Classes
Three performance grades tailored for oil, gas, steam, and mixed oilfield applications.
| Grade Code | Continuous Temperature | Intermittent Peak | Typical Applications |
|---|---|---|---|
| HCS150 | −30°C to +150°C | +180°C | Gas gathering lines, oil pumping units, hydraulic systems |
| HCS250 | −50°C to +250°C | +300°C | Main oil pipelines, natural gas stations, heat exchangers |
| HCS350 | −20°C to +350°C | +400°C | Steam-assisted oil systems, high-temperature process flanges |
H2 – Mechanical & Physical Characteristics
| Property | HCS150 | HCS250 | HCS350 |
|---|---|---|---|
| Tensile Strength (MPa) | ≥7.0 | ≥8.0 | ≥10.0 |
| Compressibility (%) | 7–17 | 7–17 | 7–17 |
| Recovery (%) | ≥40 | ≥45 | ≥50 |
| Stress Relaxation (%) | ≤40 | ≤35 | ≤30 |
| Density (g/cm³) | 1.8 ± 0.1 | 1.8 ± 0.1 | 1.8 ± 0.1 |
H2 – Fluid Resistance & Flexural Performance
| Test Condition | Result |
|---|---|
| Ambient Flexibility | No cracking after 180° bending |
| ASTM Oil No.3 (150°C / 5h) | Good tensile strength retention |
| Oil Weight Increase | ≤30% |
| ASTM Fuel B Immersion | Thickness change 0–20% |
| Post-Immersion Flexibility | No surface cracking or delamination |

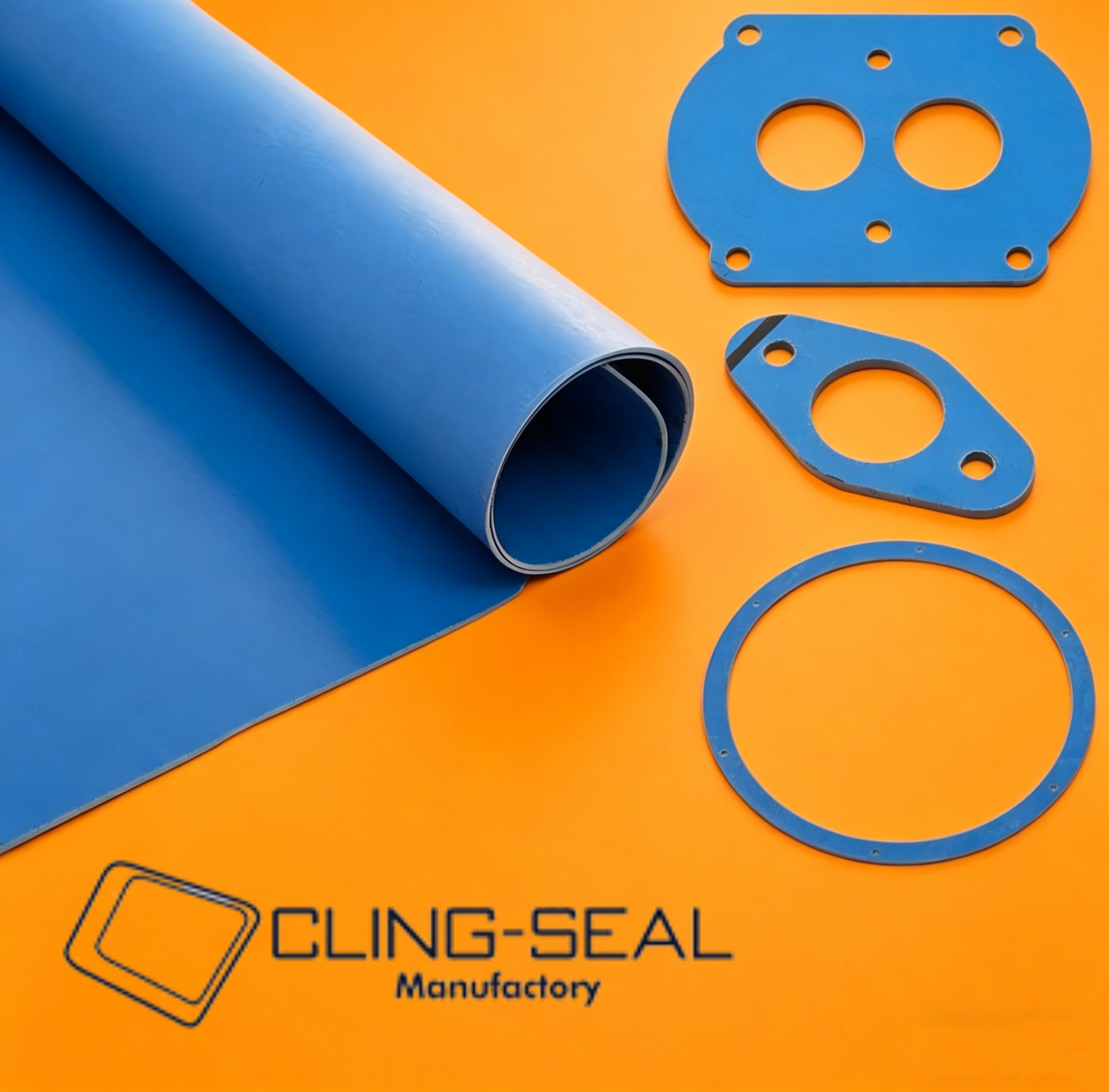

H2 – Dimensions, Thickness & Custom Supply
| Thickness Range | Standard Sheet Sizes (mm) | Custom Availability |
|---|---|---|
| 0.5–5.0 mm | 1270×1270 / 1500×1500 | Roll material available |
| Tolerance | ±0.1 mm | CNC and die-cut gaskets |
| Large Formats | 1270×3810 / 1500×2000 | Custom shapes & geometries |
| OEM Supply | 1500×4500 | Customer drawing support |
H2 – Typical Application Fields
Designed especially for oilfield and hydrocarbon‑related systems:
- Crude oil transmission pipelines and flange connections
- Natural gas gathering, compression, and distribution stations
- Oilfield wellheads, manifolds, separators, and processing equipment
- Combined steam, oil, and gas process systems
- Refinery unit flanges and petrochemical fluid lines
- Onshore and offshore oil/gas facility maintenance
H2 – Quality Assurance & Regulatory Compliance
- ISO 9001:2015 certified quality management
- Independently verified 0% asbestos content
- Compliant with international environmental and safety standards
- Tested according to ASTM F104 / F104M for sealing materials
- Suitable for use in oilfield projects and energy infrastructure worldwide
H2 – Packaging & Logistics
- Moisture-resistant vacuum packaging for long-term storage and transport
- Export-grade palletized packing for reliable overseas delivery
- Supplied as full sheets or pre-cut gaskets for direct installation
- Full technical datasheets, test reports, and compliance documents available
H2 – Frequently Asked Questions
Q1: Is this sealing sheet suitable for crude oil and natural gas service?
A: Yes. It is specially formulated for hydrocarbon environments and compatible with crude oil, natural gas, fuel oils, and associated petroleum media.
Q2: Can it be used in combined steam and oil systems?
A: Yes. Selected grades perform reliably in mixed steam, oil, and gas conditions commonly found in oilfields and process plants.
Q3: Are custom-cut gaskets available for oilfield projects?
A: Yes. We provide custom sizes, thicknesses, CNC-cut shapes, and project-specific gasket fabrication to match pipeline and equipment requirements.
Q4: Is this product safe for use in oilfield operations?
A: Yes. It is completely asbestos-free, meets industrial safety standards, and is approved for use in production, pipeline, and processing environments.
