Composite Non Asbestos Rubber Sheet Vibration Resistant For Water Pumps / Valve Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	NXB150

Minimum Order Quantity:	500KGS
Price:	1.5-4 USD PER KG
Packaging Details:	pallets or wooden case
Delivery Time:	10-20 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200Tons per month

Get Best Price Contact Now

Detail Information

Features:	Non Asbestos, High Temperature And Pressure Resistance, Good Sealing Performance	Color:	Red,Green,Black
Material:	Non Asbestos Fiber And Rubber	Application:	Sealing For Various Industrial Equipment And Pipelines
Density:	1.5 G/cm3	Compressibility:	7-17%
Recovery:	40%	Working Temperature:	150Deg
Feature:	Heat Resistant	Tensile Strength:	10 MPa
Pressure Range:	Up To 1500 PSI	Pressure:	2.0-5.0Mpa
Thickness:	0.5mm-6mm	Usual Color:	Green, Blue, Black, Red
Surface Finish:	Smooth Or Embossed	Temperature:	200-500 Celsius Degrees
Temperature Range:	-200°C To 500°C
Highlight:	Composite Non Asbestos Rubber Sheet , Valve Non Asbestos Rubber Sheet , Vibration Resistant Non Asbestos Sheet

Product Description

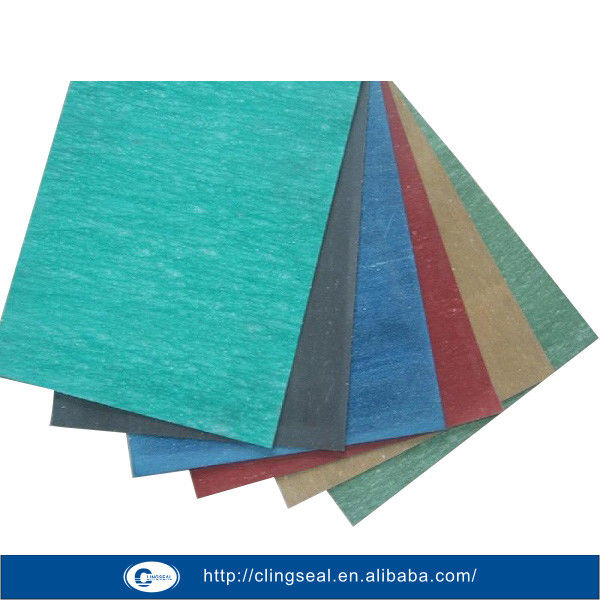

Composite Non Asbestos Rubber Sheet Vibration Resistant For Water Pumps / Valve Connections 0

Non-Asbestos Rubber Composite Sheet - Flexible & Vibration Resistant, for Water Pumps & Valve Connections

Explore our range of non-asbestos rubber composite sheets, available in thicknesses from 0.5mm to 5mm. As a best practice, choose the thinnest viable option to optimize performance for your specific sealing requirements.

General Material Properties

Crafted from a blend of aramid fibers, non-asbestos mineral fibers, and nitrile butadiene rubber (NBR), these sheets offer:

Exceptional oil resistance, making them ideal for environments with frequent contact with lubricants, fuels, or hydraulic fluids.
Reliable performance in applications involving water, gasoline, or natural gas, thanks to their chemical stability and leak-proof sealing.

Commonly used in air compressors, diesel engines, industrial pipelines, and marine systems, these sheets excel in high-vibration and dynamic stress environments.

Product Composition & Manufacturing

Component	Description
Base Materials	Aramid fibers, non-asbestos mineral fibers, synthetic fibers, and oil-resistant NBR rubber.
Manufacturing Process	Formed via high-pressure hot-roller compression and vulcanization for uniform density and structural integrity.

Temperature-Graded Models

Available in three variants rated by peak temperature resistance:

Model	Peak Temperature Rating	Ideal For
CSNXB150	150°C	Low-temperature industrial setups
CSNXB250	250°C	Medium-temperature machinery
CSNXB350	350°C	High-temperature engine compartments

Key Features

Superior Flexibility: Molds seamlessly to irregular surfaces, ensuring airtight seals in complex geometries.
Vibration Resistance: Engineered to withstand mechanical oscillations, reducing the risk of fatigue or delamination.
Cost-Effective Solution: Balances high-performance sealing with economic efficiency, suitable for both industrial and commercial use.
Certified Safety: 100% asbestos-free and ISO 9001:UKAS certified, meeting strict global safety and quality standards.
High Yield Rate: Precision manufacturing minimizes material waste during cutting and installation.

Applications

Perfect for sealing critical components in:

Engines (gasoline/diesel)
Air compressors and gearboxes
Pipeline junctions and flange connections
Water pumps, valves, and marine equipment

Sizing & Customization

Thickness Range	Standard Sheet Sizes	Custom Options
0.5mm–5.0mm	1500x1500mm, 1500x2000mm, 1500x4500mm 1270x1270mm, 1270x3810mm	Tailored dimensions available upon request

Engineered for durability, compliance, and versatile sealing solutions in dynamic industrial environments.

Physical Property:

Items			CSNXB150	CSNXB250	CSNXB350
Tensile Strength		Mpa	7.0	8.0	10.0
Compressibility		%	7-17
Recovery		≥%	40	45	50
Creep relaxation		≤%	40	35	30
Density		g/cm3	1.8±0.1
Flexibility at room temperature		Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h	Tensile Strength	MPa≥	5.0	6.0	7.0
Immersed into ASTM 3# at 150ºC for 5h	Weight Increase	≤%	30
Immersed into ASTM B at21-30ºC for 5h	Thickness Increase	-	0-20
Immersed into ASTM B at21-30ºC for 5h	Flexibility	-	No crack
Working Temperature	Max/Continuous	ºC	200/150	300/250	350/300
Working Pressure	Max/Continuous	MPa	2.0/1.0	4.0/2.0	5.0/3.0

Product Shows

Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil

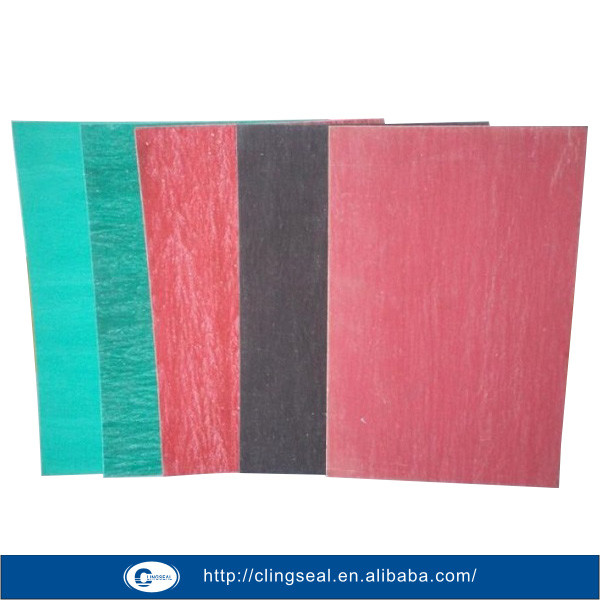

Composite Non Asbestos Rubber Sheet Vibration Resistant For Water Pumps / Valve Connections 5

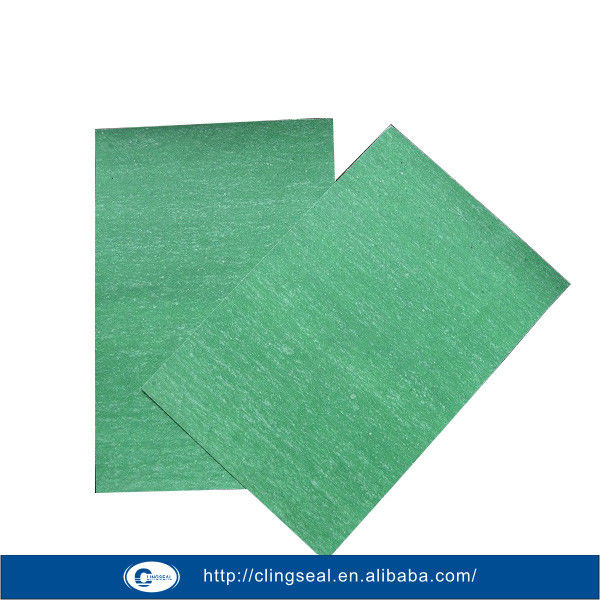

Composite Non Asbestos Rubber Sheet Vibration Resistant For Water Pumps / Valve Connections 6
