Premium Non-Asbestos Composite Gasket Sheet with Dual Metal Layers
Designed for Diesel Engines, Automotive Repairs and Industrial Machinery Across Latin America
Product Overview

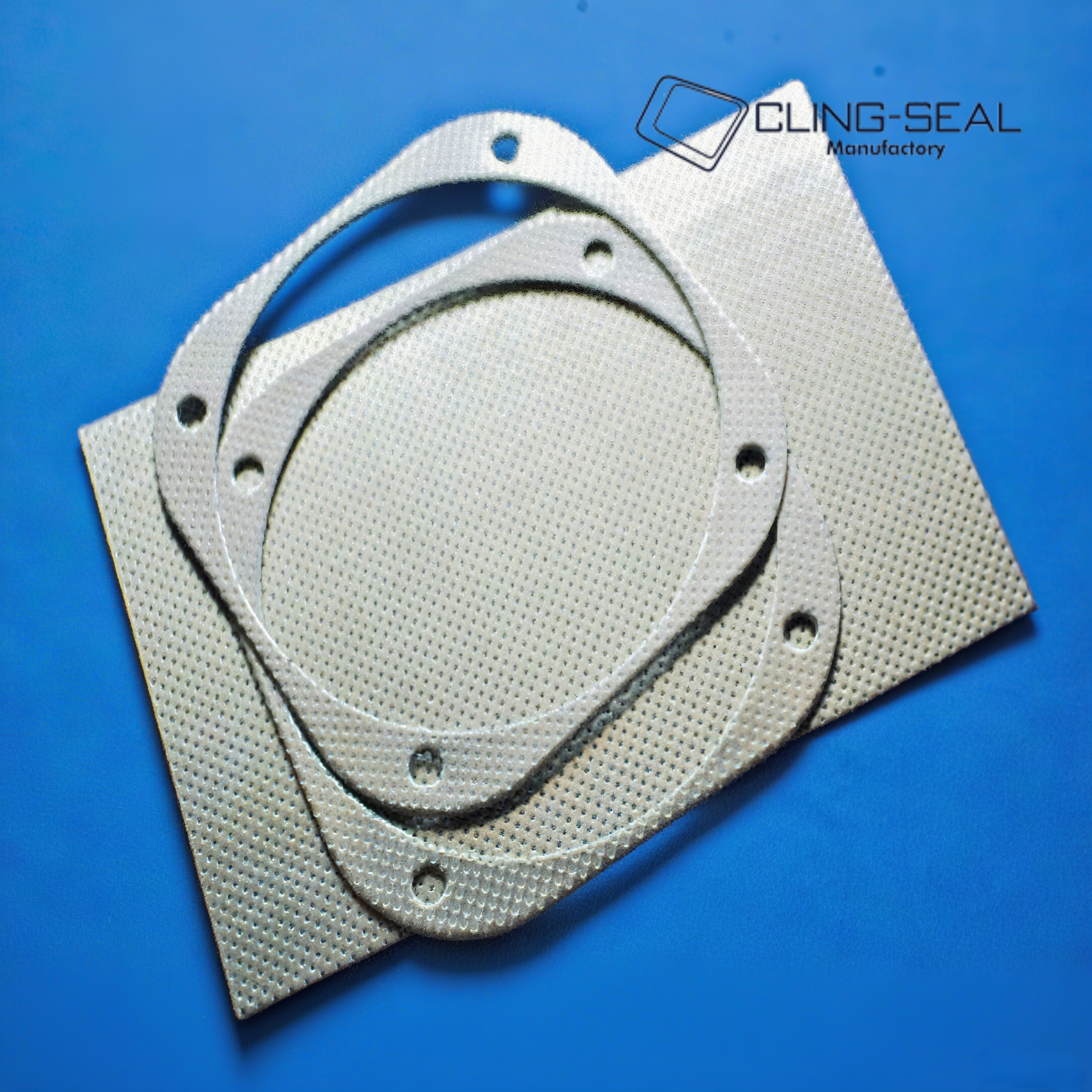

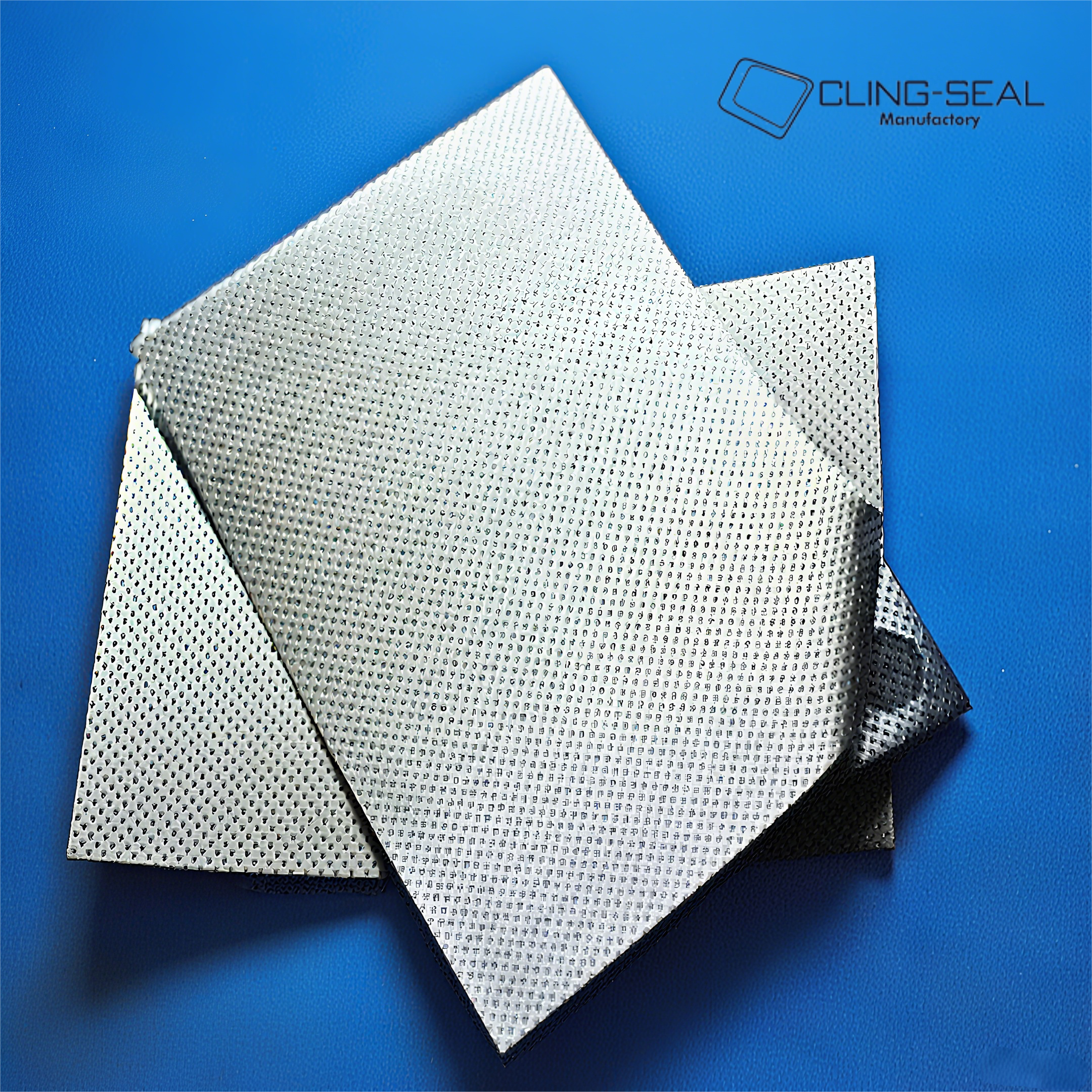

This premium double perforated metal reinforced non-asbestos gasket sheet is engineered to deliver superior sealing performance in demanding environments. Built with dual layers of perforated steel and a non-asbestos beater insert, it combines strength, durability, and adaptability, making it the preferred choice for diesel engines, automotive repairs, exhaust manifolds, and industrial machinery.
The advanced composite design ensures excellent heat resistance, pressure tolerance, and chemical stability, providing long-lasting sealing under extreme conditions.
Key Features
-
Reinforced Structure: Dual perforated carbon or stainless steel layers (201, 304, 316 optional).
-
Eco-Safe Material: Non-asbestos insert, ISO 9001 & UKAS certified.
-
High Performance: Excellent adaptability, anti-delamination, good compressibility and recovery.
-
Durability: Resistant to oil, fuel, solvents, and high temperatures.
-
Versatile Applications: Ideal for automotive, petrochemical, marine, and heavy-duty industries.
Product Specifications
| Parameter | Details |
|---|---|
| Thickness Range | 1.0mm – 6.0mm (customizable) |
| Structure | Metal–Paper–Metal / Paper–Metal–Paper–Metal (3+2 layered options) |
| Sheet Sizes | 500×500mm, 500×1000mm, 500×1500mm, 1000×1000mm, 1000×1500mm (customizable) |
| Reinforcement Metal | Carbon steel 0.2–0.25mm, optional SS201, SS304, SS316 |
| Certification | ISO 9001, UKAS, Non-Asbestos Certified |
Technical Performance
| Item 项目 | Test Standard | Result 结果 |
|---|---|---|
| Compressibility | ASTM F36 | 15–25 % |
| Recovery | ASTM F36 | ≥ 35 % |
| Weight Increase (150°C, ASTM Oil #3, 5h) | ASTM F146 | ≤ 30 % |
| Thickness Increase (150°C, ASTM Oil #3, 5h) | ASTM F146 | ≤ 20 % |
| Weight Increase (Fuel, 21–30°C, 5h) | ASTM Fuel B | ≤ 30 % |
| Thickness Increase (Fuel, 21–30°C, 5h) | ASTM Fuel B | ≤ 20 % |
Applications
-

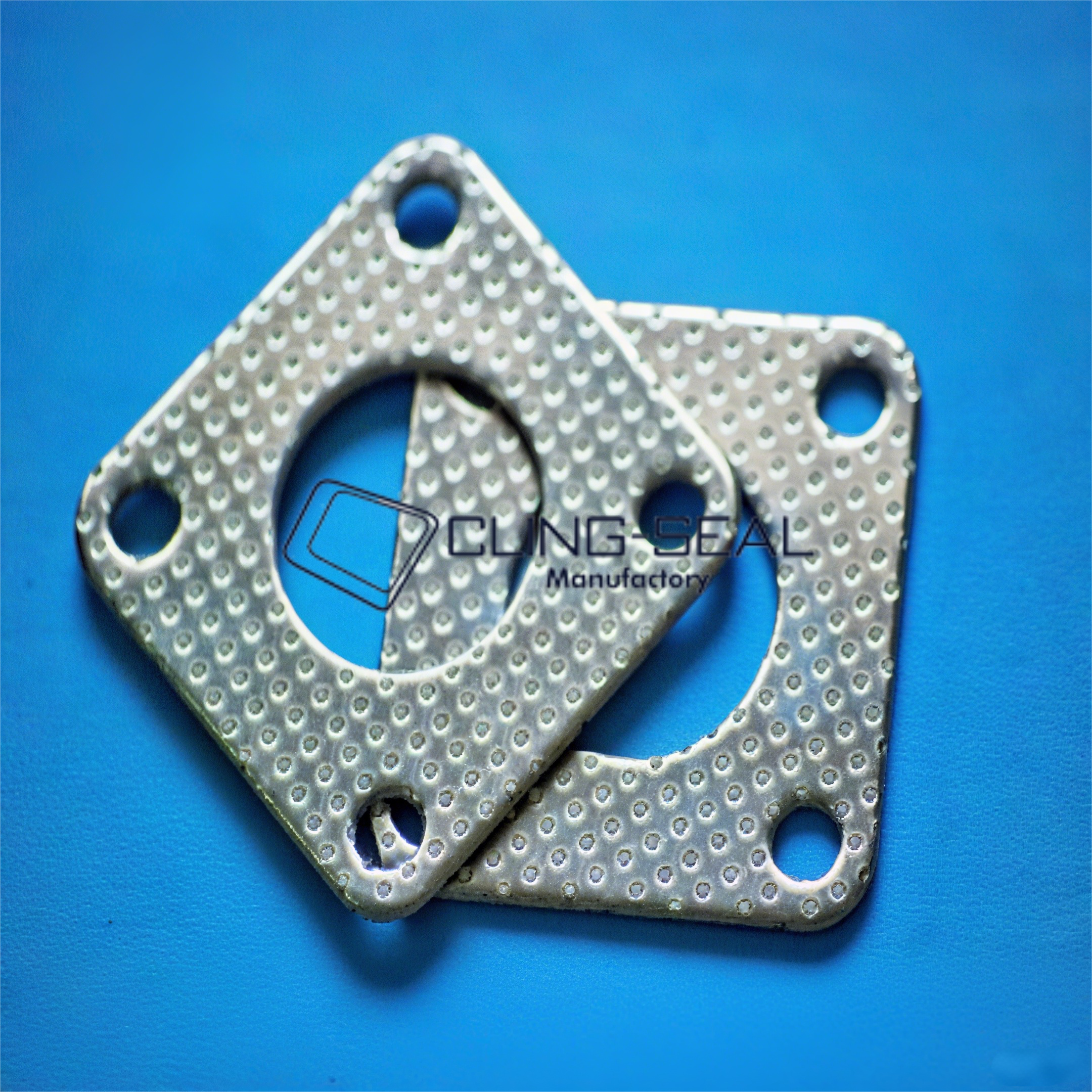

Automotive: Exhaust gaskets, cylinder head gaskets, diesel engine sealing.
-
Industrial: Pumps, compressors, high-pressure pipelines.
-
Petrochemical: Oil refineries, chemical plants, gas processing.
-
Marine & Power Plants: Engines and turbines requiring high durability seals.
Our Support
We stand behind your purchase with:
-
✅ Expert advice on product selection and application matching.
-
✅ Installation guidelines and best practices for optimal performance.
-
✅ Troubleshooting support for any on-site issues.
-
✅ Quality warranty with replacement guarantee against manufacturing defects.
-
✅ Regular updates on product improvements and technical recommendations.
Why Choose Us?
Built to thrive in Latin America’s toughest operating conditions—whether in high-temperature diesel engines in Brazil, automotive workshops in Mexico, or industrial machinery in Argentina—this gasket sheet is more than a seal: it’s a long-term solution for reliability and safety.
-
