Designed for tough automotive engine environments, this non-asbestos cylinder head gasket sheet combines durability, safety, and high performance. Its reinforced perforated steel core ensures reliable sealing even under extreme temperature and pressure changes—making it a smart choice for engines in Latin America, the Middle East, and Southeast Asia.
- 100% asbestos-free: Meets global safety standards, protecting workers and equipment from harmful substances.

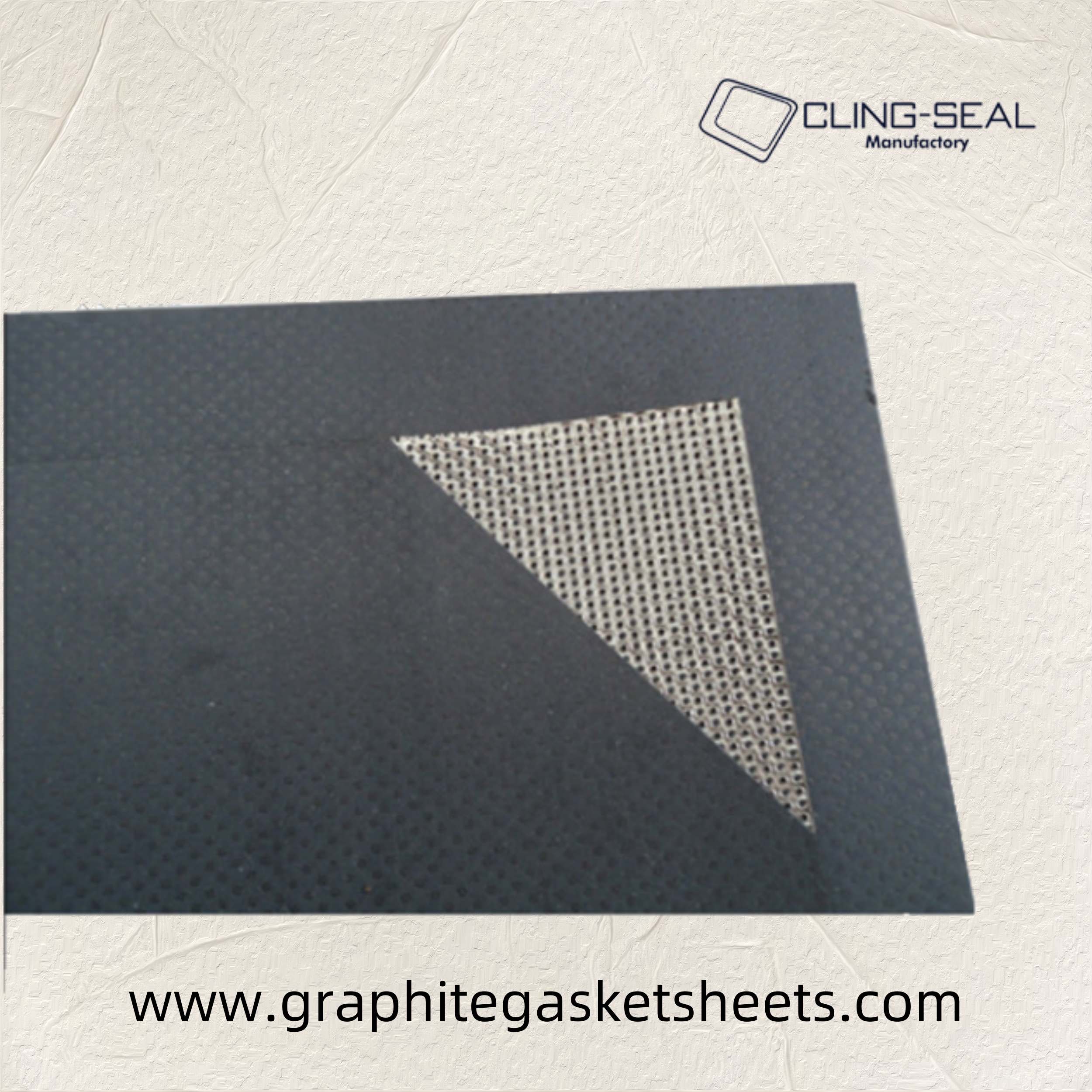

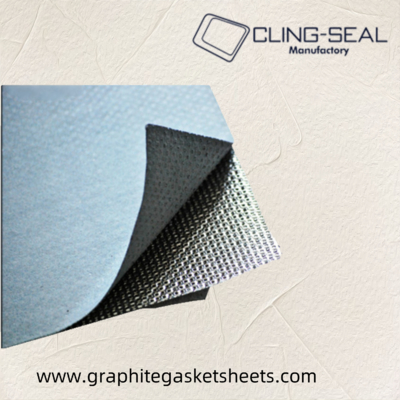

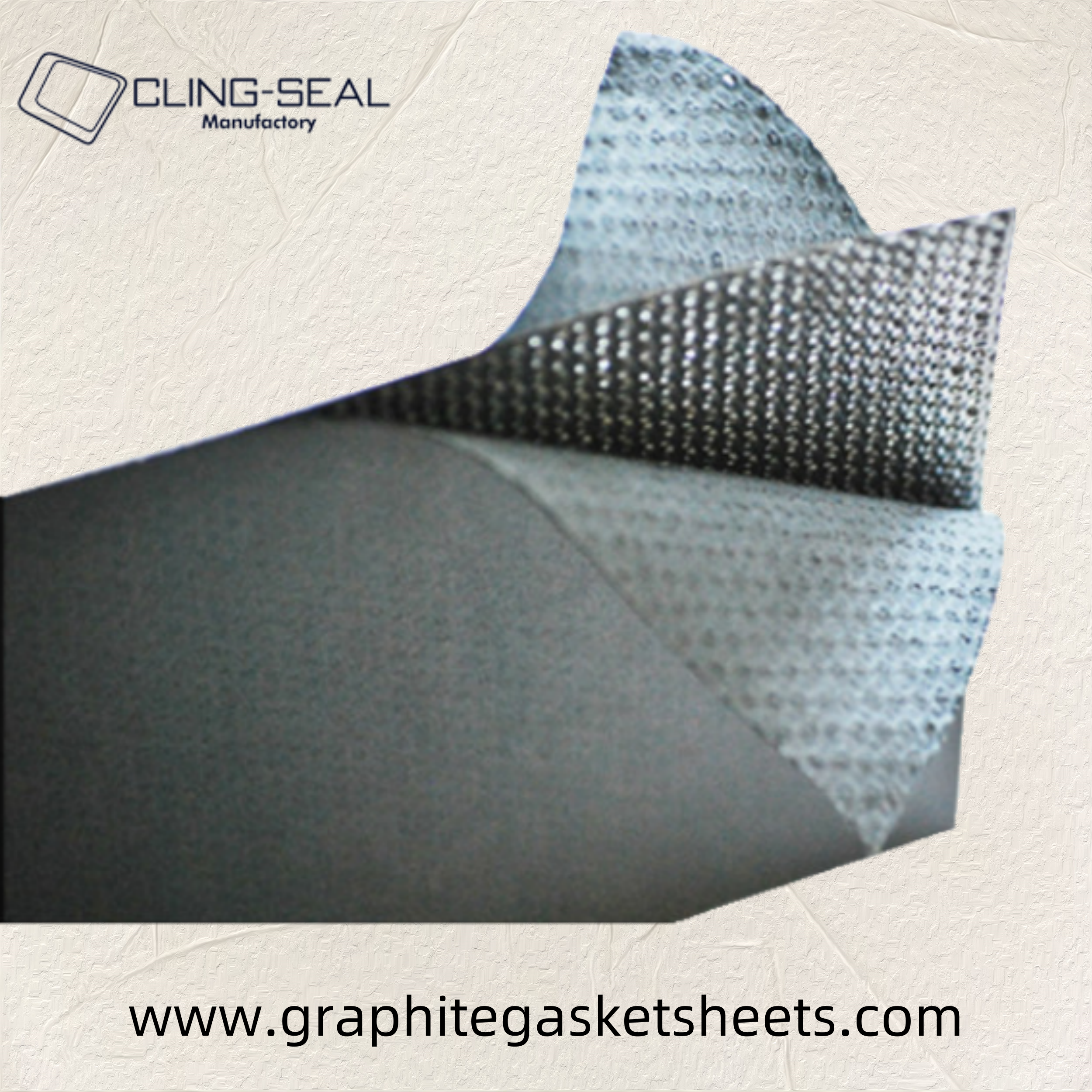

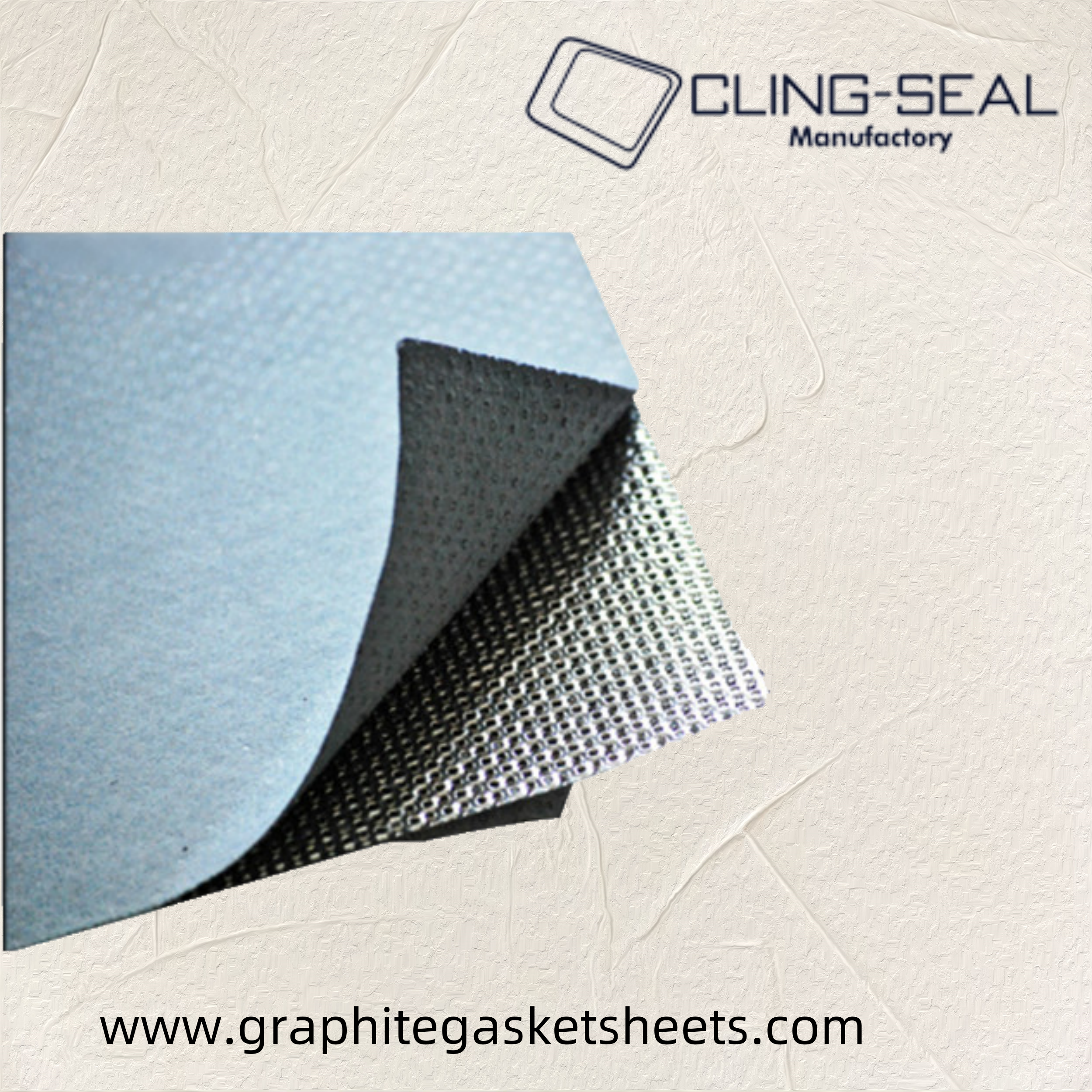

- Dual-layer structure: Non-asbestos fiber reinforced with a precision-perforated steel core (0.2–0.25mm thick, available in carbon steel, SS201, 304, or 316). This combination boosts strength while keeping the sheet flexible.
- Temperature resistance: Handles -50°C to 350°C (ideal for hot climates like the Middle East and Southeast Asia).
- Strong sealing & durability: No delamination issues, even with repeated thermal cycles. Boasts 18% compression resilience to maintain a tight seal over time.
- Oil & pressure resistance: Withstands 35MPa compressive strength, making it suitable for high-oil environments in automotive engines.
- Complies with international standards: ISO 9001 (UKAS certified), SAE J1066, and EU RoHS/REACH.
- Guaranteed asbestos-free—tested and verified for safe use in all industries.
While designed for automotive cylinder heads, its versatility fits other scenarios:
- Automotive engines: Ideal for cars, trucks, and commercial vehicles in Latin America’s busy transport networks.
- Industrial machinery: Seals high-temperature flanges in factories across Southeast Asia.
- Marine engines: Resists oil and moisture, suitable for coastal areas in Southeast Asia.
- Thickness: 0.5–6.0mm (single sheet: 0.5–3.0mm; dual-layer options available), with ±0.05mm tolerance.
- Sizes: Standard 500x500mm, 1000x1000mm, or custom dimensions (e.g., 500x1500mm) to fit your engine specs.
- Value-added services: Prototyping, material compatibility testing, and installation guidance—we help you get the right fit.
- Minimum order: 500kg, with competitive pricing at $1.07/kg.
- Payment: Flexible options via T/T, Western Union, or MoneyGram.
- Supply capacity: 100 tons/month, ensuring steady stock for large projects.
- Delivery: 10–20 days, shipped in sturdy wooden cases (via UPS/FedEx) with tracking provided.
Made in China, this gasket sheet is engineered to meet the demands of diverse climates and industries—from the hot deserts of the Middle East to the humid conditions of Southeast Asia, and the busy automotive hubs of Latin America.
For inquiries or samples, contact us today!
Technical Parameters:
| Size Options |
Thickness 1.0-6.0mm, Size variations: 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, Customizable |
| Temperature |
350 Degree C |
| Material |
Non Asbestos |
| Application |
Oil sealing, gasket, cylinder head gasket |
| Shape |
Sheet |
| Standard Or Nonstandard |
Standard, Customized |
| Technical Details |
Good for use with oil, ozone resistance, natural gas |
| Metal Insert Material |
0.2-0.25mm carbon steel, ss201, 304, 316 |
| Color |
Gray Brown OR Any |
| Features |
Good adaptability, durability, sealing, no delamination, high yield, economical, good oil-resistance |
Applications:
The ClingSeal CS1070T non-asbestos gasket sheet is a versatile product suitable for various applications due to its excellent attributes. This product is certified with ISO9001 UKAS and is guaranteed to be 100% asbestos-free, making it a safe and reliable choice for different industries.
With its origin in China, the ClingSeal non-asbestos gasket sheet is available for purchase with a minimum order quantity of 500KGS at a competitive price of 1.07 USD per KG. Customers can make payments conveniently through T/T, Western Union, or MoneyGram, and the product has a supply ability of 100 tons per month.
The delivery time for the ClingSeal gasket sheet is between 10-20 days, and it is packaged securely in wooden cases to ensure safe transportation. This product can withstand temperatures up to 350 degrees Celsius, making it suitable for high-temperature applications.
Customers can choose from a range of size options, with thickness variations from 1.0-6.0mm and sizes including 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, and customizable sizes to meet specific requirements.
The ClingSeal non-asbestos gasket sheet also offers versatility in terms of metal insert material, with options such as 0.2-0.25mm carbon steel, ss201, 304, and 316. Its technical details make it an ideal choice for applications requiring oil resistance, ozone resistance, and compatibility with natural gas.
Product Application Occasions and Scenarios:
- Head gasket paper replacement in automotive and marine engines
- Asbestos head gasket alternative in industrial machinery
- Head gasket material sheet for high-temperature sealing applications
Support and Services:
Our Product Technical Support and Services for the Non asbestos gasket sheet include:
- Expert consultation on product selection and applications
- Installation guidance and best practices
- Troubleshooting assistance for any issues related to the gasket sheet
- Regular product training and updates for users and technicians
- Quality assurance and warranty coverage for our products
Packing and Shipping:
Product Packaging:
The non-asbestos gasket sheet is carefully wrapped in protective plastic film to prevent any damage during transportation. It is then placed in a sturdy cardboard box with sufficient cushioning material to ensure safe delivery.
Shipping Information:
We ship our non-asbestos gasket sheet product using reliable courier services such as UPS or FedEx. The product will be securely packaged to prevent any damage in transit. Customers will receive a tracking number to monitor the shipment status and estimated delivery date.
FAQ:
Q: What is the brand name of the non asbestos gasket sheet product?
A: The brand name is ClingSeal.
Q: What is the model number of the non asbestos gasket sheet?
A: The model number is CS1070T.
Q: Where is the non asbestos gasket sheet produced?
A: The product originates from China.
Q: What certifications does the non asbestos gasket sheet have?
A: The product is certified with ISO and SGS.
Q: What are the available payment terms for purchasing the non asbestos gasket sheet?
A: Payment can be made via T/T, Western Union, or MoneyGram.
