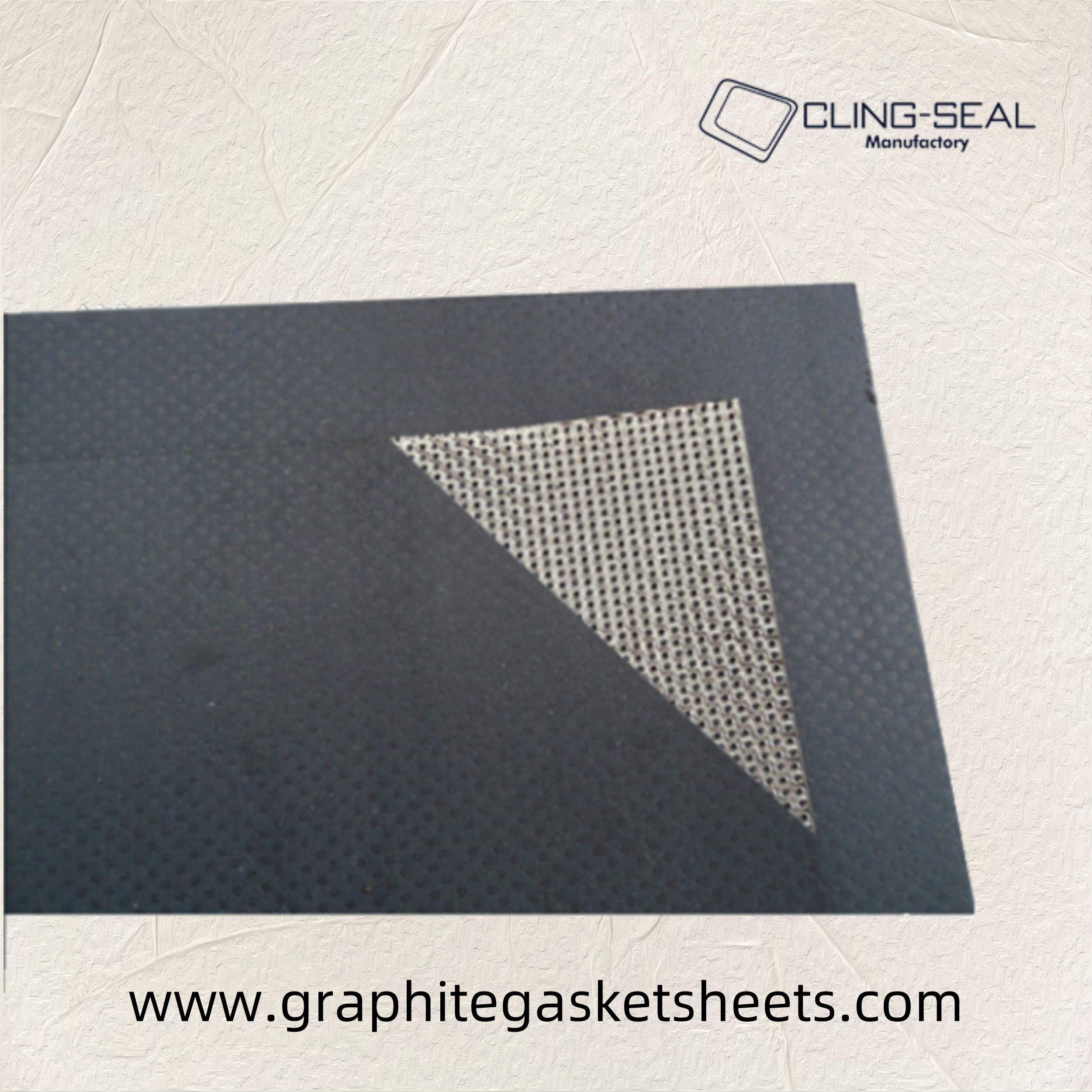

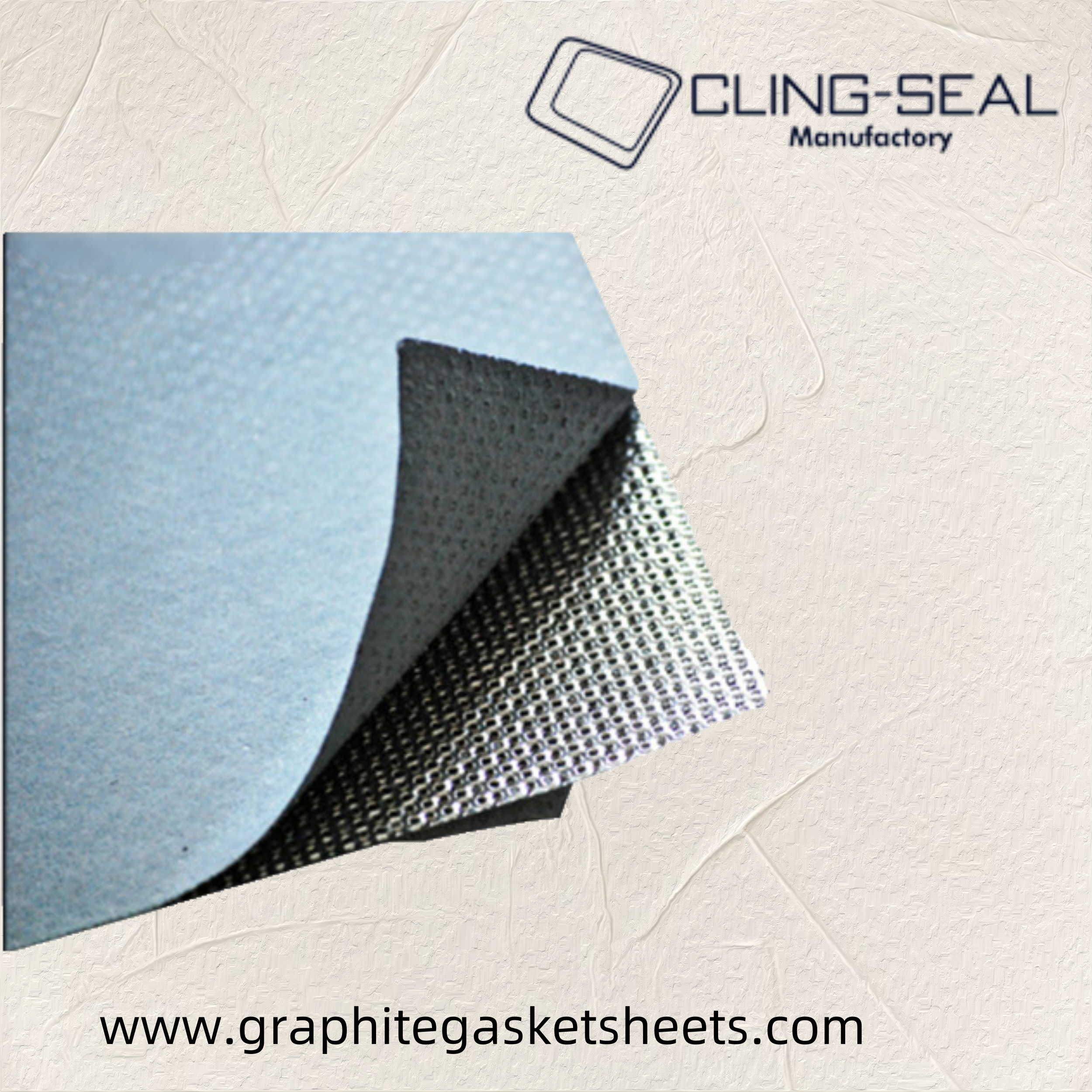

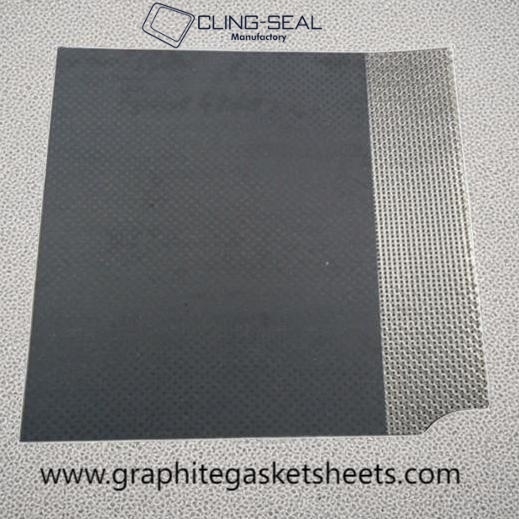

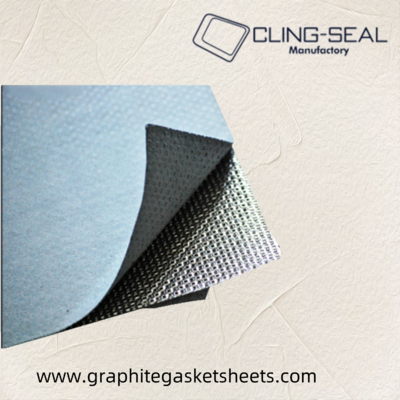

Engine Cylinder Head Gasket Sheet Non Asbestos Dual Layer Heat Insulation with Perforated Metal Insert
Heat Insulation Cylinder Head Gasket Sheet
,Cylinder Head Gasket Sheet Non Asbestos
,Dual Layer Cylinder Head Gasket Sheet
Engine Cylinder Head Gasket Sheet – Dual-Layer Non-Asbestos with Perforated Metal Core for Heat Resistance
Overview
Our advanced Non-Asbestos Cylinder Head Gasket Sheet is engineered to deliver dependable sealing performance in even the most demanding environments. Designed with precision and manufactured to international standards, this dual-layer sheet offers a perfect balance of durability, safety, and thermal resistance. Whether your needs are for standard specifications or fully customized designs, this gasket sheet is a versatile choice for automotive, marine, and industrial applications.
Construction & Materials
This product features two layers of premium-grade non-asbestos beater sheet reinforced by a perforated metal core. The embedded metal insert significantly improves mechanical strength, dimensional stability, and heat resistance, making it suitable for long-term use in high-pressure, high-temperature environments.
Core Material Options include:
| Metal Insert Type | Thickness Range (mm) | Material Grade Options |
|---|---|---|
| Carbon Steel | 0.20 – 0.25 | High-strength carbon steel |
| Stainless Steel | 0.20 – 0.25 | SS201, SS304, SS316 |
Why Non-Asbestos?
Traditional asbestos gaskets are now widely avoided due to the serious health hazards they pose. Our asbestos-free composition offers a safe, eco-conscious alternative without sacrificing sealing performance. The formulation resists oil, fuel, and many industrial chemicals, making it ideal for modern engine designs and eco-regulated industries.
Technical Specifications
| Property | Specification |
|---|---|
| Temperature Resistance | Up to 350°C |
| Sheet Thickness (Single Layer) | 0.50 – 3.00 mm |
| Overall Thickness Range | 1.00 – 6.00 mm |
| Standard Sheet Sizes | 500×500mm, 500×1000mm, 500×1500mm, 1000×1000mm, 1000×1500mm |
| Customization | Available upon request |
| Certifications | ISO9001 (UKAS), 100% asbestos-free |
| Country of Origin | China |
Key Performance Features
-
High adaptability to different sealing surfaces
-
No delamination under pressure or temperature changes
-
Strong oil and chemical resistance
-
Excellent thermal insulation for engine heat management
-
Economical without compromising durability
-
Long service life in demanding conditions
Applications
This non-asbestos gasket sheet is highly versatile, serving as an ideal choice for:
| Application Scenario | Typical Use |
|---|---|
| Automotive cylinder head gaskets | Gasoline & diesel engines |
| Marine engine sealing | Engine head & manifold gaskets |
| Industrial equipment | Pumps, compressors, and machinery gaskets |
| High-temperature sealing | Power generation, petrochemical processes |
| Replacement for asbestos-based gaskets | Safe and regulation-compliant sealing |
Ordering Information
| Parameter | Details |
|---|---|
| Minimum Order | 500 kg |
| Price | From USD 1.07/kg |
| Payment | T/T, Western Union, MoneyGram |
| Monthly Supply | Up to 100 tons |
| Lead Time | 10–20 days after order confirmation |
Support & Service
-
Technical guidance on choosing the right specification
-
Installation best practices for optimal sealing results
-
Troubleshooting support for performance issues
-
Training sessions for technicians and end-users
-
Warranty coverage for manufacturing defects
Packaging & Shipping
Our gasket sheets are securely wrapped in protective film, placed in reinforced cardboard boxes with adequate cushioning, and packed inside durable wooden cases for export.
We use reliable courier and freight services such as UPS and FedEx, providing full shipment tracking until delivery.
-
