Designed specifically for diesel engines—tackling high temperatures, heavy loads, and harsh operating conditions—this dual-layer non-asbestos cylinder head gasket sheet is built to last. With a reinforced metal core, it delivers reliable sealing performance, meets global safety standards, and fits seamlessly into automotive and industrial diesel systems across Latin America, the Middle East, and Southeast Asia.

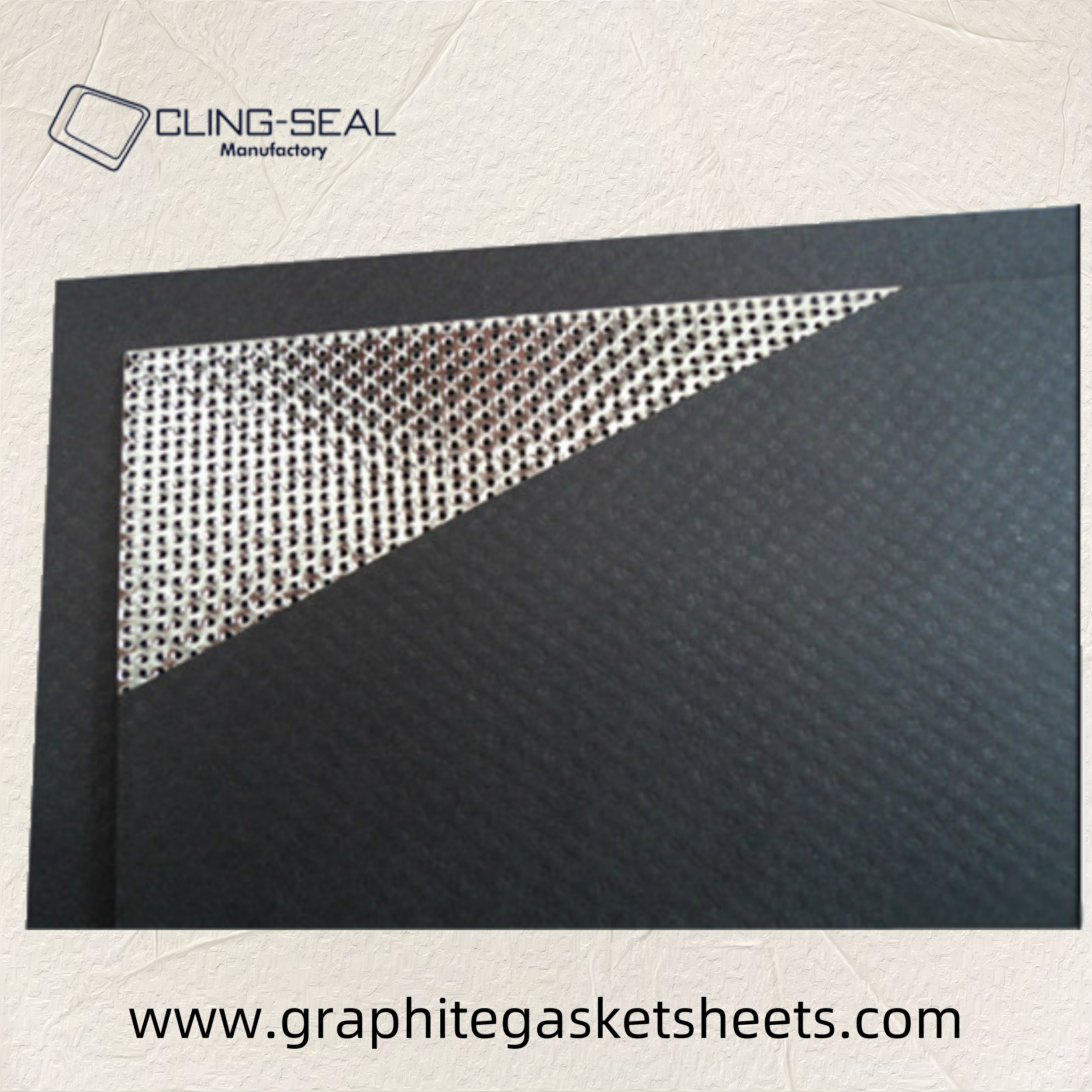

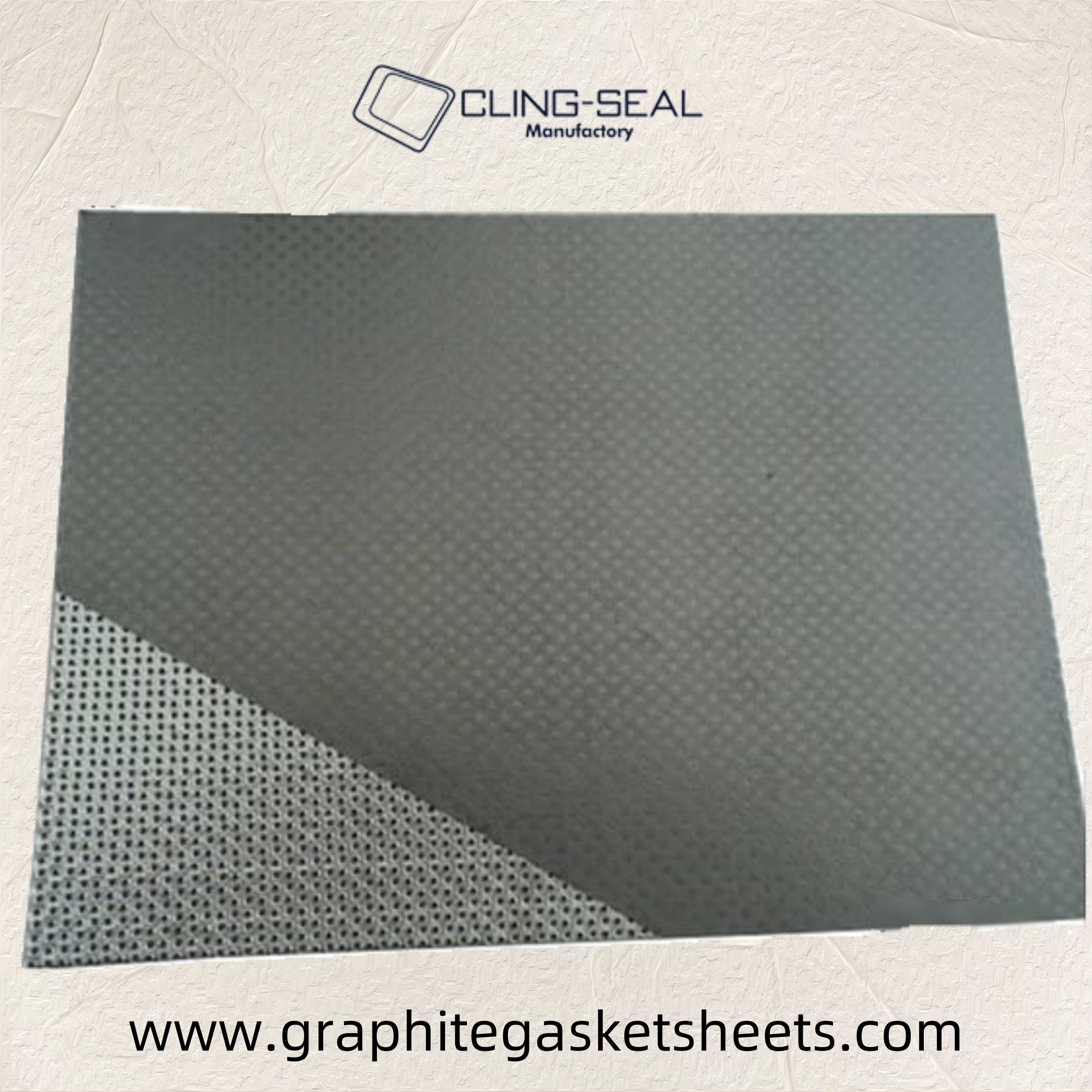

- Dual-Layer Durability: Combines tough non-asbestos fibers with a high-strength metal core (0.2-0.25mm thick) to resist wear, pressure, and thermal shock. No delamination, even after long-term use.
- Extreme Temperature Resistance: Handles up to 350°C—ideal for diesel engines’ high-heat environments, reducing the risk of gasket failure.
- Superior Sealing: 18% compression resilience ensures a tight seal under dynamic pressure, minimizing oil/fluid leaks and boosting engine efficiency.
- 100% Asbestos-Free: Safe for operators and compliant with global environmental norms, eliminating health risks associated with traditional asbestos gaskets.
Whether in heavy-duty trucks, agricultural machinery, or industrial generators, this gasket sheet excels in:
- Latin America: Diesel-powered commercial vehicles (tractors, delivery trucks) and off-road equipment.
- Middle East: High-temperature diesel engines in construction machinery and oilfield generators.
- Southeast Asia: Agricultural diesel pumps, fishing boat engines, and small-scale industrial diesel systems.
- Thickness Options: 0.5mm to 3.0mm (single sheet) or 1.0mm to 6.0mm (dual-layer), with tight tolerance (±0.05mm) for a perfect fit.
- Metal Core Choices: Carbon steel, SS201, 304, or 316 stainless steel—pick based on corrosion resistance needs.
- Sizes: Standard 500x500mm, 1000x1000mm, or custom dimensions to match your diesel engine model.
Technical Parameters:
| Size Options |
Thickness 1.0-6.0mm, Size variations: 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, Customizable |
| Temperature |
350 Degree C |
| Material |
Non Asbestos |
| Application |
Oil sealing, gasket, cylinder head gasket |
| Shape |
Sheet |
| Standard Or Nonstandard |
Standard, Customized |
| Technical Details |
Good for use with oil, ozone resistance, natural gas |
| Metal Insert Material |
0.2-0.25mm carbon steel, ss201, 304, 316 |
| Color |
Gray Brown OR Any |
| Features |
Good adaptability, durability, sealing, no delamination, high yield, economical, good oil-resistance |
- Certified by ISO 9001 UKAS, SAE J1066, and EU RoHS/REACH—guaranteeing quality and safety for your operations.
- Price: Competitive rate of 1.07 USD per kg.
- Minimum Order: 500kgs (flexible for bulk needs).
- Supply Capacity: 100 tons/month—no delays for large projects.
- Payment: Convenient via T/T, Western Union, or MoneyGram.
- Delivery: 10-20 days, securely packed in wooden cases to avoid damage during transit.
Need help? Our team offers:
- Expert advice on selecting the right gasket for your diesel engine.
- Installation tips to ensure optimal performance.
- Troubleshooting support and quality warranties.
For diesel engines that work as hard as you do—choose a gasket that keeps up. Contact us today to place your order!
Applications:
The ClingSeal CS1070T non-asbestos gasket sheet is a versatile product suitable for various applications due to its excellent attributes. This product is certified with ISO9001 UKAS and is guaranteed to be 100% asbestos-free, making it a safe and reliable choice for different industries.
With its origin in China, the ClingSeal non-asbestos gasket sheet is available for purchase with a minimum order quantity of 500KGS at a competitive price of 1.07 USD per KG. Customers can make payments conveniently through T/T, Western Union, or MoneyGram, and the product has a supply ability of 100 tons per month.
The delivery time for the ClingSeal gasket sheet is between 10-20 days, and it is packaged securely in wooden cases to ensure safe transportation. This product can withstand temperatures up to 350 degrees Celsius, making it suitable for high-temperature applications.
Customers can choose from a range of size options, with thickness variations from 1.0-6.0mm and sizes including 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, and customizable sizes to meet specific requirements.
The ClingSeal non-asbestos gasket sheet also offers versatility in terms of metal insert material, with options such as 0.2-0.25mm carbon steel, ss201, 304, and 316. Its technical details make it an ideal choice for applications requiring oil resistance, ozone resistance, and compatibility with natural gas.
Product Application Occasions and Scenarios:
- Head gasket paper replacement in automotive and marine engines
- Asbestos head gasket alternative in industrial machinery
- Head gasket material sheet for high-temperature sealing applications
Support and Services:
Our Product Technical Support and Services for the Non asbestos gasket sheet include:
- Expert consultation on product selection and applications
- Installation guidance and best practices
- Troubleshooting assistance for any issues related to the gasket sheet
- Regular product training and updates for users and technicians
- Quality assurance and warranty coverage for our products
Packing and Shipping:
Product Packaging:
The non-asbestos gasket sheet is carefully wrapped in protective plastic film to prevent any damage during transportation. It is then placed in a sturdy cardboard box with sufficient cushioning material to ensure safe delivery.
Shipping Information:
We ship our non-asbestos gasket sheet product using reliable courier services such as UPS or FedEx. The product will be securely packaged to prevent any damage in transit. Customers will receive a tracking number to monitor the shipment status and estimated delivery date.
FAQ:
Q: What is the brand name of the non asbestos gasket sheet product?
A: The brand name is ClingSeal.
Q: What is the model number of the non asbestos gasket sheet?
A: The model number is CS1070T.
Q: Where is the non asbestos gasket sheet produced?
A: The product originates from China.
Q: What certifications does the non asbestos gasket sheet have?
A: The product is certified with ISO and SGS.
Q: What are the available payment terms for purchasing the non asbestos gasket sheet?
A: Payment can be made via T/T, Western Union, or MoneyGram.
