Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Basic Information
Place of Origin: CHINA
Brand Name: ClingSeal
Certification: ISO9001 UKAS, 100% no asbestos
Model Number: CS1070T
Minimum Order Quantity: 500KGS
Price: 1.07 USD PER KG
Packaging Details: wooden case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100Tons per month
Get Best Price Contact Now
Detail Information
Features: Good Adaptability, Durability, Sealing, No Delamination, High Yield, Economical, Good Oil-resistance Customer Service: Happy To Answer Any Questions
Material: Non Asbestos Product Formation: Two Sides Non Asbestos Beater Sheet With Perforated Metal Insert
Application: Sealing And Gasketing Shape: Sheet
Size Options: Thickness 1.0-6.0mm, Size Variations: 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, Customizable Water Resistance: Good
Chemical Resistance: Good Length: 1000mm
Oil Resistance: Good Temperature Resistance: 500℃
Width: 1000mm Thickness: 0.5mm-5mm
Density: 1.8g/cm3 Recovery: ≥40%
Compressibility: ≤12% Tensile Strength: ≥10MPa
Pressure Resistance: ≥10MPa Elongation At Break: ≥200%
Compression Set: ≤35% Hardness: 70 Shore A
Temperature Range: -30℃ To +120℃ Acid Resistance: Excellent
Alkali Resistance: Good Compression Strength: 20MPa
Color: Grey Compression Ratio: ≤12%
Highlight:

non-asbestos composite sheet for gaskets

,

heavy machinery gasket material

,

heat-resistant industrial composite sheet

Product Description

Composite Sheet for Diesel Engine Gaskets, Heavy Machinery, and Industrial Equipment – Non-Asbestos, Extreme Heat & Pressure Resistant

Overview

Our ClingSeal Composite Non-Asbestos Gasket Sheet is engineered to provide robust sealing performance under the most demanding conditions. Developed as a safe alternative to traditional asbestos-based materials, it offers exceptional mechanical strength, chemical resistance, and heat endurance—making it an optimal choice for diesel engines, heavy-duty machinery, and diverse industrial sealing requirements.

Unlike conventional gasket sheets, this product incorporates a precision-perforated metal core between dual layers of premium non-asbestos beater sheet. This advanced structure maximizes dimensional stability, prevents delamination under load, and ensures a consistently tight seal in high-pressure, high-temperature environments.

Key Specifications

Parameter Details
Product Name ClingSeal CS1070T Non-Asbestos Gasket Sheet
Material Composition Non-asbestos fiber sheet laminated on both sides of a perforated metal insert
Metal Insert Options Carbon Steel (0.20–0.25 mm), Stainless Steel SS201 / SS304 / SS316
Asbestos Content 0% – ISO9001 UKAS Certified
Thickness (Single Sheet) 0.5 mm – 3.0 mm
Overall Thickness Range 1.0 mm – 6.0 mm
Available Sheet Sizes 500×500 mm, 500×1000 mm, 500×1500 mm, 1000×1000 mm, 1000×1500 mm, or custom dimensions
Max Operating Temperature 350 °C
Oil Resistance Excellent
Minimum Order Quantity 500 KGS
Monthly Supply Capacity 100 tons
Origin China

Performance Highlights

Feature Benefit
Non-Asbestos Composition Eliminates asbestos-related health hazards while maintaining sealing performance
Perforated Metal Core Strengthens sheet structure, resists blowout under extreme load
High Heat Tolerance Suitable for applications up to 350 °C
Oil & Fuel Resistance Ideal for engines and equipment in contact with lubricants or hydrocarbons
Custom Sizing Available Accommodates unique industrial and OEM specifications
No Delamination Ensures long-term structural stability
Economical & High Yield Reduced waste during cutting and installation

Application Scope

The ClingSeal CS1070T sheet is widely deployed in environments requiring a reliable, asbestos-free sealing medium:

  • Automotive: Cylinder head gaskets, intake/exhaust manifold seals, oil pan gaskets

  • Marine Engines: Engine head sealing and exhaust system applications

  • Heavy Equipment: Bulldozers, loaders, cranes, and mining machinery

  • Industrial: Compressors, pumps, heat exchangers, and chemical process equipment

Product Advantages at a Glance

Advantage Details
Health & Safety Compliance Fully compliant with asbestos-free safety regulations
Mechanical Strength Withstands vibration, torque, and mechanical stress
Temperature Stability Maintains sealing integrity in fluctuating temperatures
Easy Fabrication Can be die-cut or CNC-machined for custom gasket shapes
Versatility Performs reliably in oil, steam, water, natural gas, and chemical media

Ordering & Delivery

Detail Information
Minimum Order Quantity 500 KGS
Price Approx. USD 1.07 / KG (subject to volume)
Payment Terms T/T, Western Union, MoneyGram
Production Lead Time 10–20 days
Packaging Plastic film wrap + heavy-duty cardboard + wooden case reinforcement
Shipping UPS, FedEx, or freight forwarding; tracking number provided

After-Sales Support

We back every ClingSeal gasket sheet with professional technical support:

  • Product Selection Guidance – Match the right sheet to your application requirements

  • Installation Best Practices – Tips to ensure a perfect seal and extended service life

  • Performance Troubleshooting – Assistance with any in-service sealing issues

  • Training Resources – Technical documentation and operator training sessions

  • Warranty & Quality Assurance – Full compliance with ISO standards and batch inspection

Choose ClingSeal CS1070T Non-Asbestos Gasket Sheet for a combination of safety, performance, and adaptability—engineered to withstand the extremes of temperature, pressure, and chemical exposure in industrial and engine environments.

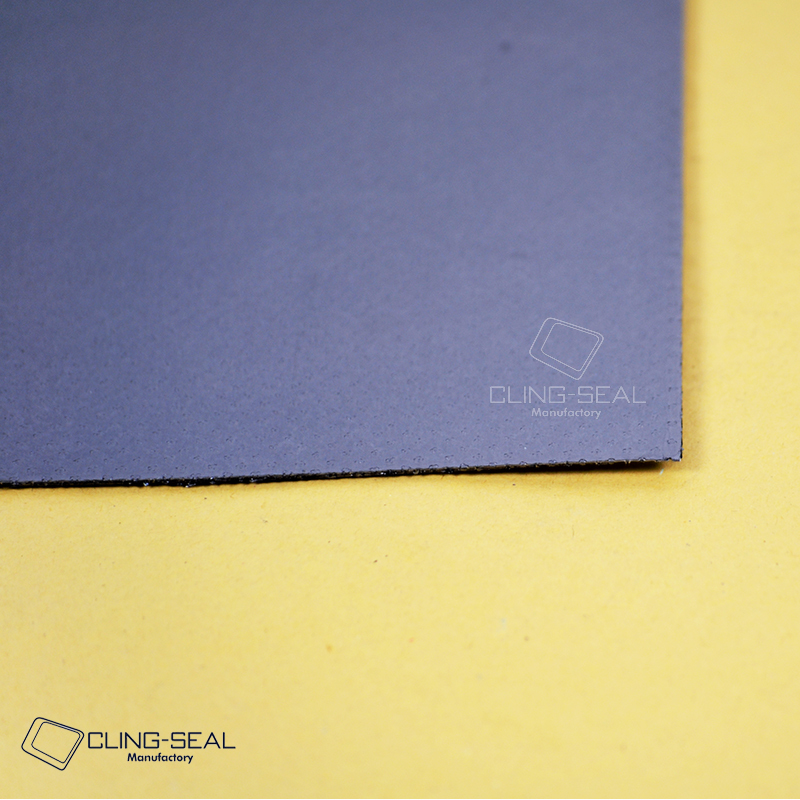

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure 0

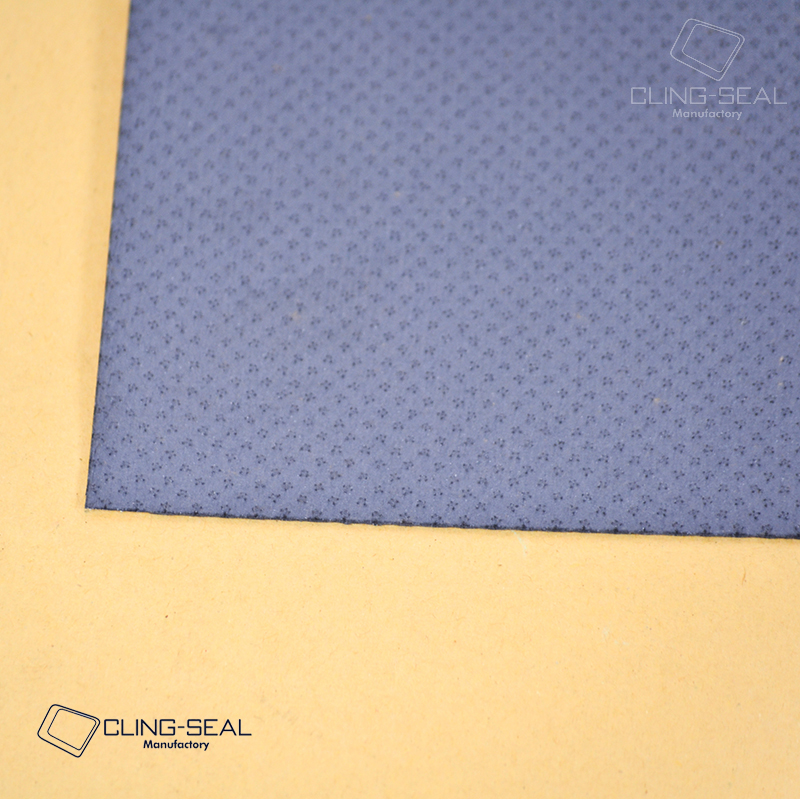

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure 1

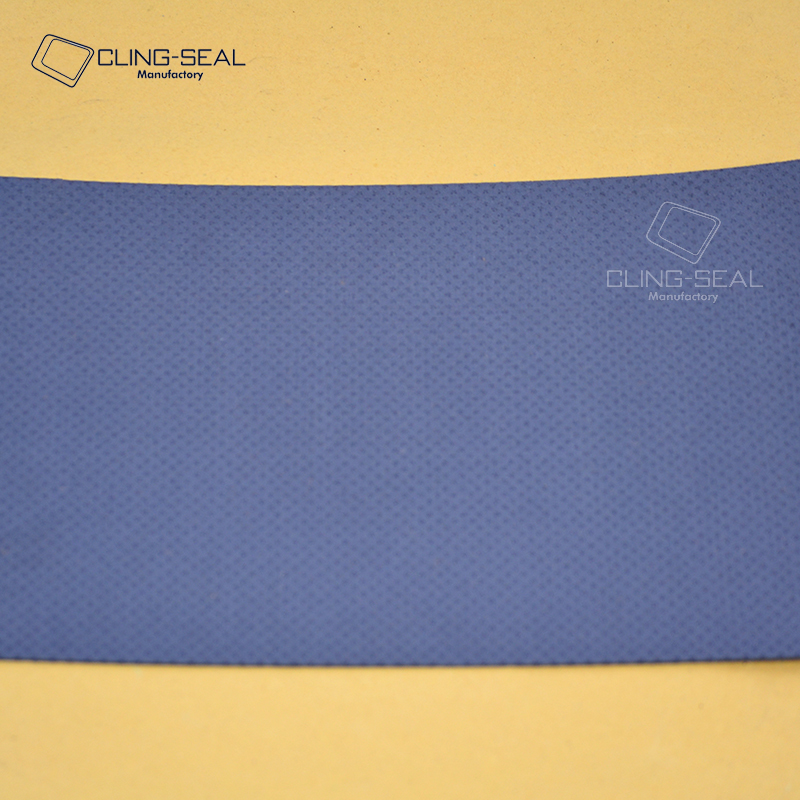

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure 2

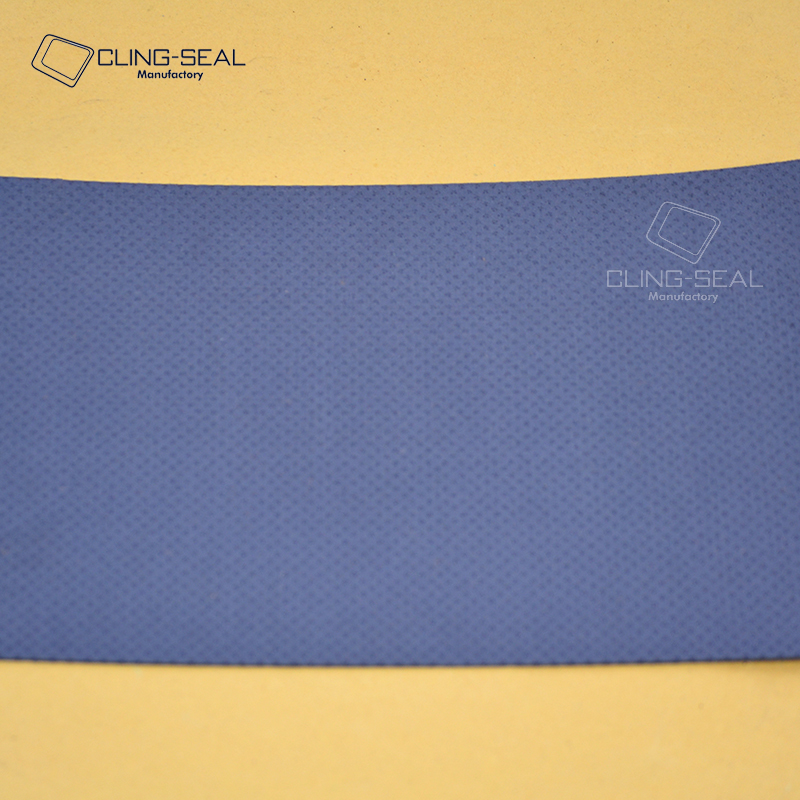

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure 7
