| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ClingSeal |
| Certification: | ISO9001 UKAS, 100% no asbestos |
| Model Number: | CS1070T |
| Minimum Order Quantity: | 500KGS |
| Price: | 1.07 USD PER KG |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100Tons per month |
| Features: | Good Adaptability, Durability, Sealing, No Delamination, High Yield, Economical, Good Oil-resistance | Customer Service: | Available For Answering Questions |
|---|---|---|---|
| Material: | Non Asbestos Fiber | Shape: | Sheet |
| Application: | Gaskets, Seals, Flange Seals, Etc. | Product Formation: | Industrial-Grade Compressed Fiber Cylinder Gasket With Reinforced Perforated Steel Insert |
| Size Options: | Thickness 1.0-6.0mm, Size Variations: 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, Customizable | Pressure Range: | ≤ 100 Bar |
| Chemical Resistance: | Excellent | Compression Strength: | 20MPa |
| Pressure Resistance: | Up To 100 Bar | Hardness: | 70 Shore A |
| Color: | Black | Recovery: | ≥ 45% |
| Length: | 1000mm-2000mm | Oil Resistance: | Excellent |
| Tensile Strength: | ≥8 MPa | Water Resistance: | Good |
| Temperature Range: | -200°C To +250°C | Elongation At Break: | ≥200% |
| Compression Ratio: | ≤12% | Elongation: | ≥10% |
| Alkali Resistance: | Good | Compressibility: | 7-17% |
| Standard Size: | 1000mm X 1000mm, 1500mm X 1500mm | Type: | Beater Sheet |
| Temperature Resistance: | -100℃ To 300℃ | Acid Resistance: | Excellent |
| Surface Finish: | Smooth Or Textured | Water Absorption: | 0.5% |
| Flexibility: | Good | Width: | 1000mm, 1200mm, 1500mm |
| Highlight: | non-asbestos gasket material for vehicles,non-asbestos beater sheet for engines,industrial gasket material with warranty |
||
Export Solutions for Argentina, Mexico, Chile, and Brazil
ClingSeal (Anqing ClingSeal Sealing Manufacturing Co., Ltd.) is a specialized producer of non-asbestos sealing materials with more than two decades of industrial manufacturing know-how. For the past 8+ years, we have been deeply engaged in Latin American markets, establishing long-term cooperation with distributors and gasket-cutting plants in Argentina, Mexico, Chile, and Brazil.
Our CS-Series reinforced non-asbestos sheets are specifically developed for high-temperature engines, agricultural vehicles, marine fleets, and industrial plants, ensuring durability in the diverse climates of Latin America — from the humid coasts of Brazil to the high-altitude mining areas of Chile and Peru.
| Feature | Technical Detail | Benefit for Importers & Manufacturers |
|---|---|---|
| Factory-Direct Supply | Produced in China with ISO9001 & SGS accreditation | Cost efficiency, consistent batches, and secure quality |
| Non-Asbestos Formula | 100% asbestos-free fibers with rubber binder | Meets environmental laws in Mexico & MERCOSUR compliance |
| Metal Core Reinforcement | Options in perforated carbon steel, SS201, SS304, SS316 | Added strength for diesel engines & industrial sealing |
| Market-Focused Service | Portuguese, Spanish & English support | Smooth communication, faster deal closure |
| Custom Sheet Dimensions | Adaptable to standard and manual gasket presses | Fits both automated cutting machines & hand-tool workshops |
| Specification Item | Data Range |
|---|---|

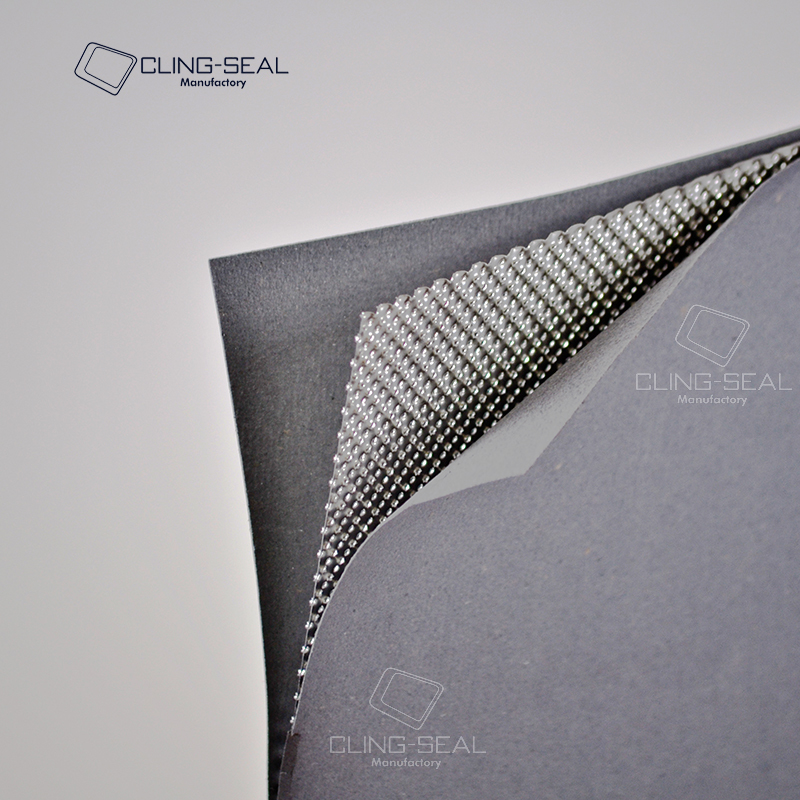

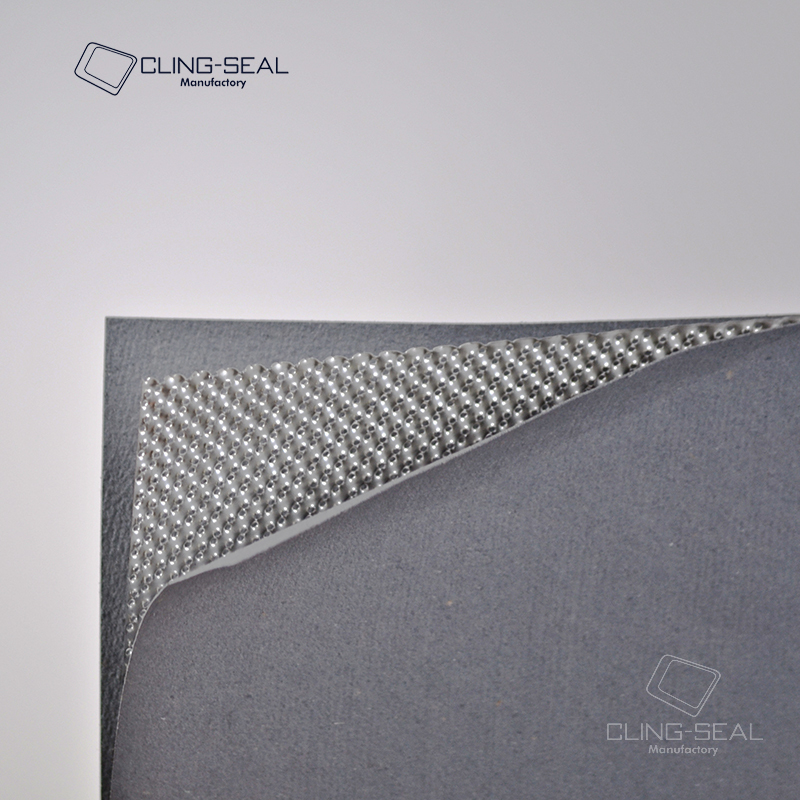

| Material Structure | Non-asbestos fiber sheets bonded to perforated metal |
| Thickness per Sheet | 0.50 – 3.00 mm |
| Total Thickness (laminated) | 1.00 – 6.00 mm |
| Standard Sheet Dimensions | 500×1000 mm, 1000×1500 mm, others available |
| Working Temperature | Up to 350°C continuous |
| Oil & Fuel Resistance | Excellent sealing against lubricants & diesel |
| Certifications | ISO9001 (UKAS), SGS approved |
| Industry | Example Applications |
|---|---|
| Automotive & Agricultural Engines | Cylinder head gaskets for tractors in Brazil, harvesters in Argentina |
| Construction & Heavy Machinery | Hydraulic pump gaskets, sealing sheets for excavators in Mexico |
| Marine & Transport | Gaskets for fishing vessels and cargo ships along Chile’s Pacific coast |
| Industrial Production Plants | Sealing parts for textile mills, food machinery, and mining conveyors |
Regulatory Compliance
Fully asbestos-free to comply with Brazilian NR-15 safety rules and other regional environmental standards.
Commercial Flexibility
Accepts small and bulk orders (MOQ 500 KG), competitive FOB pricing from USD 1.07/KG, ensuring better profit margins.
Reliable Supply Chain
Monthly capacity of 100 tons, average lead time 10–20 days, export packing designed for long-distance shipping to Santos, Callao, Veracruz, and Buenos Aires.
Technical Support
Installation guidelines, troubleshooting assistance, and continuous updates for our distributors in South America.
| Term | Detail |
|---|---|
| MOQ | 500 KG |
| FOB Price | Starting at USD 1.07/KG |
| Payment Options | T/T, Western Union, MoneyGram |
| Production Capacity | 100 tons per month |
| Delivery Time | 10–20 days |
| Ports of Shipment | Shanghai, Ningbo (sea freight / air cargo optional) |
| Packing | Protective film + reinforced wooden pallet crates |
Q1: What brand supplies the gasket sheet?
A1: All sheets are produced under the ClingSeal® brand.
Q2: Which model is suitable for engine head gaskets?
A2: The CS1070T model is designed for cylinder head gasket cutting.
Q3: Where is production carried out?
A3: Our ISO-certified plant is based in China.
Q4: Which certifications are available?
A4: Products are certified by ISO9001 and SGS.
Q5: What are the accepted payment methods?
A5: Orders can be settled via T/T, Western Union, or MoneyGram.
