Precision-Cut Graphite Gasket Material

Enhanced Thermal Stability for Deep-Cryogenic Vacuum Applications in Chemical & Petrochemical Processing Industries

Products Description

Product Overview

Critical Performance Features for Chemical & Petrochemical Applications

Chemical Resistance

• Excellent resistance to corrosive media including acids, alkalis, organic solvents, and hydrocarbons commonly found in chemical reactors and petrochemical pipelines.
• Chemically inert structure minimizes contamination risk, making it suitable for high-purity processing and vacuum isolation systems.
• Ultra-low sulfur and chloride content ensures compatibility with sensitive alloys and prevents stress corrosion cracking.

Thermal Stability

• Outstanding operating temperature range: -200°C to 600°C, maintaining stable performance in deep-cryogenic conditions and high-temperature thermal cycling.
• Low thermal expansion coefficient reduces dimensional distortion under rapid temperature fluctuations.
• Stable material structure under vacuum, with minimal outgassing for long-term high-vacuum reliability.

Sealing Performance & Mechanical Stability

• High compressibility and resilient structure ensure tight sealing even on imperfect flange surfaces.
• Impermeable graphite matrix prevents leakage of gases, liquids, and volatile media in vacuum and pressure systems.
• Self-lubricating characteristics reduce friction and wear in dynamic valve components such as stems and seats.

Customizable Specifications

Basic Form & Size

• Rolls: Width 1000mm / 1500mm; Length 30m / 50m / 80m
• Sheets: 1000mm × 1500mm
• Thickness: 0.15mm (precision seals) to 5mm (heavy-duty valves)
• Density: 0.8–1.25 g/cm³, adjustable to optimize compressibility and pressure resistance

Precision Tolerances

Material Grade & Mechanical Performance

Core Material Indicators

Application Highlights in Chemical & Petrochemical Industries

Valve Stem Sealing

• Provides reliable dynamic sealing for gate valves, globe valves, butterfly valves, and control valves.
• Metal-reinforced composite versions available for high-pressure API 6D applications.
• Compensates for stem wear and pressure fluctuations while maintaining vacuum integrity.

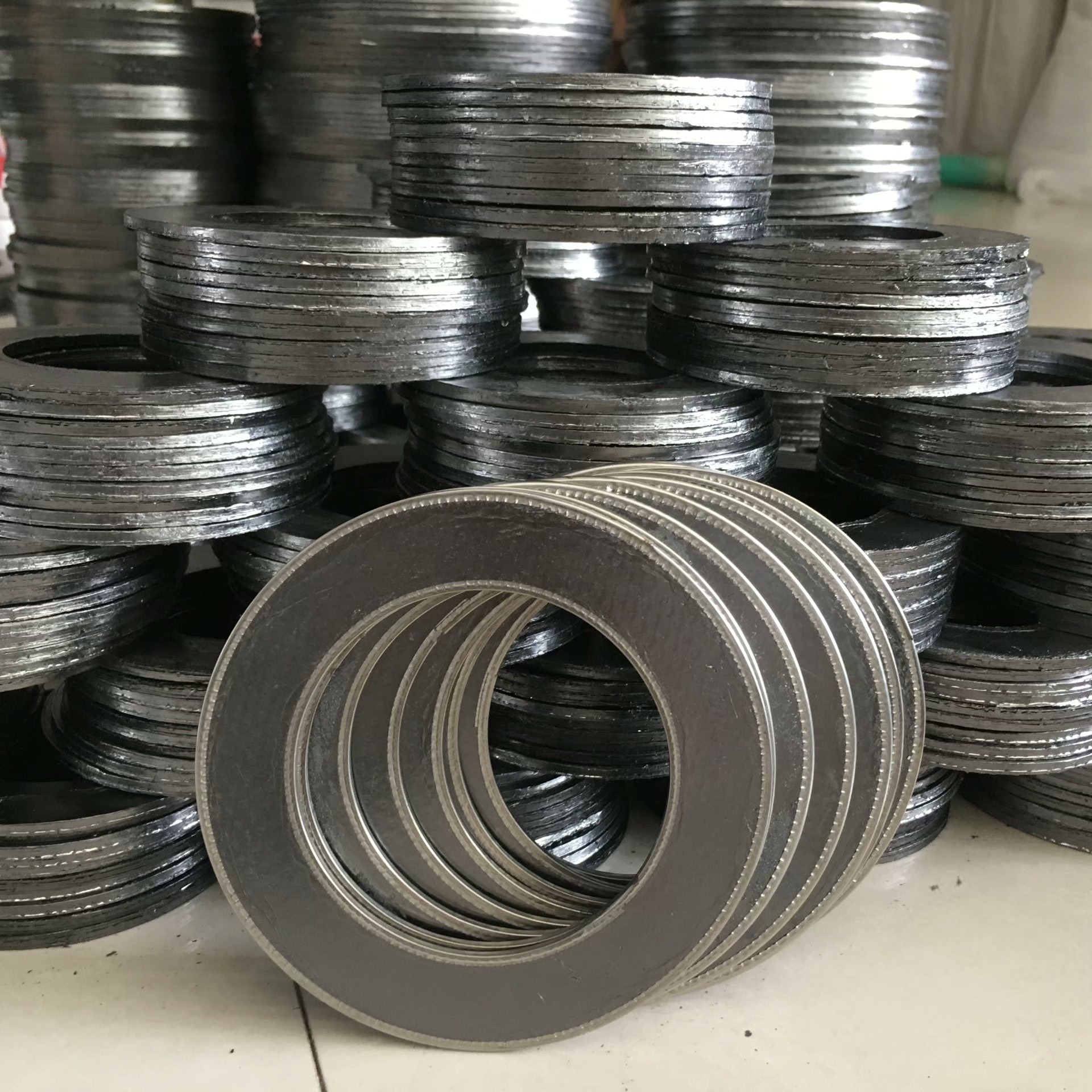

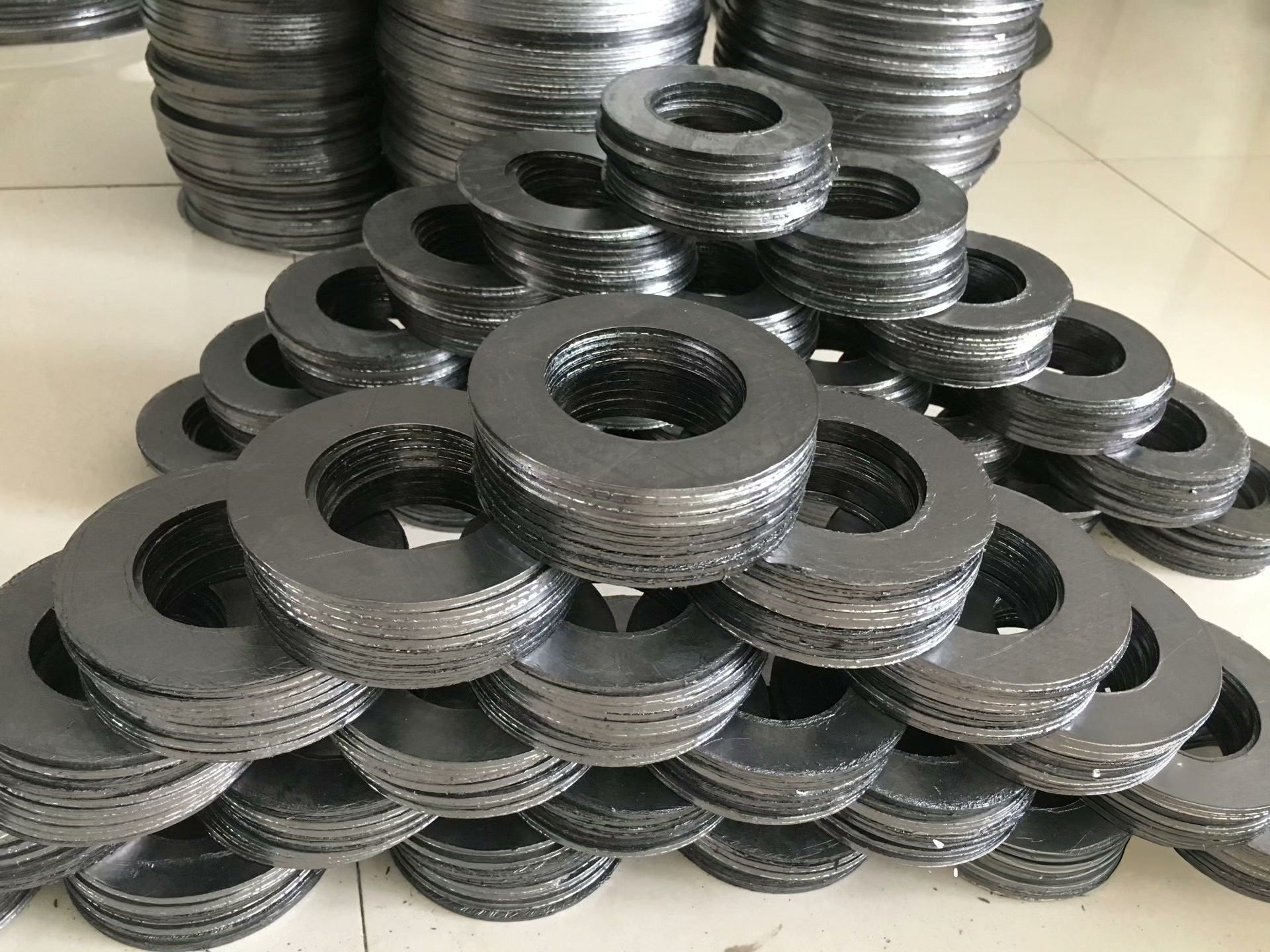

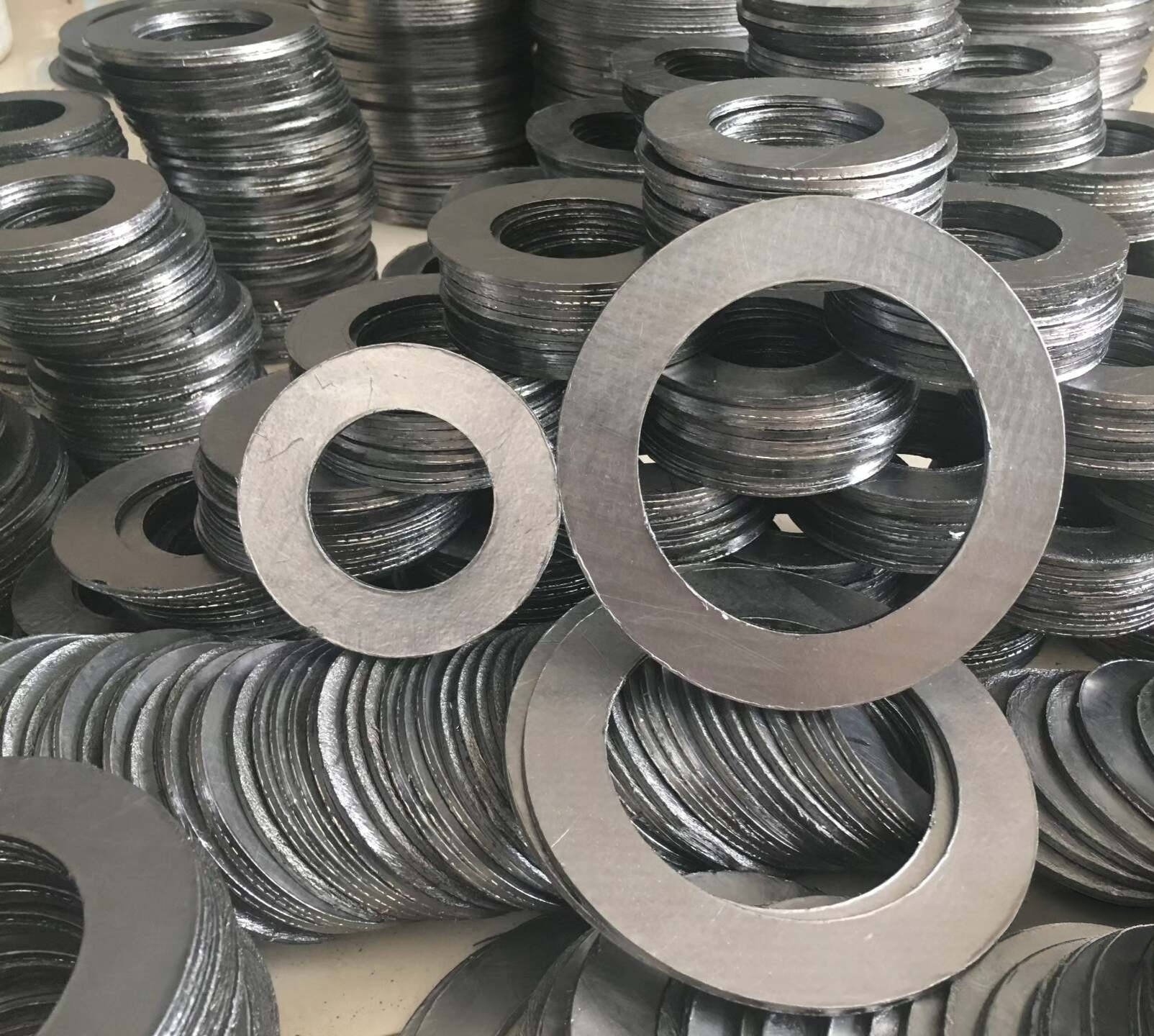

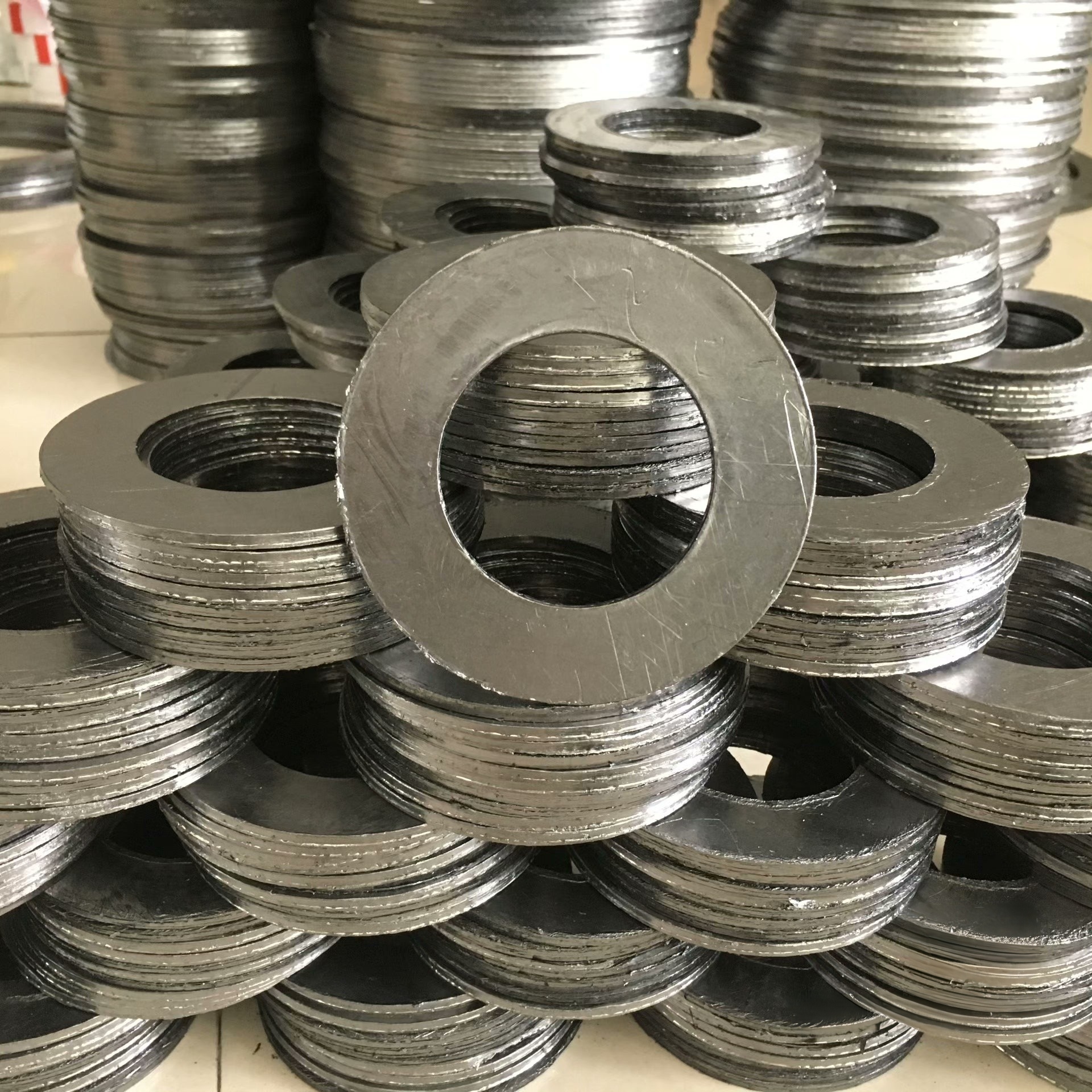

Flange Gaskets

• Precision laser-cut to match ASME B16.5 and custom flange dimensions.
• Suitable for pipeline connections, reactor closures, and vacuum chamber flanges.
• Corrugated or reinforced structures improve sealing on uneven or aged mating surfaces.

Valve Body & Vacuum Chamber Seals

• Integrated into valve housings for leak prevention in oil refining, chemical synthesis, and low-temperature processing.
• Ideal for deep-cryogenic vacuum systems, high-purity gas delivery, and petrochemical processing units.

Compliance & Quality Testing

• Meets API 607 fire safety requirements for hydrocarbon processing valves.
• Compliant with ASME BPVC Section VIII for pressure vessel sealing systems.
• Tested in accordance with:
  • ASTM F137 – gas leakage performance
  • ASTM F38 – compression stress relaxation
  • NACE TM0177 – chemical compatibility and corrosion resistance

• Graded according to JB/T 53392-1993 for industrial graphite sealing materials.

Why Choose Our Precision-Cut Graphite Gaskets?

• Long Service Life: Stable performance reduces maintenance frequency, with reliable operation exceeding 15 years in continuous service.
• Cost Efficiency: Minimizes unplanned downtime, leakage losses, and replacement costs.
• Custom Engineering: Supports laser cutting for complex geometries, PTFE coating, and metal reinforcement.
• Technical Support: Provides FEA (finite element analysis) for optimized sealing design in critical valves and vacuum equipment.
• Flexible Procurement: Primarily serves factory and enterprise procurement in chemical and petrochemical industries; individual orders are also accepted with freight borne by the buyer. All shipments are dispatched exclusively from China.
