Detail Information

Grade:	Industrial Grade	Type:	Flexible Sheet,Composite Sheet,Reinforced Sheet
Application:	High Temperature And High Pressure Sealing	C Content (%):	99.9%,99%
Thickness:	1.0mm	Material:	Graphite
Color:	Black	Density:	1.0 G/cm³
Hardness:	80 Shore A	Product Name:	Graphite Sheet
Shape:	Can Be Customized	Width:	≤1500 Mm
Sample:	Availble	Temperature Resistance:	High - Temperature Suitable
Recovery:	20%	Flexural Strength:	25 MPa
Reinforcement Material:	Metal	Sealing Performance:	Excellent
Pressure Range:	Up To 5000 Psi	Temperature Range:	-200°C To 650°C
Tensile Strength:	15 MPa	Compressibility:	40%
Chemical Resistance:	Resistant To Most Chemicals
Highlight:	Composite Reinforced Graphite Gasket Sheet , 80 Shore A Graphite Gasket Sheet , Refinery Grade Reinforced Graphite Sheet

Product Description

Refinery Grade Reinforced Graphite Composite Gasket with Tinplate: Premium Sealing for Industrial Needs

Searching for a top - tier Refinery Grade Reinforced Graphite Composite Gasket with Tinplate? Your search ends here! Our factory - direct products combine unrivaled quality with competitive pricing, designed to meet the demands of large - scale industrial buyers.

Product Highlights

Tailored Thickness: Our graphite gasket sheets are available in a versatile range of thicknesses, from 1.0mm to 6.0mm. As a best practice, select the thinnest option that aligns with your application requirements for optimal performance.

Robust Construction: Each gasket is expertly crafted with two layers of pure, flexible graphite sheets sandwiching a 0.2 - 0.25mm perforated metal insert. The metal insert, commonly 0.2 - 0.25mm carbon steel (also known as tinplate), can also be customized with options like ss201, 304, or 316. Choose from carbon contents of 95%, 97%, 98%, or 99% to suit your specific needs.

Key Advantages

Exceptional Adaptability: The Refinery Grade Reinforced Graphite Composite Gasket with Tinplate offers outstanding adaptability, ensuring a seamless fit across a wide array of industrial applications.

Long - Lasting Durability: Built to last, these gaskets provide reliable, long - term sealing performance, resistant to delamination and boasting a high yield rate.

Cost - Effective Solution: An economical choice for sealing applications, it's the ideal material for exhaust and manifold gaskets, delivering top - notch performance without breaking the bank.

Superior Oil Resistance: With excellent oil - resistance properties, it's the go - to option for applications where oil sealing is of utmost importance.

High - Temperature and Pressure Resilience: Engineered to withstand extreme high - temperature and high - pressure environments, making it perfect for steam cycling or exhaust applications.

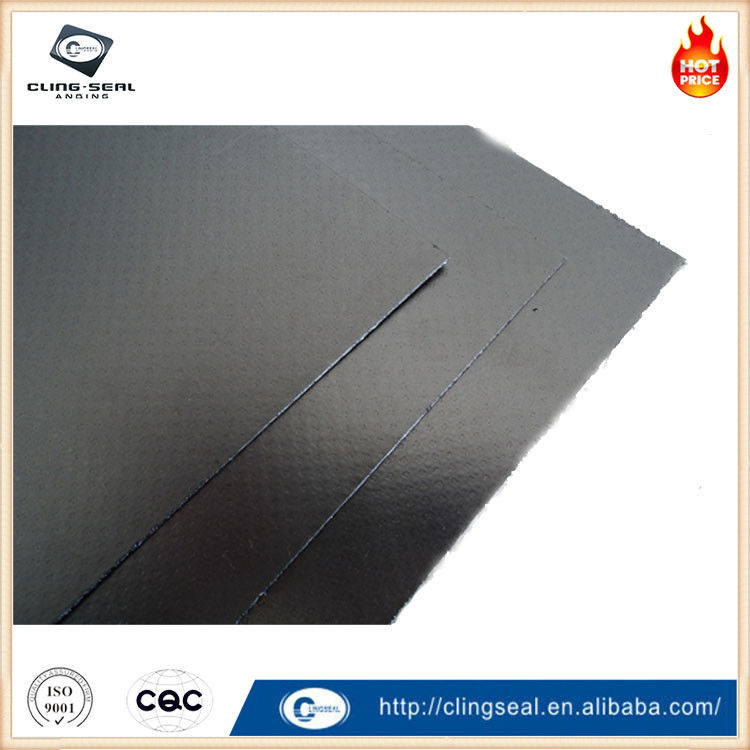

Refinery Grade Composite Reinforced Graphite Gasket Sheet 80 Shore A Hardness 0

Diverse Applications

These highly versatile gaskets are suitable for a broad spectrum of applications, including oil sealing, cylinder head gaskets, and other sealing requirements in high - temperature and high - pressure systems. Whether in refineries, power plants, or heavy - industrial machinery, our Refinery Grade Reinforced Graphite Composite Gasket with Tinplate delivers consistent performance.

Customizable Sizes

We offer a range of standard sizes, including 500500mm, 5001000mm, 5001500mm, 10001000mm, and 1000*1500mm. Additionally, we provide customized sizing options to meet your exact specifications. For thicker gaskets, we offer the 3 + 2 type (with product sections arranged as Paper - Metal - Paper - Metal - Paper from top to bottom) using advanced multi - paper bonding technology.

If you can't find the exact product you need or require a bespoke solution, don't hesitate to reach out. Our team is dedicated to helping you find the perfect sealing solution for your application. Unsure which material is best for your needs? Consult our comprehensive gasket material selector or our guide to rubbers.

Invest in the Refinery Grade Reinforced Graphite Composite Gasket with Tinplate today and experience a new standard in high - quality sealing!

Physical Property:

Item		Data
Tensile Strength (MPa,min.)		≥30
Compressibility (%,)		10-20
Recovery (%)		≥35
150ºC, At IRM 903# for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
21ºC~30ºC, At B Fuel for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
Thickness Deviation(mm)		0.05

Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

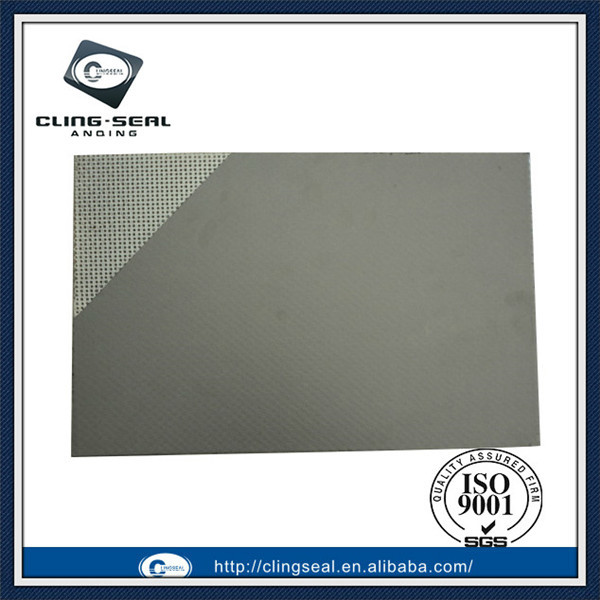

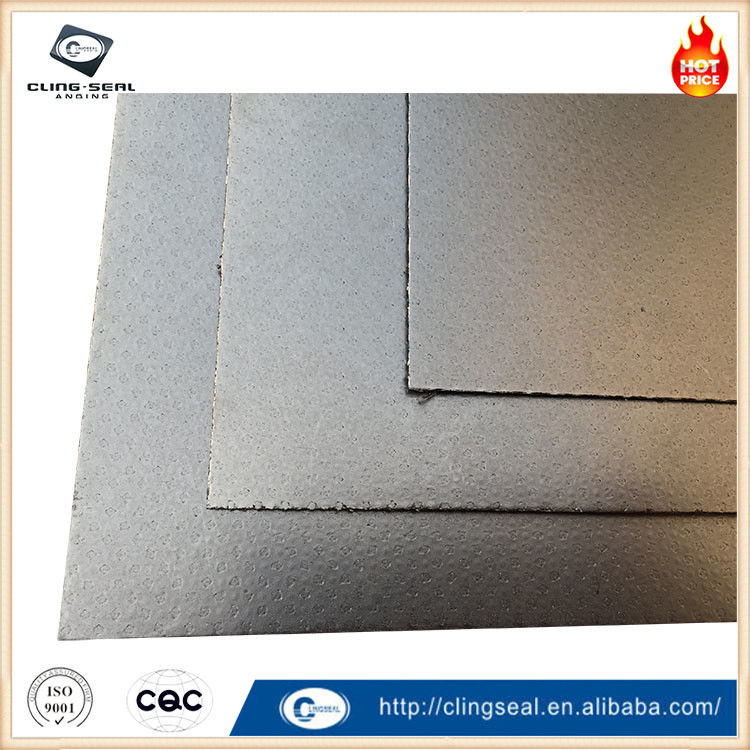

Product Shows

About Us

Tag:

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	CS1080T

Minimum Order Quantity:	500KGS
Price:	USD 2.15-3.0 PER KG
Packaging Details:	pallets or wooden case
Delivery Time:	1-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100Tons per month
