Detail Information

Grade:	Industrial Grade	Type:	Gasket Sheet
Application:	Gaskets	C Content (%):	99.9%,99%
Thickness:	1/16 Inch	Material:	Reinforced Graphite
Color:	Black	Density:	1.5 G/cm3
Product Name:	Graphite Sheet	Width:	≤1500 Mm
Sample:	Availble	Temperature Resistance:	High - Temperature Suitable
Sealing Performance:	Excellent Sealing Performance	Thermal Conductivity:	0.5 W/mK
Flexibility:	Flexible And Easy To Install	Compressive Strength:	5000 Psi
Temperature Range:	-400°F To 850°F	Tensile Strength:	2000 Psi
Corrosion Resistance:	Highly Resistant To Corrosion	Pressure Range:	Up To 2000 Psi
Highlight:	Reinforced Graphite Gasket Sheet Roll , 1/16 inch Thickness Graphite Sheet Roll , Rolled Format Graphite Gasket Sheet

Product Description

Rolled Format Reinforced Graphite Composite Gasket

Premium Rolled Format Reinforced Graphite Composite Gaskets for Demanding Applications
Optimize your industrial sealing systems with our high-performance Rolled Format Reinforced Graphite Composite Gasket, engineered to excel in extreme conditions. Designed for durability and precision, these gaskets combine flexible graphite layers with a perforated metal core, delivering unmatched reliability in high-temperature and high-pressure environments.

Why Choose Our Reinforced Graphite Composite Gasket?

Superior Sealing Performance: Dual-layer pure graphite sheets (95%-99% carbon content) bonded to a 0.2–0.25mm perforated metal insert (tinplate, SS201/304/316) ensure leak-free operation and resistance to thermal cycling.
Extreme Environment Adaptability: Ideal for steam systems, exhaust manifolds, and oil sealing applications where temperatures and pressures exceed standard limits.
Cost-Effective & Durable: Anti-delamination design extends service life, while multi-layer bonding technology allows thickness customization up to 6.0mm (e.g., 3+2 composite structures).
Versatile Sizing: Standard dimensions include 500x500mm to 1000x1500mm, with fully customizable cuts to meet unique project requirements.

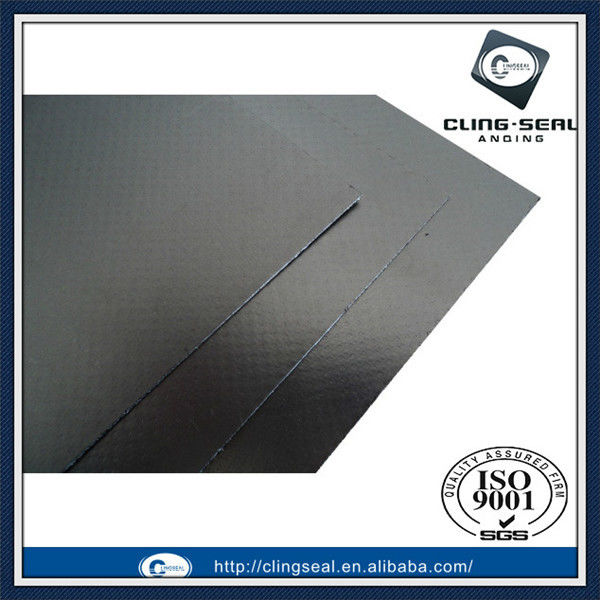

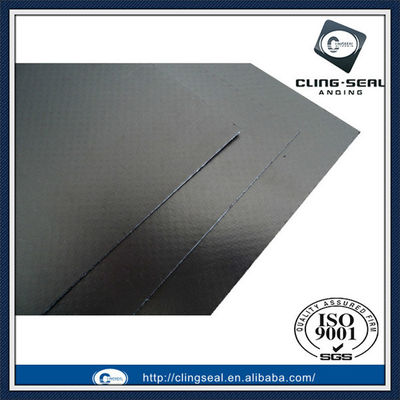

Composite Reinforced Graphite Gasket Sheet Rolled Format 1/16 inch Thickness 0

Key Technical Specifications

Thickness Range: 1.0–6.0mm (optimal performance at 1.0–3.0mm for most applications).
Core Materials: Carbon steel, stainless steel (201/304/316).
Temperature Resistance: Withstands continuous exposure up to 450°C (842°F).
Chemical Compatibility: Excellent resistance to oils, steam, and corrosive media.

Ideal Applications

Industrial: Cylinder head gaskets, exhaust systems, pipeline flanges.
Energy & Utilities: Steam turbines, heat exchangers, power generation equipment.
Automotive: High-performance engine sealing, manifold gaskets.

Customization & Support
Can’t find the exact size or material configuration? Our team specializes in bespoke Reinforced Graphite Composite Gasket solutions. Submit your requirements for tailored thickness, metal core grades, or non-standard dimensions.

Expert Guidance Available
Unsure if graphite is the right material for your application? Explore our interactive Gasket Material Selector Tool or consult our engineering team for personalized recommendations.

Order Now: Select the thinnest feasible gasket thickness for optimal performance and cost efficiency. Stock available for fast global shipping.

Physical Property:

Item		Data
Tensile Strength (MPa,min.)		≥30
Compressibility (%,)		10-20
Recovery (%)		≥35
150ºC, At IRM 903# for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
21ºC~30ºC, At B Fuel for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
Thickness Deviation(mm)		0.05

Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

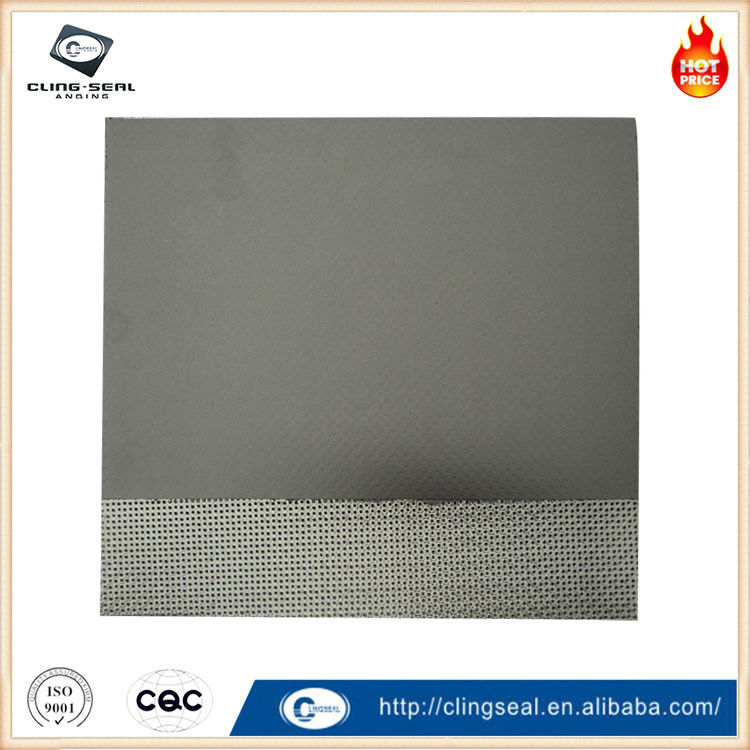

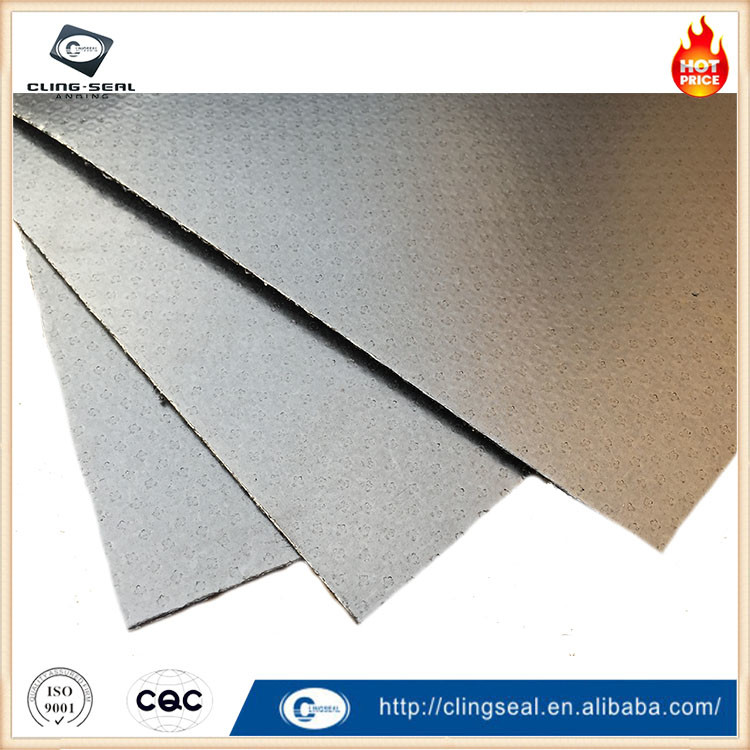

Product Shows

About Us

Tag:

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	CS1080T

Minimum Order Quantity:	500KGS
Price:	USD 2.15-3.0 PER KG
Packaging Details:	pallets or wooden case
Delivery Time:	1-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100Tons per month
