Flat Non Asbestos Joint Sheet Gasket Injection Rubber Plastic Non Standard Gasket

Basic Information

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	NXB150

Minimum Order Quantity:	500KGS
Price:	1.5-4 USD PER KG
Packaging Details:	pallets or wooden case
Delivery Time:	10-20 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200Tons per month

Get Best Price Contact Now

Detail Information

Color:	Black	Material:	Non Asbestos Fiber, Rubber, Filler
Application:	Suitable For Sealing Various Fluids And Gases In Industrial Equipment	Density:	1.5-2.0 G/cm³
Compressibility:	7-17%	Recovery:	35%
Working Temperature:	150Deg	Pressure Range:	Up To 150 Bar
Sealing Performance:	High	Chemical Resistance:	Good
Feature:	100% Not Including Asbestos	Usual Color:	Green, Blue, Black, Red
Elongation At Break:	150-200%	Tensile Strength:	7-10 MPa
Temperature Range:	-100°C To 550°C	Pressure:	2.0-5.0Mpa
Fluid Resistance:	Excellent
Highlight:	Non Asbestos Joint Sheet Gasket , Flat Non Asbestos Joint Sheet , Non Standard Rubber Joint Sheet Gasket

Product Description

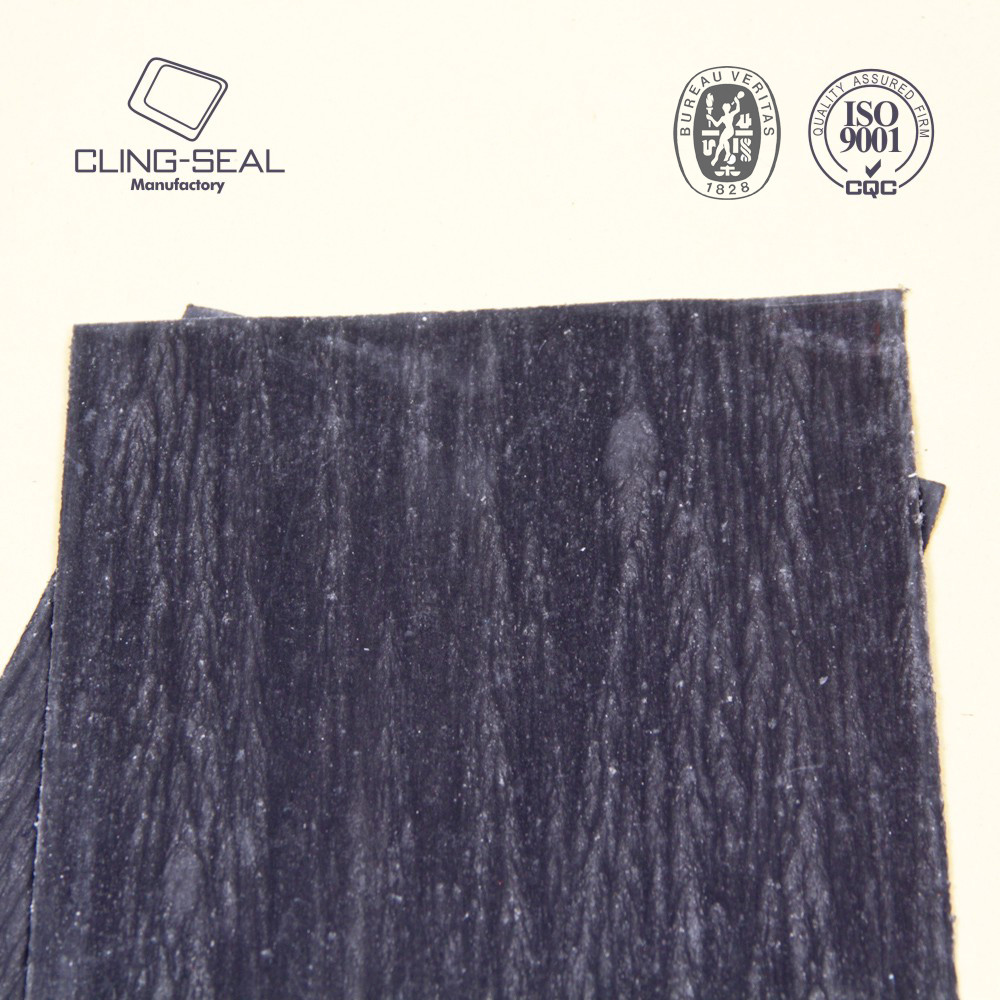

Flat Non Asbestos Joint Sheet Gasket Injection Rubber Plastic Non Standard Gasket 0

Standard Size/Custom Size Non - Asbestos Joint Sheet Gasket, Injection Non - standard Rubber Gasket, Plastic Gasket, Flat Gasket

On this page, you have the opportunity to procure non - asbestos jointing gasket sheets with a thickness ranging from 0.5mm to 5mm. As a general guideline, it is advisable to choose the thinnest material that can meet the requirements of your specific application. This not only helps in cost - efficiency but also can potentially enhance the overall performance of your equipment.

General Properties of Non - asbestos Jointing Gasket Sheet

The non - asbestos jointing gasket sheet is produced by compressing aramid fiber and NBR. It exhibits outstanding oil - resistant capabilities. Moreover, it is well - suited for applications where it may come into contact with substances like water, petrol, or natural gas.

The following table summarizes the general properties and suitable application media:

Property	Details
Oil Resistance	Excellent
Applicable Media	Water, Petrol, Natural Gas

Due to these properties, non - asbestos jointing gaskets are widely utilized in various settings. They are commonly found in air compressors, diesel engines, pipelines, and are suitable for a broad range of general industrial and marine environments.

Product Information

The gasket is crafted from a combination of aramid fiber, non - asbestos mineral fiber, synthetic fiber, and synthetic oil - resistant rubber. The manufacturing process involves hot - roller compression followed by vulcanization, which ensures the product's high - quality and long - lasting performance.

Product Types

Based on different temperature resistance levels (the numbers represent peak temperatures), the product comes in the following types:

Product Type	Peak Temperature
CSNXB150	150°C
CSNXB250	250°C
CSNXB350	350°C

Product Features

Superior Adaptability and Durability: The gasket shows great adaptability to different working conditions and has remarkable durability. It offers excellent sealing performance, preventing any leakage. There is no risk of delamination during use, and it has a high yield rate, which means less waste during production and installation.
Economical Solution: It serves as an economical option for sealing gaskets and exhaust, manifold gasket materials. You can achieve high - quality sealing at a reasonable cost.
Quality Assurance: Certified by ISO9001 UKAS, the product is 100% asbestos - free, ensuring environmental friendliness and safety for users.
Outstanding Oil - Resistance: It has good resistance to oil, which extends its service life in oil - related applications.

Product Application

The gasket is suitable for a variety of applications, including:

Engine: Ensures proper sealing in engines, preventing oil and gas leakage and maintaining engine efficiency.
Air Compressor: Helps in maintaining airtightness in air compressors, improving their performance.
Gearbox: Provides reliable sealing in gearboxes, protecting the internal components from contaminants.
Pipe Line and Flange Sealing: Used for sealing pipelines and flanges, preventing fluid leakage in industrial and other systems.

Product Size

Thickness: The thickness of the gasket ranges from 0.5mm to 5.0mm, allowing you to select the most appropriate thickness according to your needs.
Standard Sizes: We offer several standard sizes, including 15001500mm, 15002000mm, 15004500mm, 12701270mm, and 1270*3810mm.
Customization: In addition to the standard sizes, we also accept custom - sized orders. You can provide your specific size requirements, and we will manufacture the gasket to meet your exact specifications.

Physical Property:

Items			CSNXB150	CSNXB250	CSNXB350
Tensile Strength		Mpa	7.0	8.0	10.0
Compressibility		%	7-17
Recovery		≥%	40	45	50
Creep relaxation		≤%	40	35	30
Density		g/cm3	1.8±0.1
Flexibility at room temperature		Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h	Tensile Strength	MPa≥	5.0	6.0	7.0
Immersed into ASTM 3# at 150ºC for 5h	Weight Increase	≤%	30
Immersed into ASTM B at21-30ºC for 5h	Thickness Increase	-	0-20
Immersed into ASTM B at21-30ºC for 5h	Flexibility	-	No crack
Working Temperature	Max/Continuous	ºC	200/150	300/250	350/300
Working Pressure	Max/Continuous	MPa	2.0/1.0	4.0/2.0	5.0/3.0

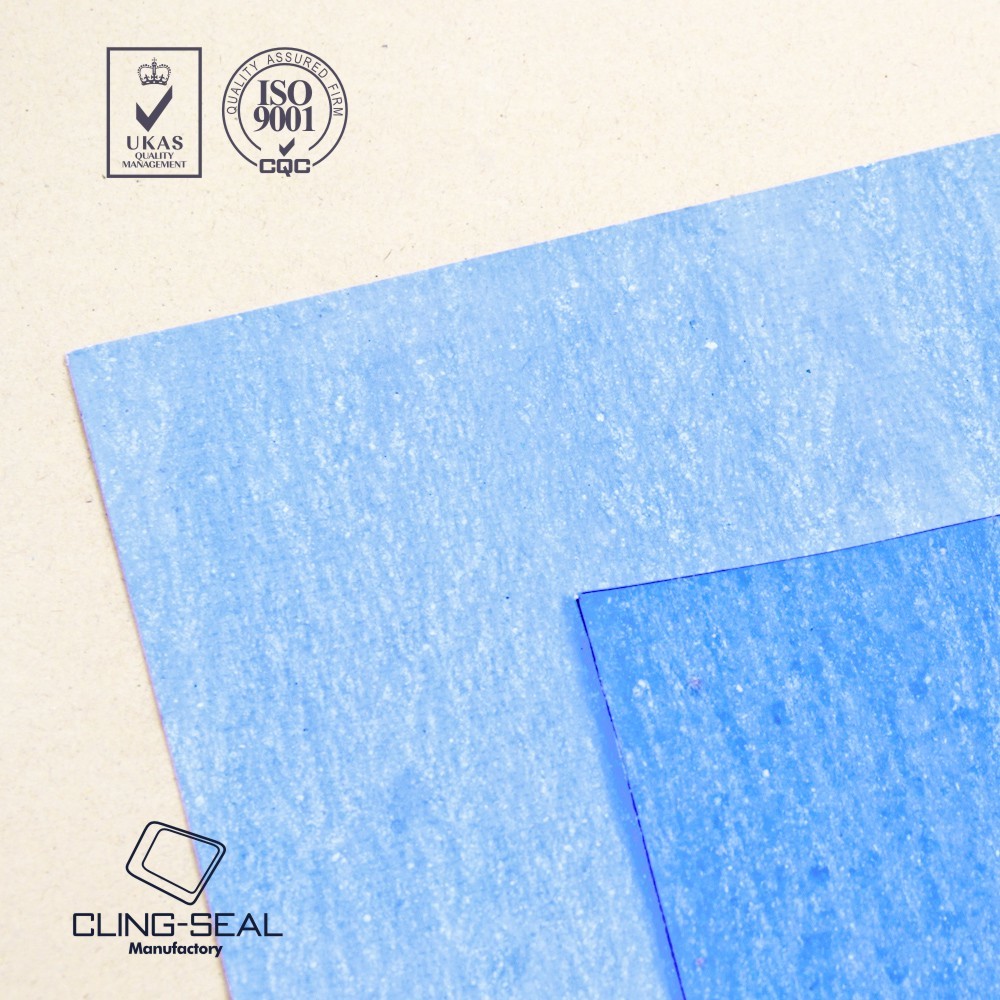

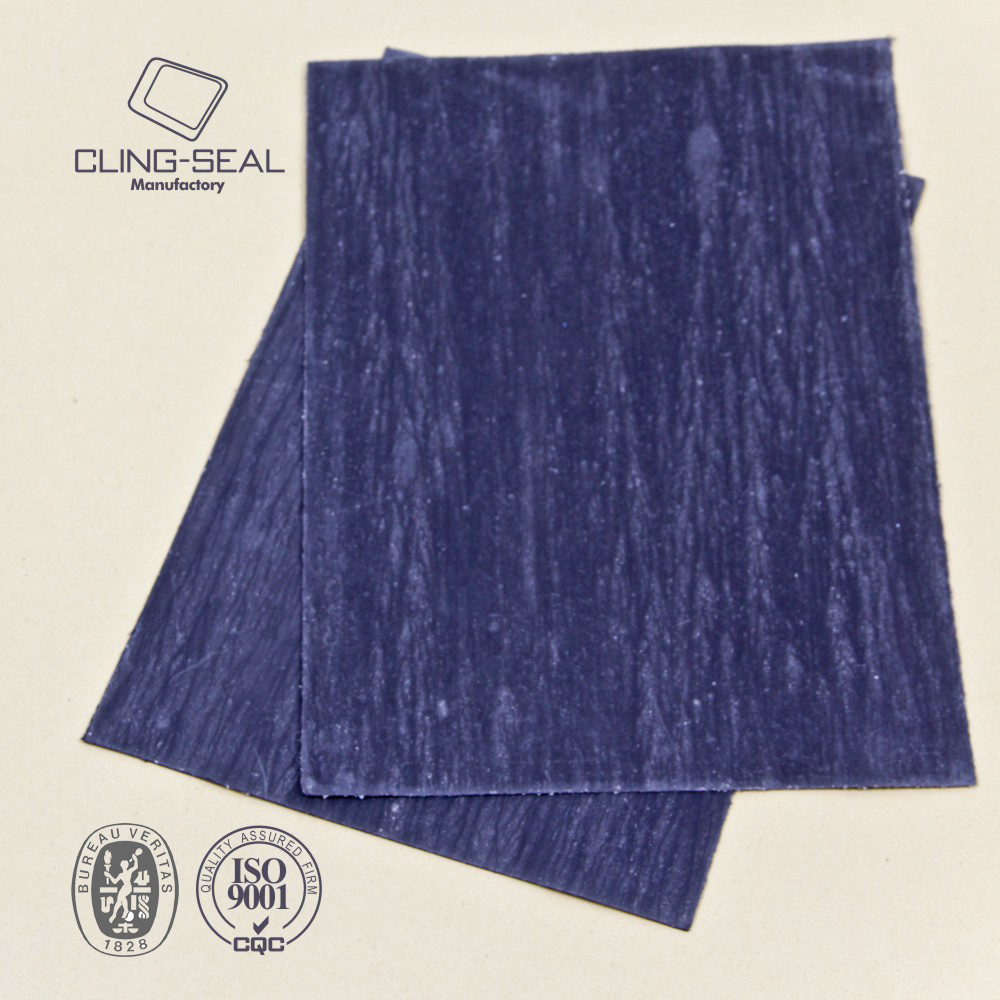

Product Shows

Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil

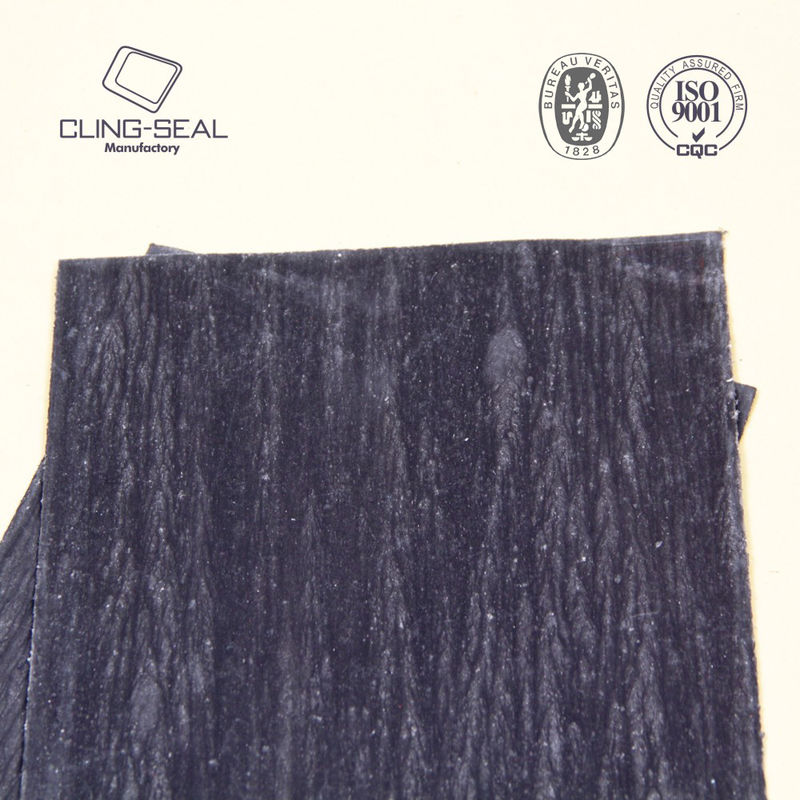

Flat Non Asbestos Joint Sheet Gasket Injection Rubber Plastic Non Standard Gasket 5

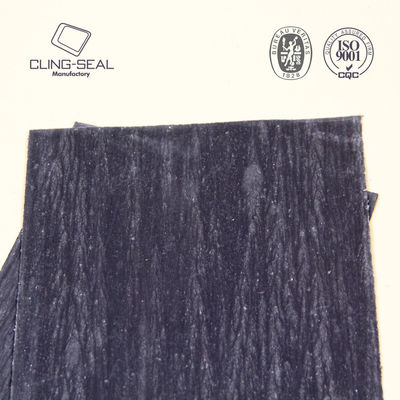

Flat Non Asbestos Joint Sheet Gasket Injection Rubber Plastic Non Standard Gasket 6
