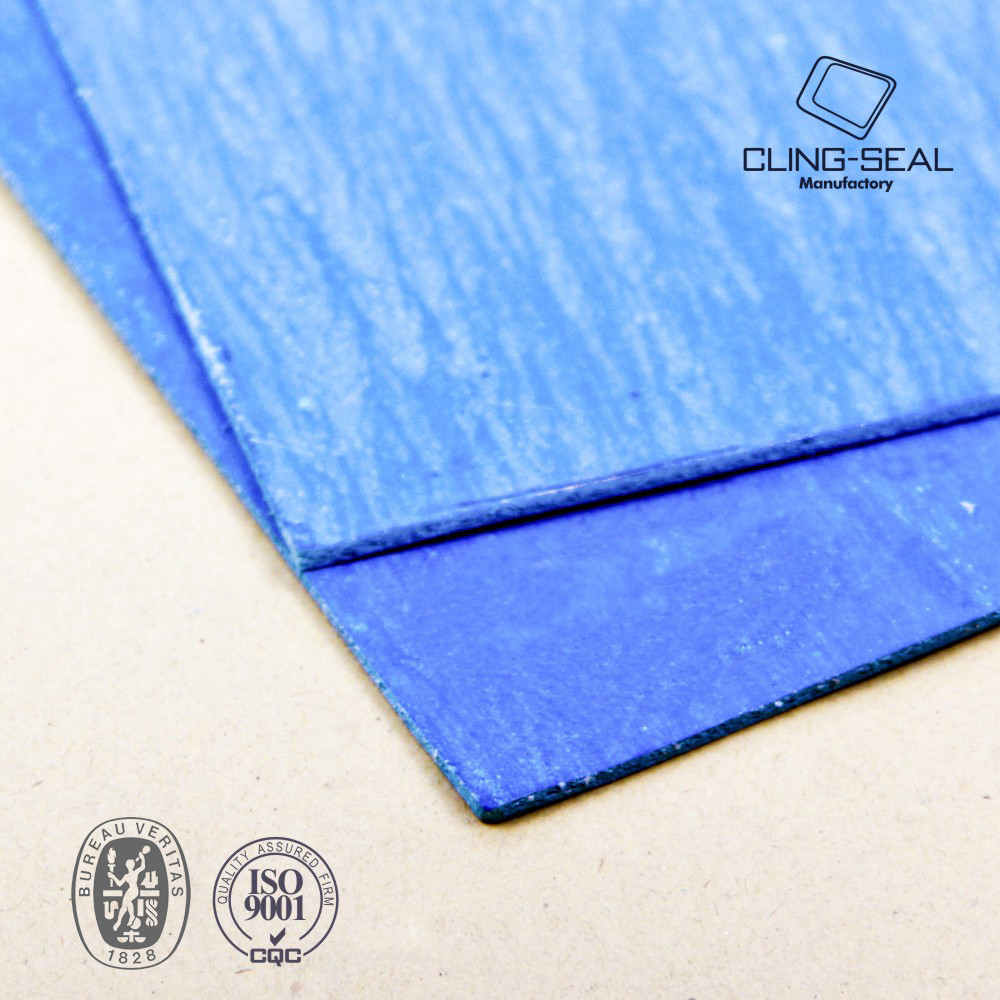

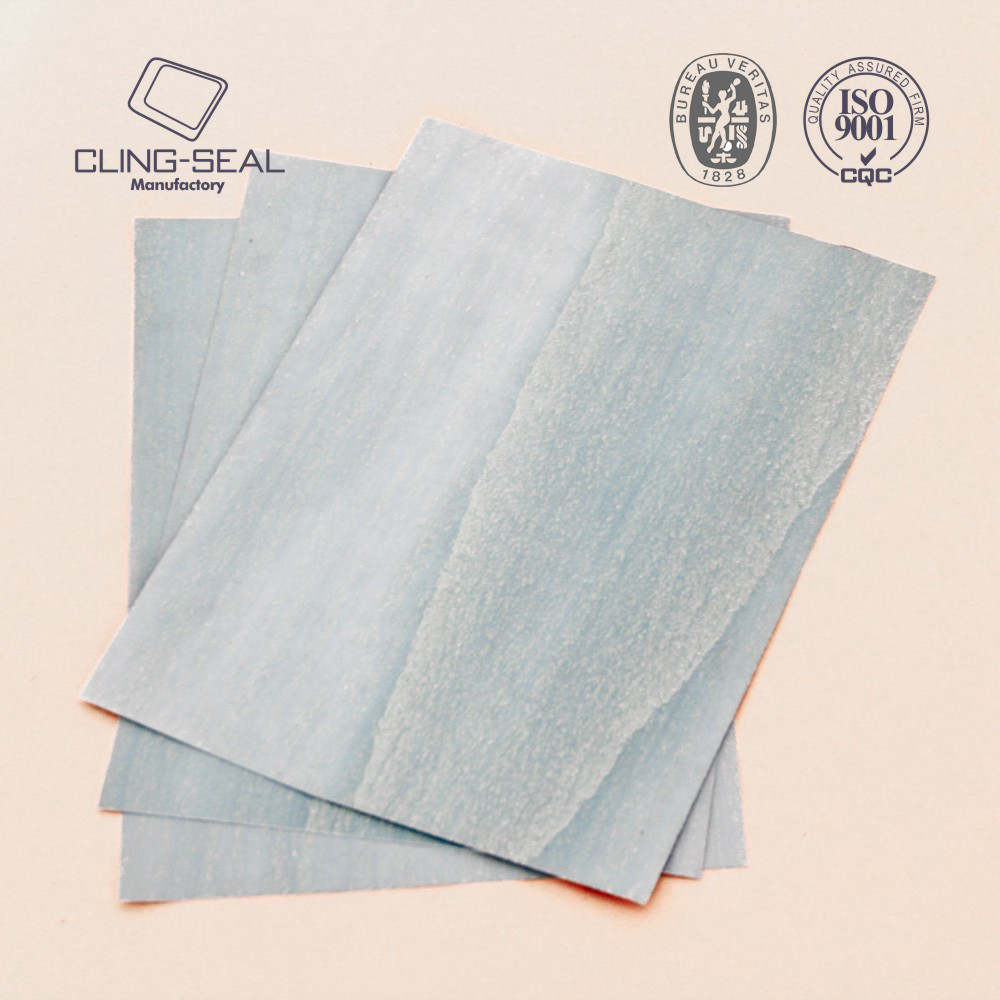

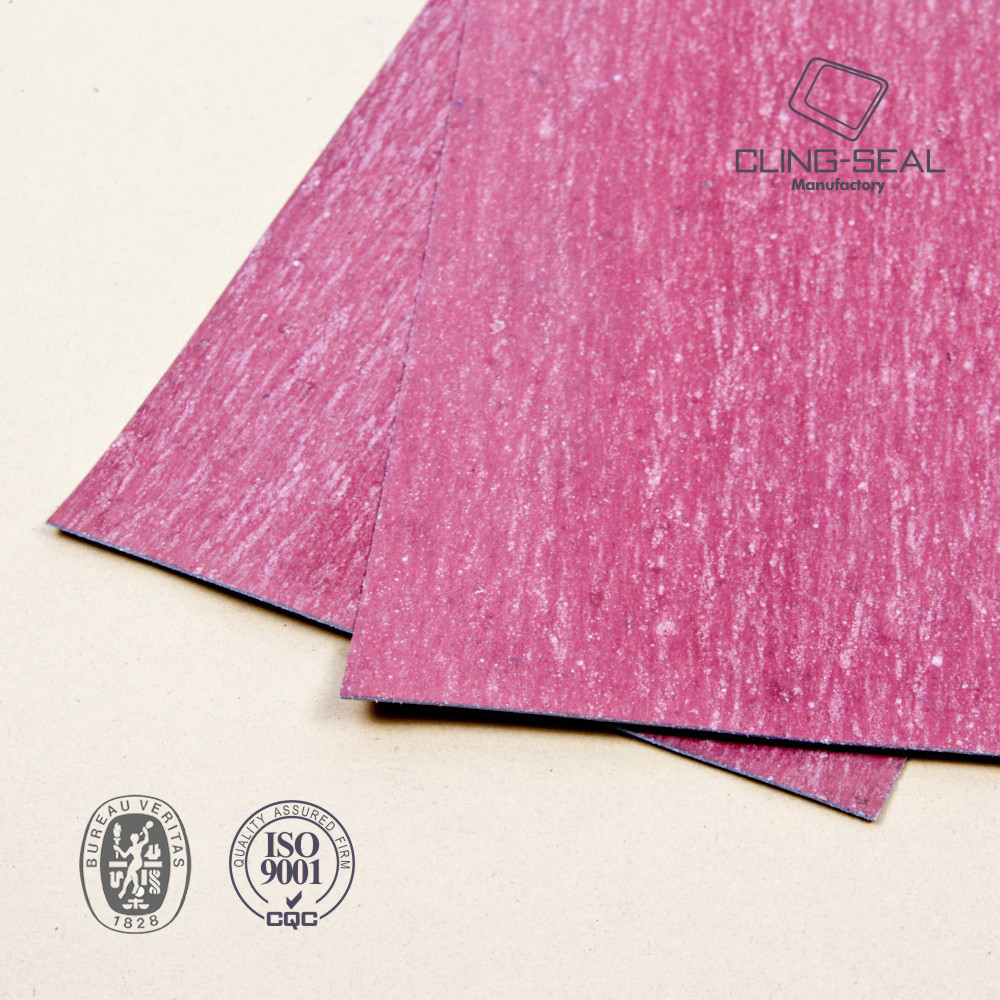

Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges

quality Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges factory
quality Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges factory
quality Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges factory
quality Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges factory
Product Specification
Place of Origin: CHINA
Brand Name: CLINGSEAL
Certification: ISO,SGS
Model Number: NXB150
Minimum Order Quantity: 500KGS
Price: 1.5-4 USD PER KG
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200Tons per month
Product Details
Highlight:

Pipe Seals Non Asbestos Gasket

,

Compressed Non Asbestos Gasket

,

Flanges Non Asbestos Gasket
Color: Red,Green,Black
Material: Non Asbestos
Application: Sealing
Density: 1.5 G/cm3
Compressibility: 7-17%
Recovery: 40-50%
Working Temperature: 150Deg
Thickness: 1.5mm - 5mm
Temperature: 200-500 Celsius Degrees
Hardness: 70-80 Shore A
Feature: Wide Range Of Temperatures
Oil Resistance: Good
Steam Resistance: Good
Elongation At Break: 200%
Pressure: 2.0-5.0Mpa
Pressure Range: Up To 150 Bar
Water Resistance: Good
Usual Color: Green, Blue, Black, Red
Tensile Strength: 12 MPa
Product Description

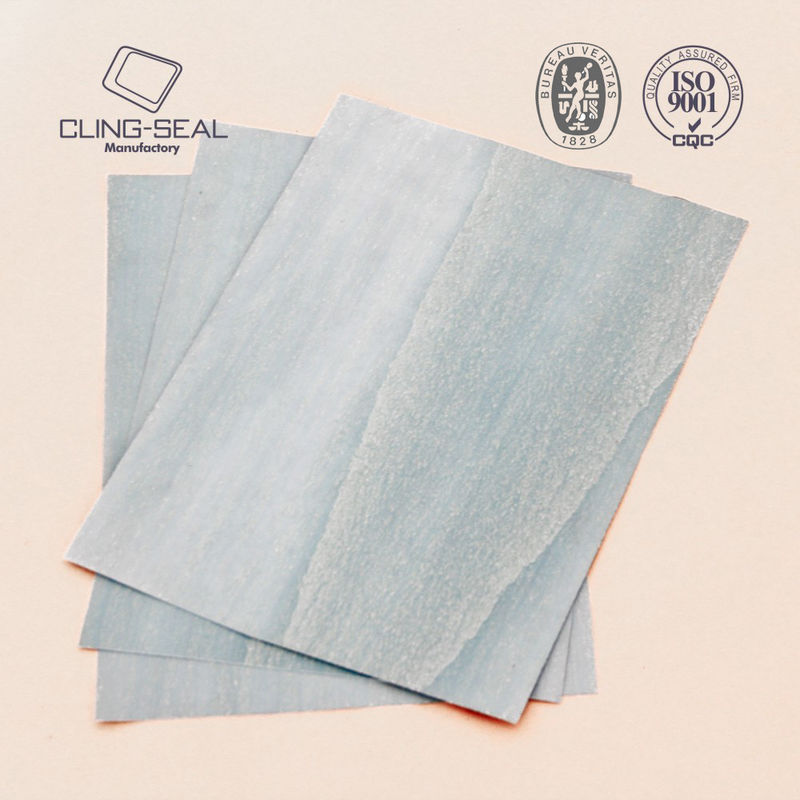

Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 0

Non-asbestos Compressed Gaskets for High-pressure Pipe Seals with Non-asbestos Flanges

On this page, you have the opportunity to buy non - asbestos jointing gasket sheets. The thickness of these sheets ranges from 0.5 mm to 5 mm. As a general guideline, it's advisable to choose the thinnest material that can effectively meet the requirements of your specific application.

General Characteristics of Non - asbestos Jointing Gasket Sheets

These non - asbestos jointing gasket sheets are produced by compressing aramid fiber and NBR. They possess remarkable oil - resistant capabilities. Moreover, they are highly suitable for applications where they come into contact with substances like water, petrol, or natural gas.



Here is a table summarizing the general properties:



Property Description
Oil Resistance Very good
Suitability for Contact with Substances Water, petrol, natural gas



Due to these properties, non - asbestos jointing gaskets find wide usage in various settings. They are commonly employed in air compressors, diesel engines, pipelines, and numerous general industrial and marine environments.

Product Details

  1. Composition: The gaskets are crafted from a combination of aramid fiber, non - asbestos mineral fiber, synthetic fiber, and synthetic oil - resistant rubber. They are manufactured through a process of hot - roller compression and vulcanization.
  2. Product Types: Based on different temperature tolerances (the numbers indicate the peak temperature), there are the following types available:
    • CSNXB150
    • CSNXB250
    • CSNXB350
  3. Product Features:
    • Excellent Adaptability and Durability: These gaskets offer good adaptability to different working conditions and have high durability. They provide reliable sealing performance, do not delaminate easily, and have a high yield rate.
    • Economical Solution: They serve as an economical choice for sealing gaskets and exhaust, as well as manifold gasket materials.
    • Certified and Asbestos - Free: They are certified by ISO9001 UKAS, ensuring that they are 100% asbestos - free.
    • Outstanding Oil Resistance: They exhibit excellent resistance to oil, which is crucial for many applications.
  4. Product Applications:
    • Engines
    • Air compressors
    • Gearboxes
    • Pipeline and flange sealing
  5. Product Sizes:
    • The thickness of the gaskets can range from 0.5 mm to 5.0 mm.
    • Standard sizes include 15001500 mm, 15002000 mm, 15004500 mm, 12701270 mm, and 1270*3810 mm.
    • Additionally, we can customize the size according to the clients' specific requirements.

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 1Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 2Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 3Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 4

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil



Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 5

Seals Compressed Non Asbestos Gasket With Non Asbestos Flanges 6
