High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
Pumps Engines Gasket Sheet
,Heat Resistant Gasket Sheet
,Latex Fiber Gasket Sheet
- Non-Asbestos and Certified: Safety is paramount, and this gasket sheet is 100% asbestos-free, providing a secure working environment. It's also certified by ISO9001 UKAS, a testament to its high quality and adherence to strict manufacturing standards.
- Superior Sealing: It forms a tight seal, effectively preventing the leakage of fluids and gases. Notably, it doesn't delaminate, which is vital for maintaining a consistent seal over time. The high production yield rate guarantees a quality product.
- Heat and Oil Resistance: As highlighted in the title, it excels in heat resistance, making it suitable for high-temperature environments. Its excellent oil resistance also makes it perfect for applications where oil is present.
- Durable and Adaptable: Built to last, this gasket sheet can withstand mechanical vibrations, pressure changes, and temperature fluctuations without losing its sealing ability. Its adaptability to different working conditions ensures a long service life, reducing the need for frequent replacements.
- Economical: Whether used in pumps, engines, or flanges, it offers a cost-effective solution. You don't have to compromise on performance to save money.
- Engines: In engines, it seals various components, preventing the leakage of oil, coolant, and exhaust gases. This helps the engine operate efficiently and reduces the risk of damage.
- Pumps: It plays a key role in pumps by sealing crucial parts, preventing fluid leakage and ensuring efficient pump operation.
- Flanges: When used on flanges, it creates a tight seal, stopping the leakage of fluids and gases. This is essential for the safe and efficient operation of flange connections.
- Other Areas: Beyond pumps, engines, and flanges, it's also suitable for air compressors, gearboxes, and pipelines, contributing to their smooth and reliable operation.
Physical Property:
| Items | CSNXB150 | CSNXB250 | CSNXB350 | ||
| Tensile Strength | Mpa | 7.0 | 8.0 | 10.0 | |
| Compressibility | % | 7-17 | |||
| Recovery | ≥% | 40 | 45 | 50 | |
| Creep relaxation | ≤% | 40 | 35 | 30 | |
| Density | g/cm3 | 1.8±0.1 | |||
| Flexibility at room temperature | Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack. | ||||
| Immersed into ASTM 3# at 150ºC for 5h | Tensile Strength | MPa≥ | 5.0 | 6.0 | 7.0 |
| Weight Increase | ≤% | 30 | |||
| Immersed into ASTM B at21-30ºC for 5h | Thickness Increase | - | 0-20 | ||
| Flexibility | - | No crack | |||
| Working Temperature | Max/Continuous | ºC | 200/150 | 300/250 | 350/300 |
| Working Pressure | Max/Continuous | MPa | 2.0/1.0 | 4.0/2.0 | 5.0/3.0 |

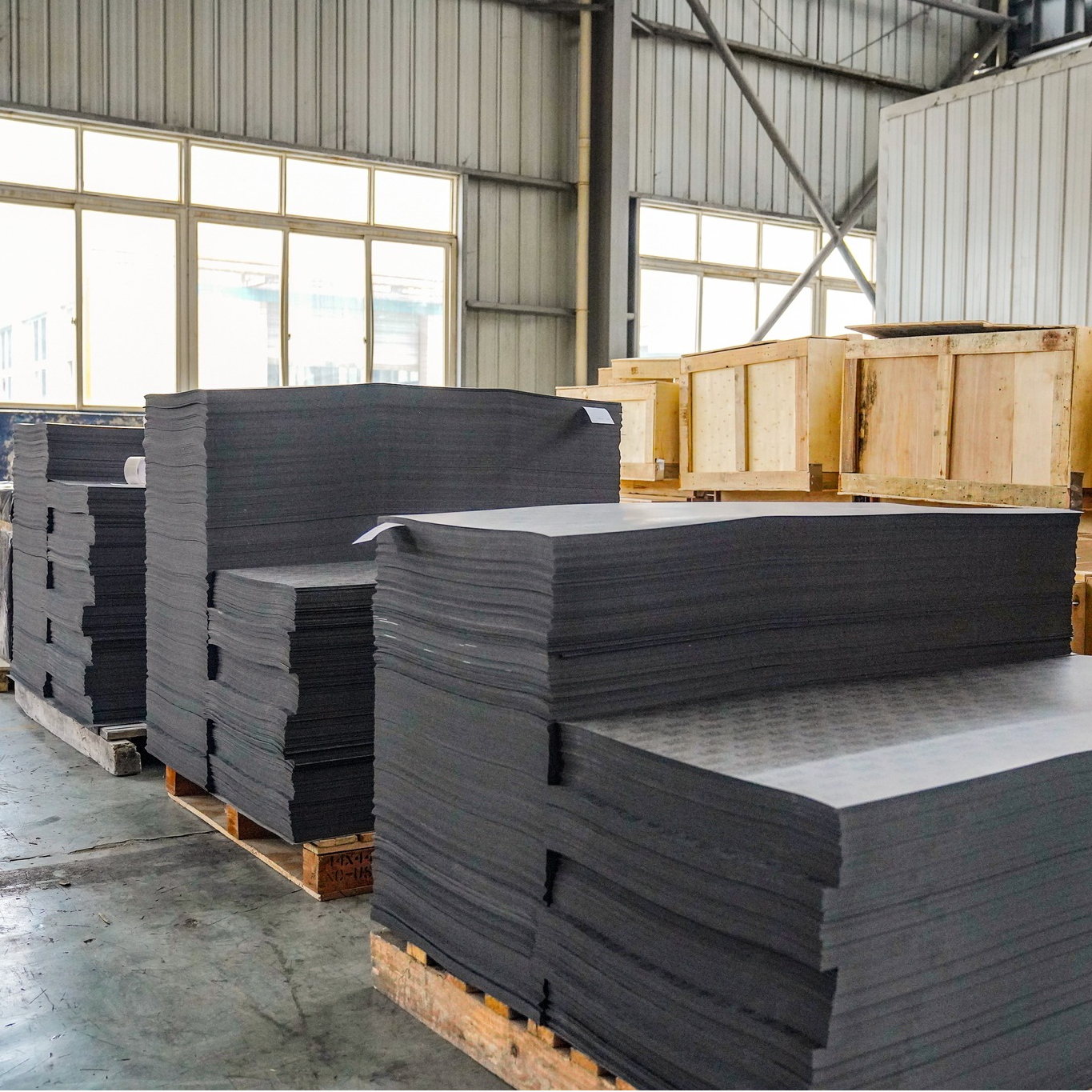

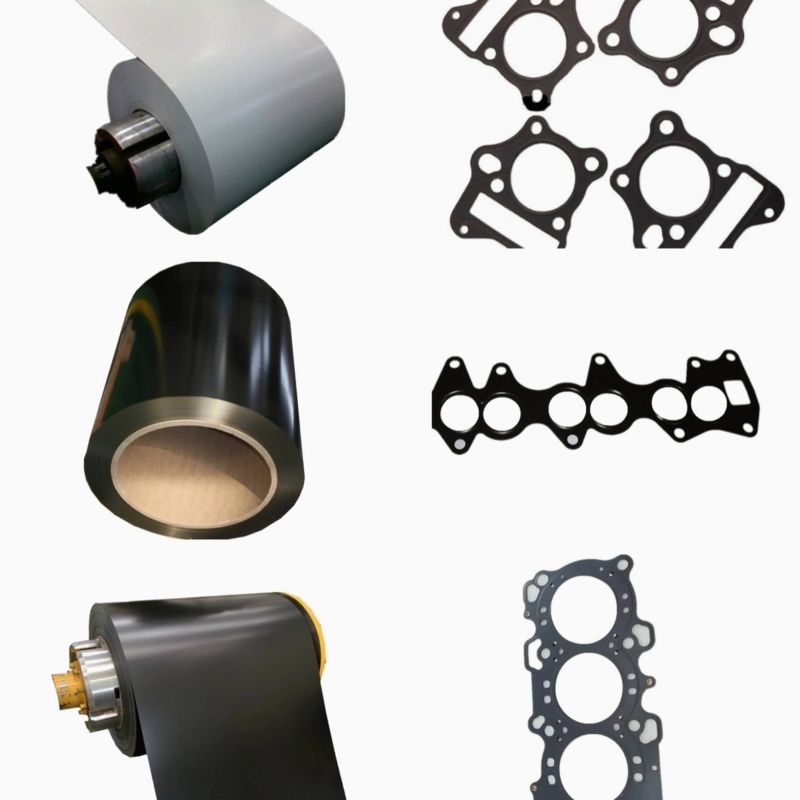

Product Shows
Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
-
