Reinforced Graphite Composite Gasket with Tinplate Product Description
Conductive Graphite Gasket Sheets for Specialized Applications
Premium Sealing Solutions for High-Temperature, High-Pressure Environments
Looking for conductive graphite gasket sheets engineered for extreme conditions? Our precision-manufactured graphite gasket sheets deliver superior performance in specialized applications requiring reliable sealing under high temperatures, pressures, and corrosive environments. Available in thicknesses from 1.0mm to 6.0mm, including custom multi-layer configurations (e.g., 3+2 paper-metal composites), our products are designed to meet the most demanding industrial needs.
Key Features & Benefits
✅ Exceptional Durability: Constructed with dual-layer flexible graphite sheets and a 0.2–0.25mm perforated metal insert (carbon steel/tinplate, SS201, SS304, or SS316), ensuring no delamination or leakage.
✅ High-Temperature Resistance: Withstands up to 800°C, making them ideal for steam systems, exhaust manifolds, and engine components.
✅ Cost-Effective Sealing: Balances affordability with premium performance, reducing maintenance downtime and replacement costs.
✅ Chemical & Oil Resistance: Resilient against hydrocarbons, acids, and aggressive fluids, ensuring long-term reliability.
✅ Customizable Options: Tailored thicknesses, sizes (standard: 500x500mm to 1000x1500mm), and materials (95–99% carbon content) to fit unique specifications.
Why Choose Our Graphite Gasket Sheets?
• ISO 9001-Certified Quality: Stringent quality control ensures consistent performance across every batch.
• Versatile Applications: Perfect for automotive exhaust systems, industrial boilers, aerospace engines, and chemical processing equipment.
• Expert Technical Support: Unsure about material selection? Use our gasket material selector or consult our rubber guide for tailored recommendations.
Technical Specifications
- Material: Flexible graphite with metal reinforcement (carbon steel, stainless steel).
- Thickness: 1.0mm–6.0mm (custom multi-layer options available).
- Sizes: Standard and custom-cut dimensions to minimize waste.
- Carbon Content: 95%, 97%, 98%, or 99% for specialized conductivity and resistance.
Need a Bespoke Solution?
Contact our team for custom graphite gasket sheets designed to your exact requirements. Whether you need non-standard thicknesses, unique shapes, or hybrid materials, we provide rapid prototyping and competitive pricing.
Optimize Your Sealing Performance Today
Browse our range of conductive graphite gasket sheets and experience reliable, long-lasting sealing for specialized applications. Order now or request a quote for bulk purchases!
Physical Property:
| Item |
Data |
| Tensile Strength (MPa,min.) |
≥30 |
| Compressibility (%,) |
10-20 |
| Recovery (%) |
≥35 |
| 150ºC, At IRM 903# for 5hours |
Thickness Increase(%) |
≤10 |
| Weight Increase(%) |
≤10 |
| 21ºC~30ºC, At B Fuel for 5hours |
Thickness Increase(%) |
≤10 |
| Weight Increase(%) |
≤10 |
| Thickness Deviation(mm) |
0.05 |
Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas
Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.

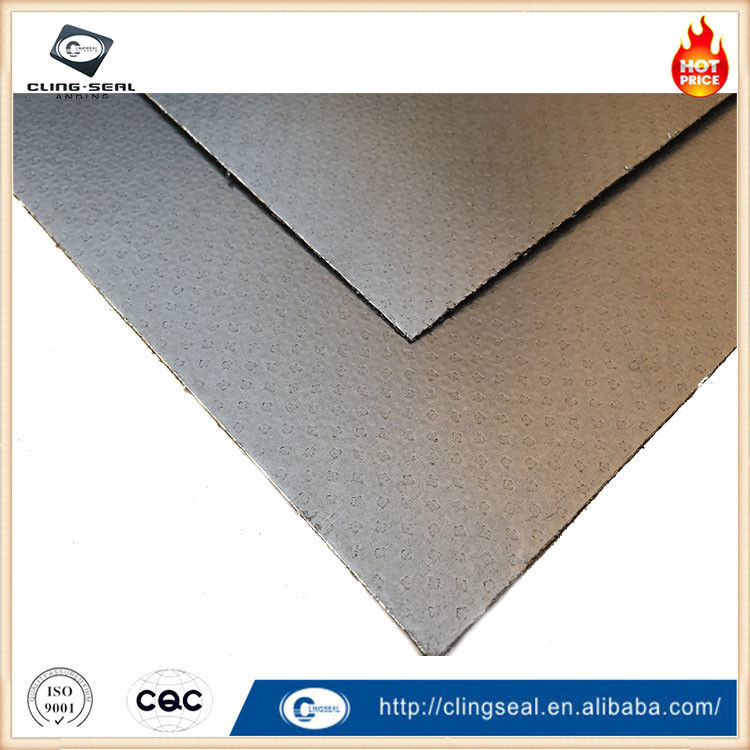

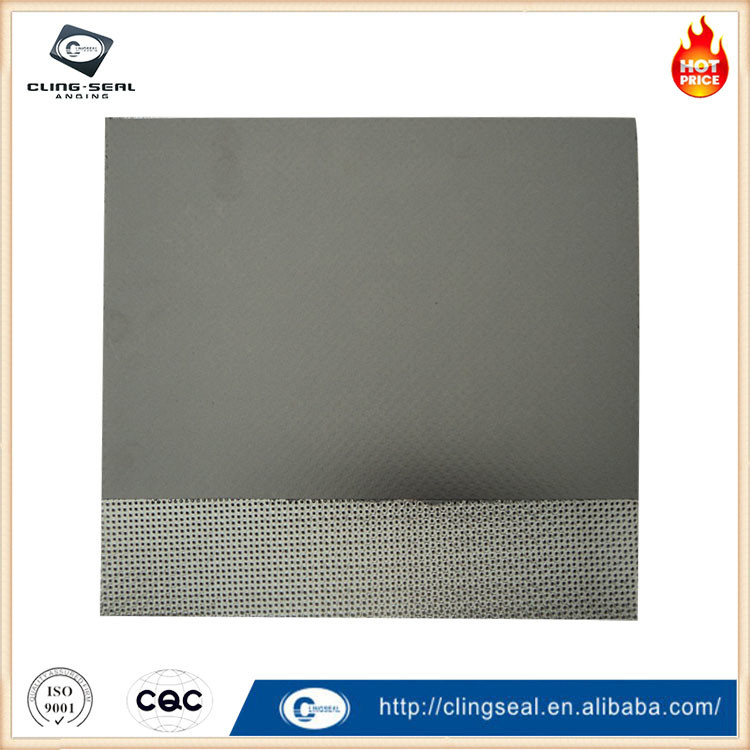

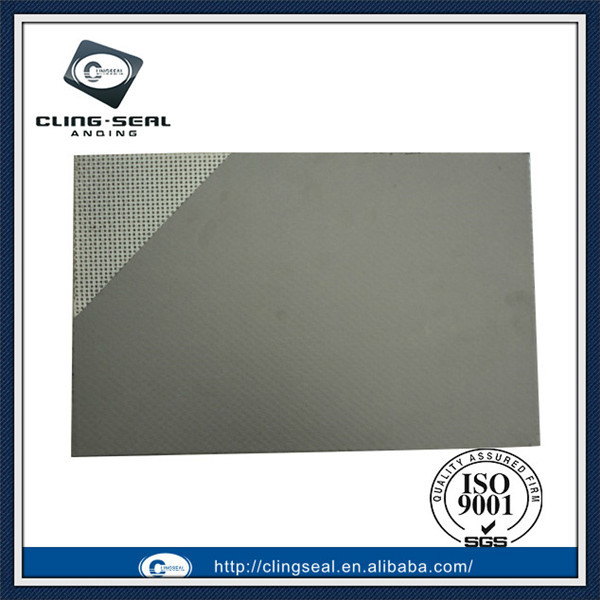

Product Shows
