Detail Information

Grade:	Industrial Grade	Type:	Flexible Sheet,Composite Sheet,Reinforced Sheet
Application:	Gaskets	C Content (%):	99.9%,99%
Thickness:	Customers' Demand,1.5MM-5.0MM	Material:	High Purity Graphtite,Graphite
Density:	1.0~1.5g/cm3	Color:	Black
Hardness:	80 Shore A	Product Name:	Graphite Sheet
Shape:	Can Be Customized	Width:	≤1500 Mm
Thickness Deviation (mm):	0.05	Compressibility (%):	10–20
Highlight:	sealing reinforced graphite sheet , sealing reinforced graphite gasket sheet , composite reinforced graphite sheet

Product Description

Reinforced Graphite Composite Gasket with Tinplate Product Description

Enhanced Sealing Performance Reinforced Graphite Gasket Sheets

Discover premium-quality Reinforced Graphite Gasket Sheets engineered for superior sealing in high-temperature, high-pressure environments. Ideal for demanding applications like steam systems, exhaust manifolds, and industrial machinery, our gasket sheets combine advanced materials and precision manufacturing to deliver unmatched reliability.

Key Features:
✅ Enhanced Sealing Performance: Combines dual-layer flexible graphite with a perforated metal insert (0.2–0.25mm carbon steel/tinplate, SS201, 304, or 316) for leak-proof integrity.
✅ Extreme Temperature & Pressure Resistance: Withstands up to 850°C and 100 bar, making it perfect for automotive, energy, and chemical industries.
✅ Durable & Cost-Effective: Non-delaminating design ensures long-term performance, reducing maintenance costs.
✅ Oil & Chemical Resilience: Resists degradation in aggressive fluids, ensuring consistent performance.

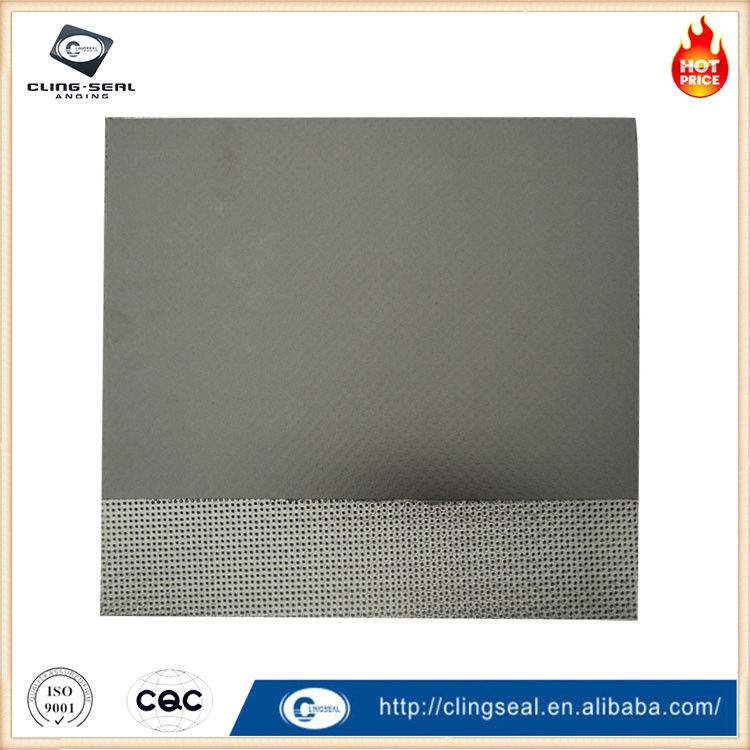

Enhanced Sealing Performance Reinforced Graphite Gasket Sheets 0

Product Specifications:

Thickness Range: 1.0–6.0mm (customizable options include 3+2 multi-layer configurations for specialized needs).
Standard Sizes: 500x500mm, 500x1000mm, 500x1500mm, 1000x1000mm, 1000x1500mm.
Carbon Content: Choose from 95%, 97%, 98%, or 99% graphite for tailored performance.

Applications:

Automotive cylinder head gaskets
Industrial exhaust systems
Valve and flange sealing
Petrochemical pipelines
Power generation equipment

Why Choose Our Reinforced Graphite Gaskets?

Custom Solutions: Need a specific size or material? Our team designs bespoke gaskets to meet exact requirements.
Technical Support: Unsure about material selection? Use our Gasket Material Selector or consult our rubber guide for expert advice.
Global Quality Assurance: Manufactured to ISO standards, ensuring consistent quality and compliance with international regulations.

Shop Now & Optimize Your Sealing Efficiency!
Don’t compromise on performance. Explore our range of Enhanced Sealing Performance Reinforced Graphite Gasket Sheets and experience reliable, long-lasting seals for your critical applications.

Physical Property:

Item		Data
Tensile Strength (MPa,min.)		≥30
Compressibility (%,)		10-20
Recovery (%)		≥35
150ºC, At IRM 903# for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
21ºC~30ºC, At B Fuel for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
Thickness Deviation(mm)		0.05

Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

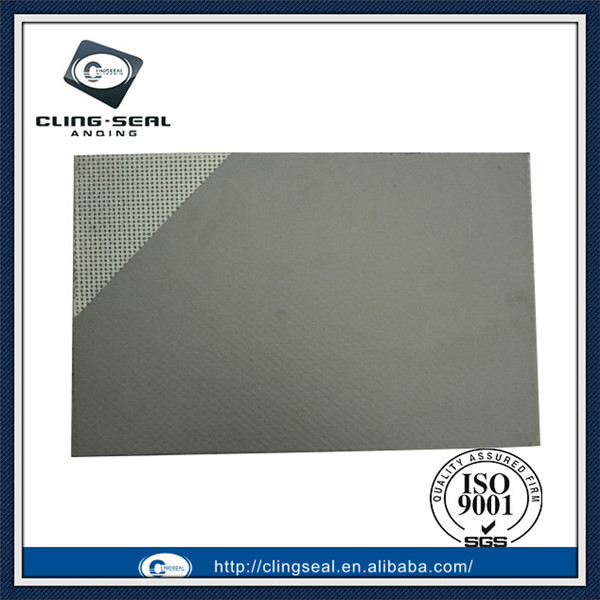

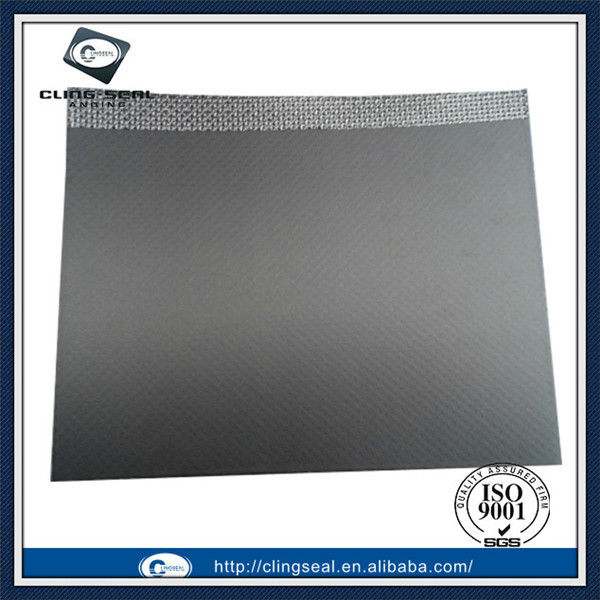

Product Shows

About Us

Tag:

Place of Origin:	CHINA
Brand Name:	CLINGSEAL
Certification:	ISO,SGS
Model Number:	CS1080T

Minimum Order Quantity:	500KGS
Price:	USD 2.15-3.0 PER KG
Packaging Details:	pallets or wooden case
Delivery Time:	1-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100Tons per month
